Paneltech PW PIR-SU polyisocyanurate wall panel with hidden joint

24 of June '24
BIM
Paneltech PW PIR-SU polyisocyanurate wall panel with hidden joint
Paneltech PW PIR-SU polyisocyanurate wall panel with hidden joint

Paneltech PW PIR-SU polyisocyanurate wall panel with hidden joint

© Paneltech

  • Paneltech PW PIR-SU polyisocyanurate wall panel with hidden joint
  • Paneltech PW PIR-SU polyisocyanurate wall panel with hidden joint
  • RSpl_23_WA_plyta_warstwowa_-_PW_PIR-SU_100_1000_H_0_5-0.5_SP25-SP25_custom-_custom_L-L_H_paneltech-2023.rvt ↓ download .rvt
  • RSpl_23_WA_plyta_warstwowa_-_PW_PIR-SU_100_1000_V_0_5-0.5_SP25-SP25_custom-_custom_L-L_V_paneltech-2023.rvt ↓ download .rvt
  • RSpl_23_WA_plyta_warstwowa_-_PW_PIR-SU_100_1050_V_0_5-0.5_SP25-SP25_custom-_custom_L-L_V_paneltech-2023.rvt ↓ download .rvt
    • Download all

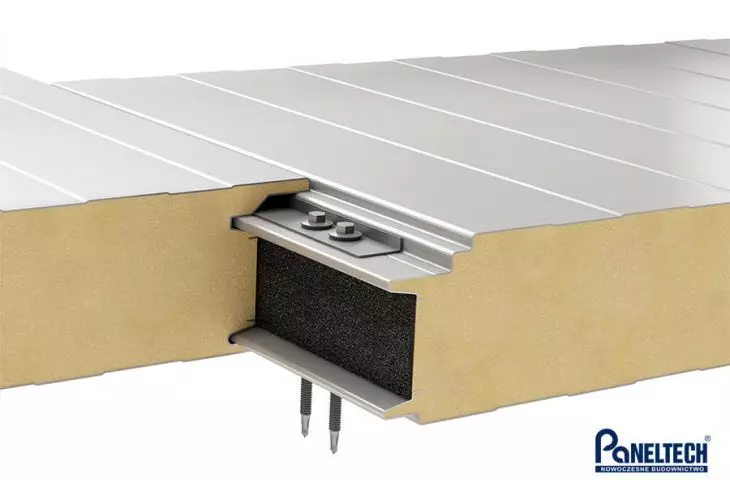

Paneltech PW PIR-SU is an innovative wall sandwich panel with a hidden joint, designed to create aesthetic exterior facades and interior partition walls in frame structures. At the core of the panel is rigid polyisocyanurate (PIR) foam with a density of 40 kg/m³, providing excellent insulation properties. The link is hidden in a suitably profiled longitudinal edge of the panel, forming a locking mechanism characteristic for this system, creating an aesthetic appearance of the facade.

application

PW PIR-SU panels are ideal for use in exterior facades and interior partition walls in single- and multi-span frame structures.

properties

Thermal insulation: PIR foam core with a density of 40 kg/m³ minimizes heat loss, increasing the energy efficiency of the building.
Durability: The high mechanical strength of the panels makes them resistant to damage and deformation.
Fire resistance: The panels increase fire safety thanks to their enhanced fire resistance parameters.
Installation: The ability to be installed vertically and horizontally allows for flexible design. Horizontal installation requires additional flashing at panel joints.

compatibility

PW PIR-SU panel is compatible with Paneltech's PWW-SU mineral wool wallboard.

PW PIR-SU panels offer an aesthetically pleasing facade finish and high technical performance, providing a versatile solution for commercial and industrial construction.

Paneltech PW PIR-SU płyta ścienna z ukrytym łącznikiem

Paneltech PW PIR-SU polyisocyanurate wall panel with hidden joint

© Paneltech

TABLE OF TECHNICAL PARAMETERS OF PW PIR-SU PANELS
thickness [mm] - weight [kg/m²] 60 - 11,1
80 - 11,8
100 - 12,6
120 - 13,4
modular width [mm] 1130 (optionally 1000 or 1050)
length [mm] 2000 ÷ 15800
heat transfer coefficient Uc [W/m²K] for a given thickness 0,42 - 6 cm
0,29 - 8 cm
0,23 - 10 cm
0,19 - 12 cm
acoustic insulation Rw [dB] 26
reaction to fire B-s1,d0
resistance to external fire NRO
wall fire rating [mm] NPD - 40, 80
EI 15(o<->i) - 100, 120
anti-corrosive protection external C1, C2, C3 (C4 ÷ C5), internal A1 (A2 ÷ A5)
organic coatings SP 25, PU, AGRO, FOOD SAFE and other
external facing galvanized steel 0.5 ÷ 0.6 mm
internal facing galvanized steel 0.4 ÷ 0.5 mm
available profilation types external facing: L - line, ML - microline, MF - microwave, MR - microgroove, G - smooth, C - carbon
inner facing: L - line, R - groove, G - smooth
insulating core rigid foam of 40 kg/m³ in total density and with enclosed PIR (polyisocyanurate) cells
application non-continuous application on external walls and as wall cladding, on the structural parts of walls and ceilings
wall application layout vertical or horizontal
