Download allVallox presents air handling units
MyVallox air handling units allow you to enjoy fresh air inside your home, based on the lifestyle and needs of the occupants. They enable intelligent operation of the ventilation system, making it fully automated and energy efficient.
Integrated humidity and carbon dioxide sensors in MyVallox air handling units make ventilation operation very easy, intuitive. The sensors monitor humidity and carbon dioxide levels in the air inside the building and provide energy-efficient control of ventilation performance as needed. Automation in the free MyVallox Cloud service records in detail all data from temperature, CO2 and humidity sensors, as well as fan speeds. Remote control of ventilation is possible at any time and from anywhere via an Internet connection. If necessary, Vallox technical support will remotely help solve any problems. The unit can be connected to a home automation system using a Modbus or KNX connection.
Full range of Vallox models in:
DWG blocks. : VALLOX POLSKA
Revit blocks: MAGICAD

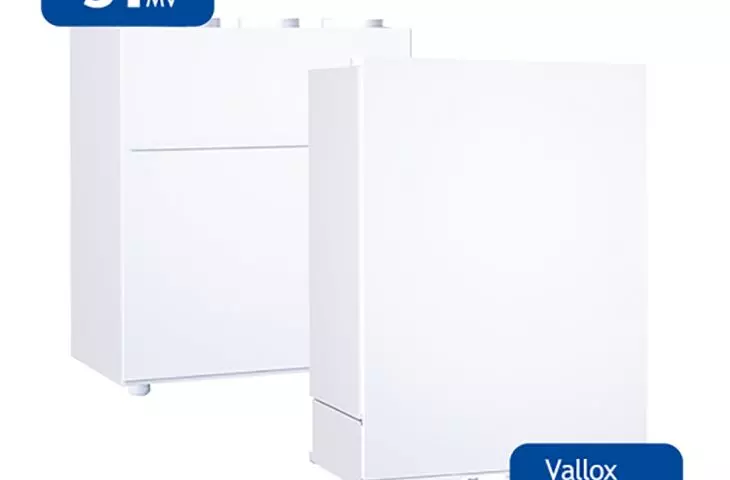

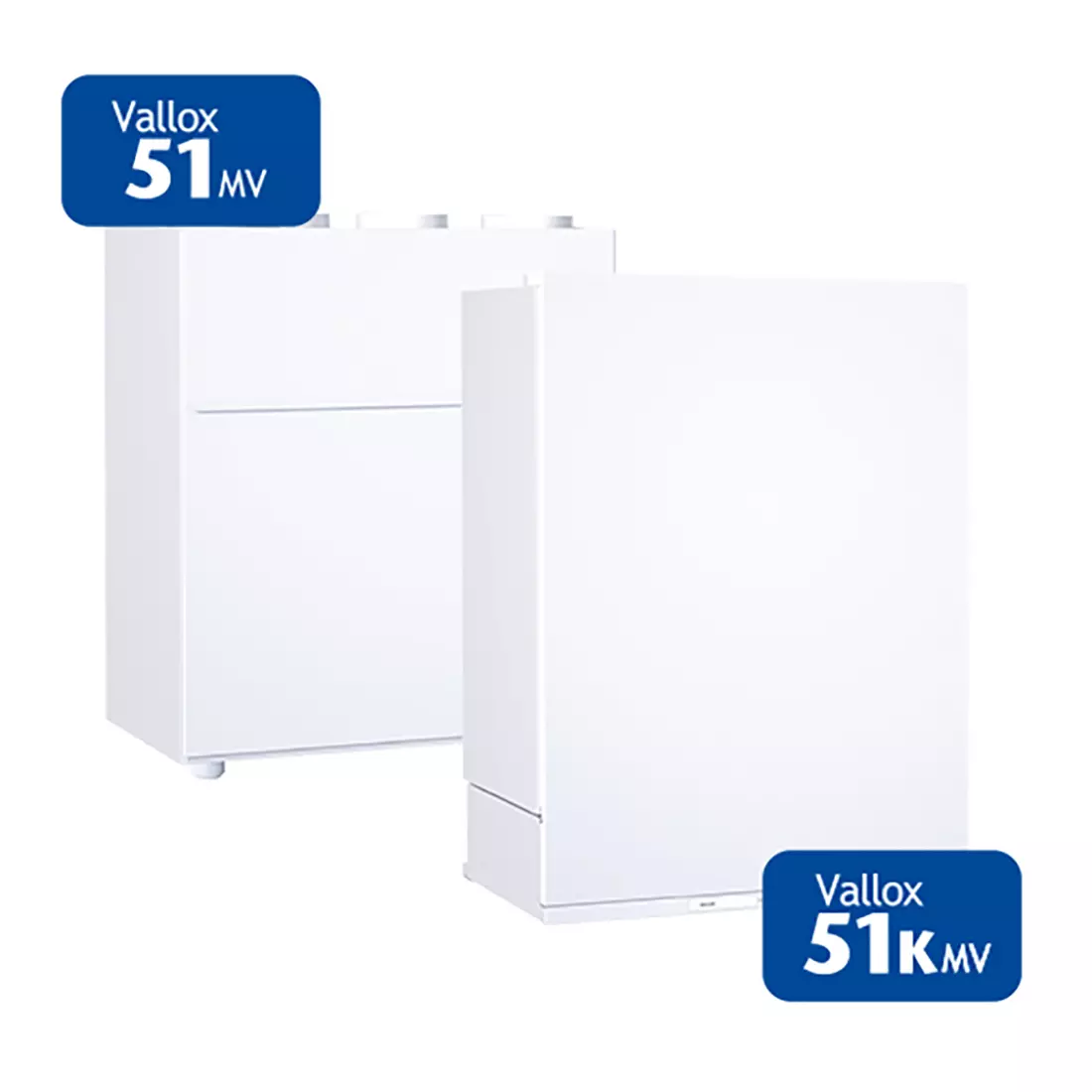

Vallox 51 MV / K MV
© VALLOX
Vallox 51 MV / K MV
Exhaust: 184m3/h_100Pa, Supply: 170m3/h_100Pa
Dimensions: 598 × 668 × 349 | 60 kg (MV), 598 × 802 × 349 | 66.2 kg (K MV)
Mounting options: wall-mounted

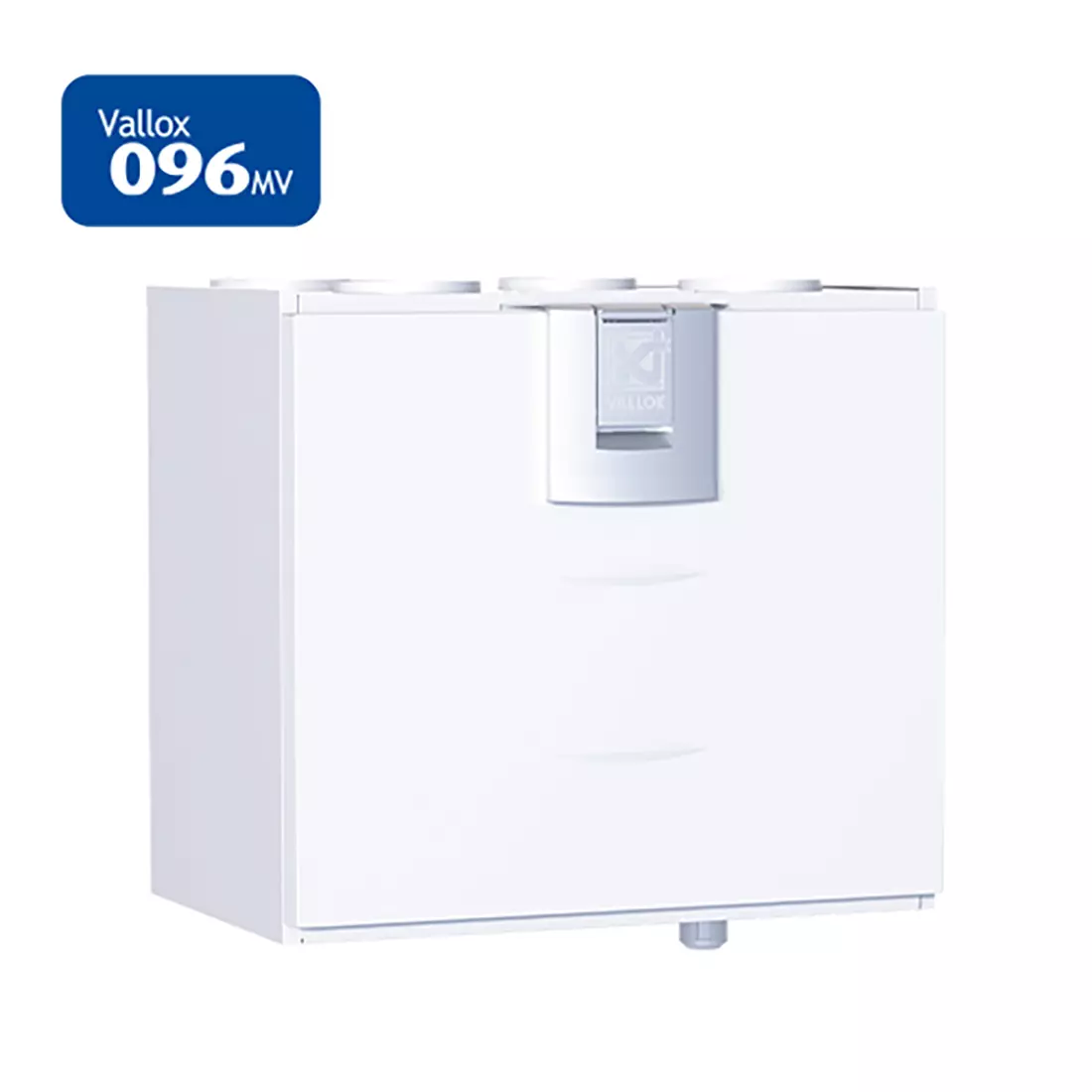

Vallox 96 MV
© VALLOX
Vallox 96 MV
Exhaust: 342m3/h_100Pa, Supply: 331m3/h_100Pa
Dimensions: 600 × 545 × 428 | 53 kg
Mounting options: wall, ceiling mounting plate (optional)
Vallox 110 MV
© VALLOX
Vallox 110 MV
Exhaust: 407m3/h_100Pa, Supply: 385m3/h_100Pa
Dimensions: 638 × 678 × 472 | 64 kg
Mounting options: wall, ceiling mounting plate (optional)

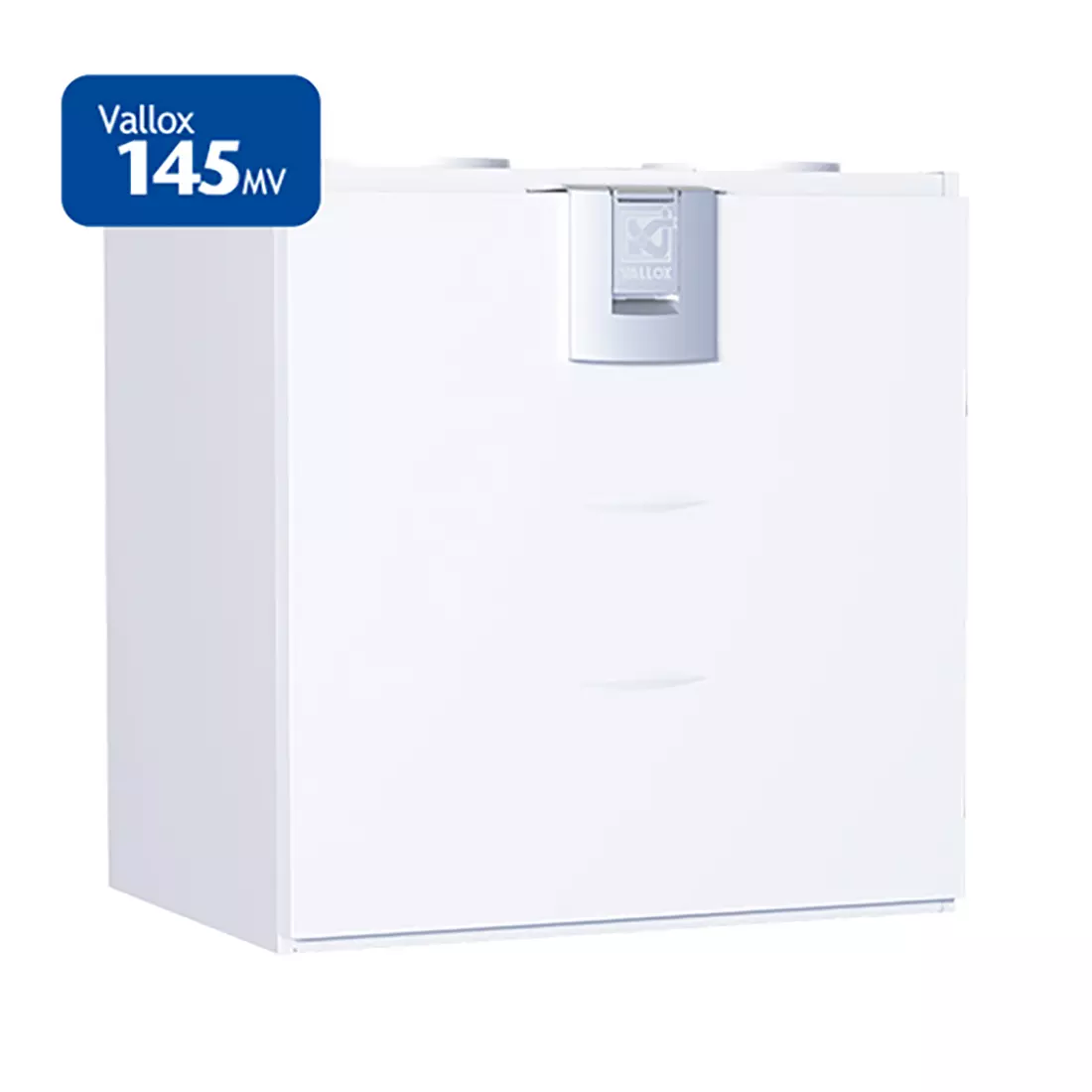

Vallox 145 MV
© VALLOX
Vallox 145 MV
Exhaust: 558m3/h_100Pa, Supply: 540m3/h_100Pa
Dimensions: 717 × 748 × 578 | 88 kg
Mounting options: wall, pedestal for floor mounting (optional)

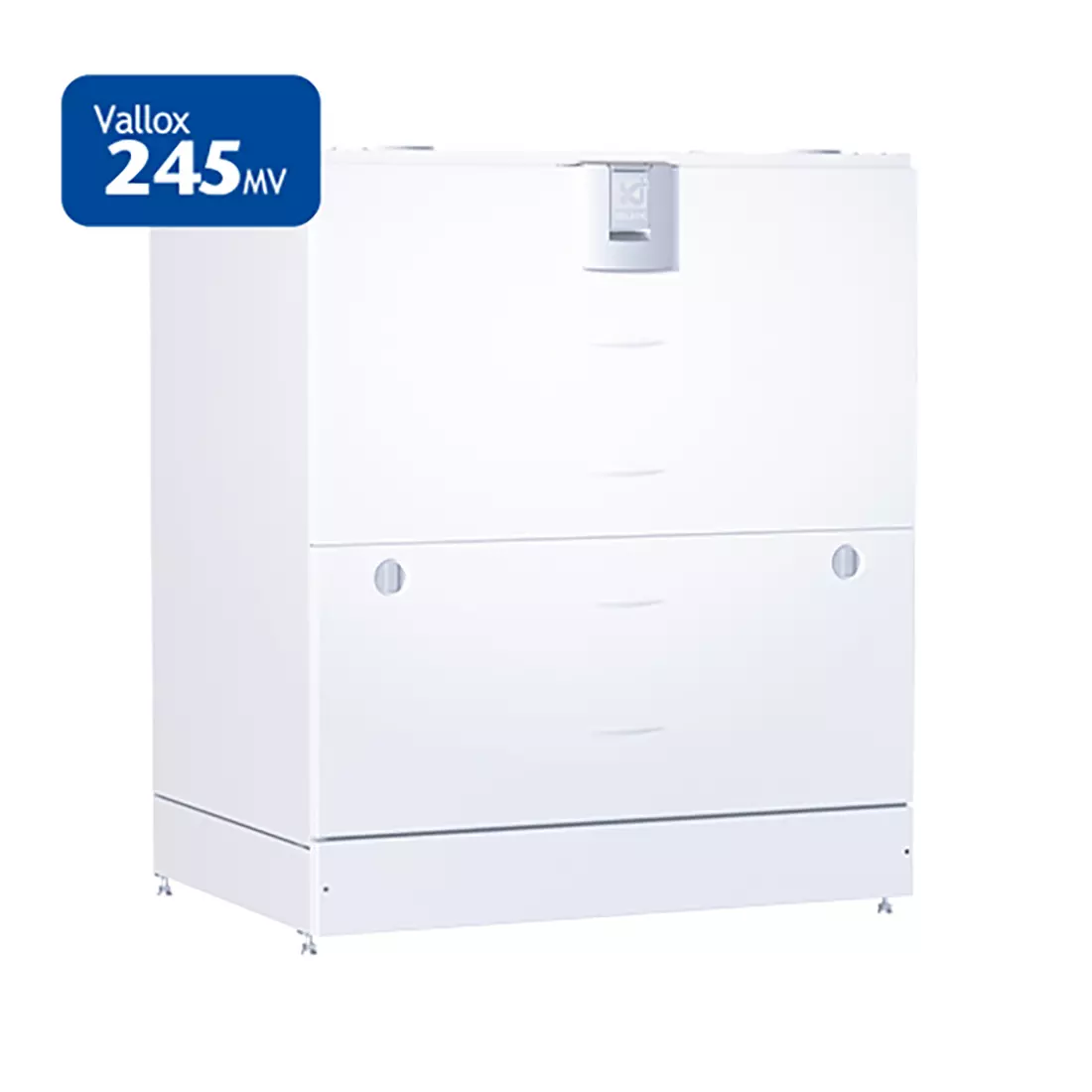

Vallox 245 MV
© VALLOX
Vallox 245 MV
Exhaust: 882m3/h_100Pa, Supply: 960m3/h_100Pa
Dimensions: 1038 × 1241 × 773 | 200 kg
Installation possibilities: floor
Vallox TSK Multi 50 MV / 80 MV
Exhaust: 882m3/h_100Pa, Supply: 960m3/h_100Pa (50 MV, 80 MV)
Dimensions: 900 × 236 × 547 | 45 kg (50 MV), 1026 × 293 × 626 | 58.5 kg (K MV)
Installation possibilities: suspended ceiling
MYVALLOX VENTILATION EQUIPMENT ALLOWS EASY CONTROL OF VENTILATION
MyVallox air handling units allow you to enjoy fresh air inside your home, based on the lifestyle and needs of the occupants. They enable intelligent operation of the ventilation system, making it automated and energy efficient.
Integrated humidity and carbon dioxide sensors in MyVallox air handling units make ventilation operation a breeze. They monitor humidity and carbon dioxide levels in the air inside the building and provide energy-efficient increases in ventilation capacity as needed.
For more information, visit the company's Vallox. Conceptair, generalny importer Vallox page on the PDA portal.
And on the official website of the Polish distributor: www.valloxpolska.pl
