Construction and principle of operation of ventilation system components - choose consciously with Alnor experts


When thinking about a ventilation system, we most often focus only on its component equipment such as fans or air handling units. In reality, a ventilation system consists of very many components, each of which plays an important role that ultimately affects the proper functioning of the installation. An efficient ventilation system is one of the key elements of any modern building, regardless of its purpose - it is just as important in apartments and public buildings as in industrial facilities. How to choose an efficient, effective and economical ventilation system for our investment?

Basic tasks of the ventilation system

Ventilation systems are designed to remove stale "polluted" air from the interior, while introducing fresh air from the outside. However, this basic principle does not fully capture the range of possible functions of modern ventilation. These include humidity control and air filtration, as well as heat recovery (recuperation). Preventing or minimizing exposure to any airborne contaminants is crucial in the context of occupational environments - especially industrial ones. We must remember that we spend almost 90% of our time indoors and the quality of the air we breathe is crucial to our comfort and health.

Kanały spiralne na magazynie

Spiral ducts in stock

© ALNOR

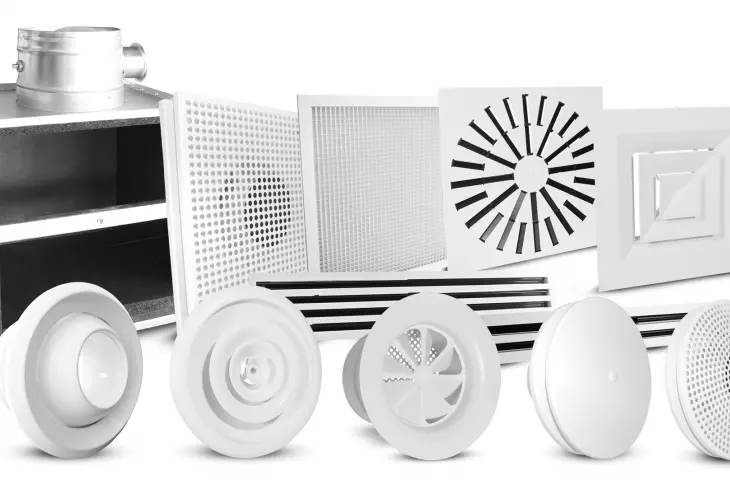

Basic ventilation system components

Of course, specific types of ventilation systems may "require" specific components responsible for their unique features and functions. For example, all components of a smoke ventilation system, that is, an installation responsible for removing hot gases and smoke from a fire area, must meet specific fire resistance criteria. Nevertheless, there are basic components that can be found in all types of ventilation systems. The following list includes some basic ventilation system components.

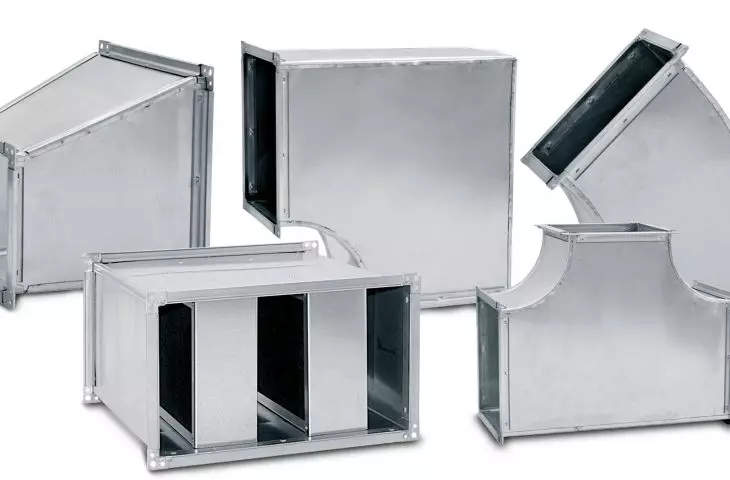

Rectangular ventilation ducts

© ALNOR

1. ventilation ducts

The ventilation ductis responsible for transporting and distributing air through the ventilation system. A network of ducts connects all other components of the system, ensuring uninterrupted flow according to the intended direction. Typical ventilation is made of galvanized sheet metal, the production of ventilation elements from acid-resistant or aluminum sheet allows them to be used in unusual places with significantly increased humidity or in places where ventilation pipes come into contact with chemical agents.

Ventilation ducts can also be divided according to their design into:

  • round spirally wound ducts, the so-called spiro
  • circular welded ducts
  • flexible flex ducts
  • semi-rigid ducts (mainly used for mechanical ventilation with heat recovery)
  • rectangular ducts.

The most common types of ducts used in residential and industrial ventilation systems are rigid spiral ducts and rectangular ducts.

Przepustnice
wentylacyjne, regulatory

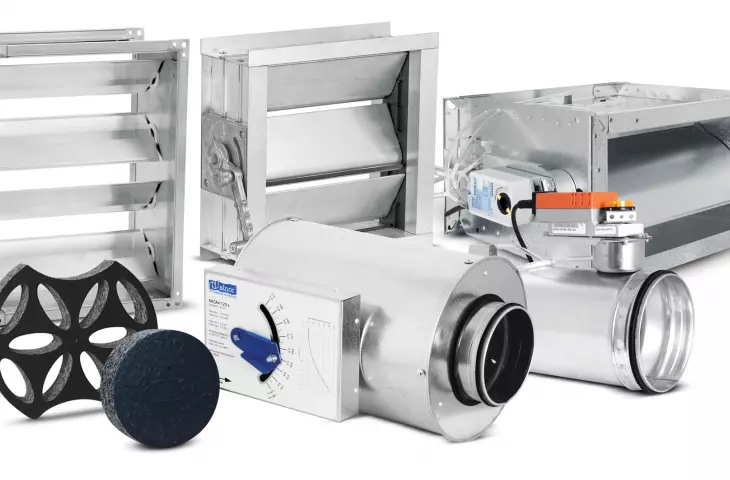

Ventilation dampers, regulators

© ALNOR

Air flow regulators

The purpose of airflow regulators is to maintain the desired airflow rates in the various branches of the system regardless of pressure changes in the ventilation ducts. This greatly simplifies the design of the entire system, but due to the noise generated as well as savings over the operating period, low pre-pressures should be sought. Flow control can take place in both supply and exhaust ducts.

Thereare several basic types of regulators:

  • constant flow regulators with a fixed setpoint;
  • air flow controllers with switching between two setpoints (V ̇min, V ̇max,);
  • constant airflow controllers with variable setpoint flow rate
  • VAV variable air flow controllers.

Zawory wentylacyjne

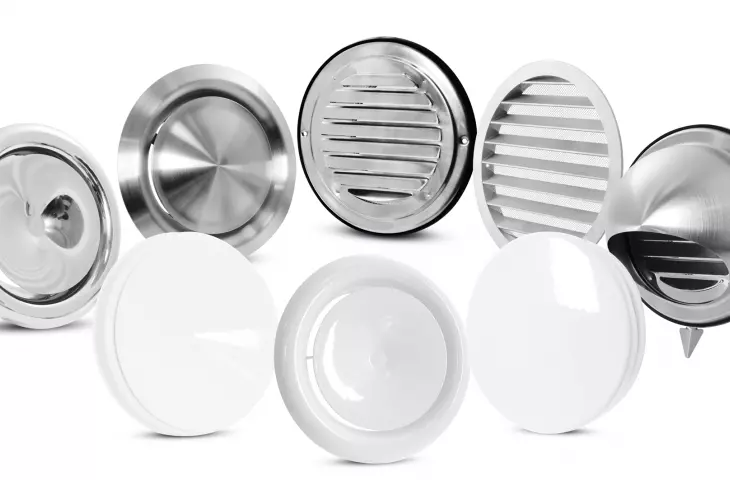

Ventilation valves

© ALNOR

3. acoustic dampers

As the name suggests, the main function of acoustic silencers is to reduce the noise generated by installations. This serves to provide acoustic comfort to the occupants. Attenuators reduce noise in ventilation ducts, created by such ventilation equipment as fans or air handling units. The flow of air in ventilation ducts can cause noise in rooms. With silencers, it is possible to maintain proper acoustic parameters in rooms - reducing noise even in rooms that require high acoustic comfort, such as bedrooms or reading rooms. Depending on the type of ducts used in the installation, attenuators with rectangular and circular cross sections are available, in addition, the offer is supplemented by flexible attenuators.

Filtry powietrza
w systemie wentylacyjnym © ALNOR

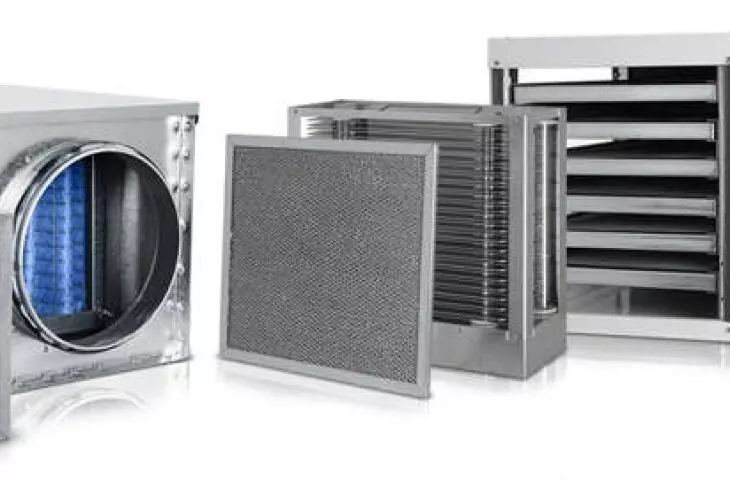

Air filters in the ventilation system

© ALNOR

4. air filters

Filters are used in ventilation systems to provide protection against impurities that can lead to malfunctions in the system and damage to individual components. Air filters also serve to ensure the quality of air of the users of the rooms to which the ventilation system is supplied. Filters are used in ventilation systems to provide protection against contaminants that can lead to malfunctions of the system and damage to individual components.

Oddymiające przewody
wentylacyjne

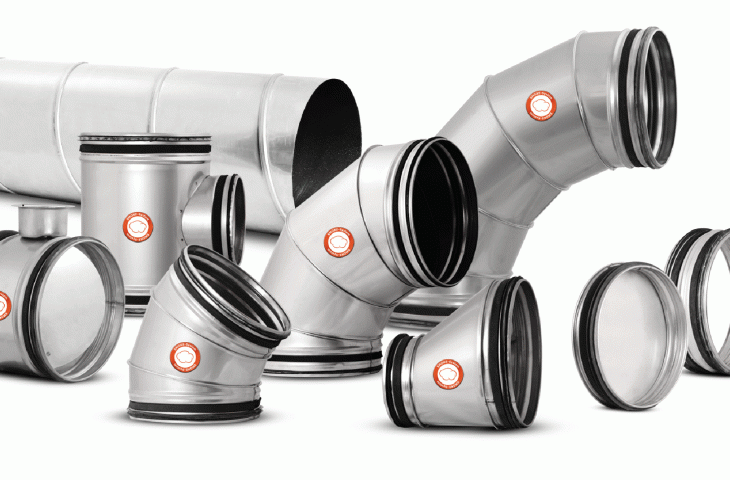

Smoke ventilation ducts

© ALNOR

5. roof components - ejectors, cowls and bases

The termination or beginning of the ventilation system is located on the walls of the building or on the roof where roof exhausts or intakes are used. These components either supply fresh air from outside (intake) or exhaust used air (exhaust) to the outside. Air intakes and ejectors acting as the termination of the installation, according to legal regulations, should also protect the inlet of the ventilation duct from wind, rain and snow.

Wyrzutnie, czerpnie
dachowe © ALNOR

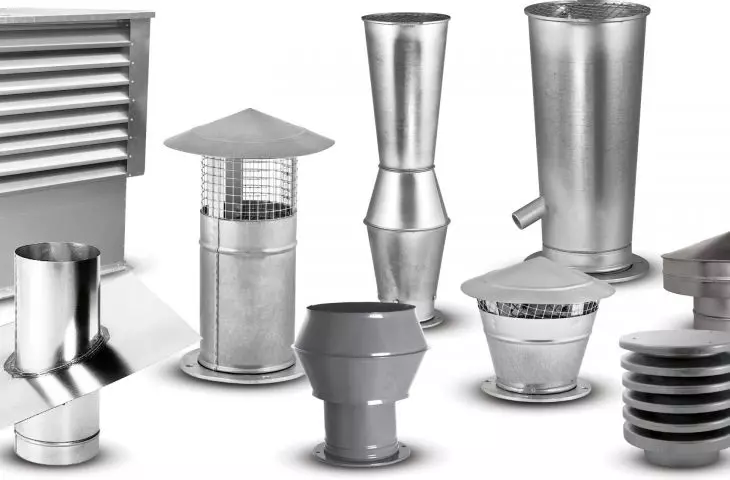

Ejectors, roof air intakes

© ALNOR

Roof cowls are mounted on top of chimneys as the termination of flue, smoke and ventilation ducts. Their use significantly improves the chimney draft and protects the ducts from adverse weather conditions. The problem of terminating ventilation flues and chimney shafts is often underestimated. However, a well-chosen chimney cap can improve the performance of a gravity ventilation system, improves the stability of the chimney draught in the fireplace, affects the constant level of air exchange in the system.

Akcesoria montażowe
wentylacyjne

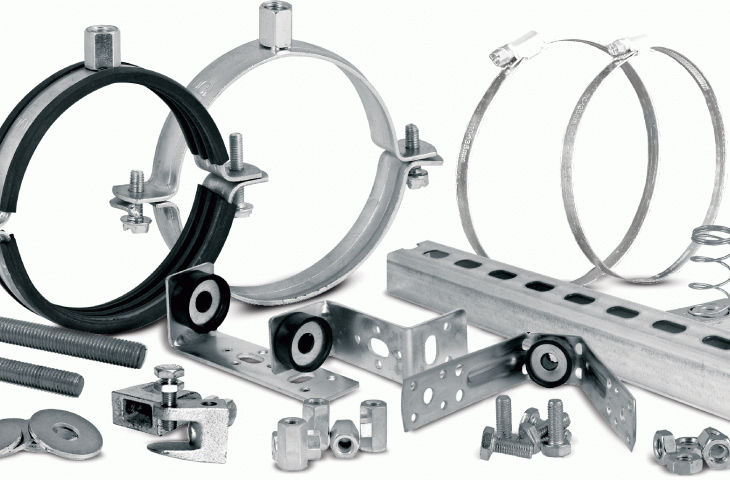

Mounting accessories

© ALNOR

Choose your ventilation system consciously

Ensuring proper air exchange in a building is not necessarily something we think about every day. However, it turns out that the ventilation system that just guarantees proper air circulation and thus high air quality is one of the most important building systems - especially if we are talking about HVAC systems in industrial or public buildings. Therefore, it is highly advisable to gain a general knowledge of its main components in order to choose a ventilation system consciously.

For more information, visit the company's ALNOR® Systemy Wentylacji page on the PdA portal.
