INFERNO - a modern system with increased thermal insulation designed for the design of lift-and-slide structures

31 of March '25

Inferno XL

...

INFERNO system is a modern solution with high thermal insulation, designed for lift-and-slide structures. Thanks to innovative technologies, such as advanced thermal separators and double gaskets, it provides excellent tightness, acoustic and thermal insulation. The system enables the realization of large glazing, offering aesthetics, functionality and a wide range of colors.

Inferno

system characteristics

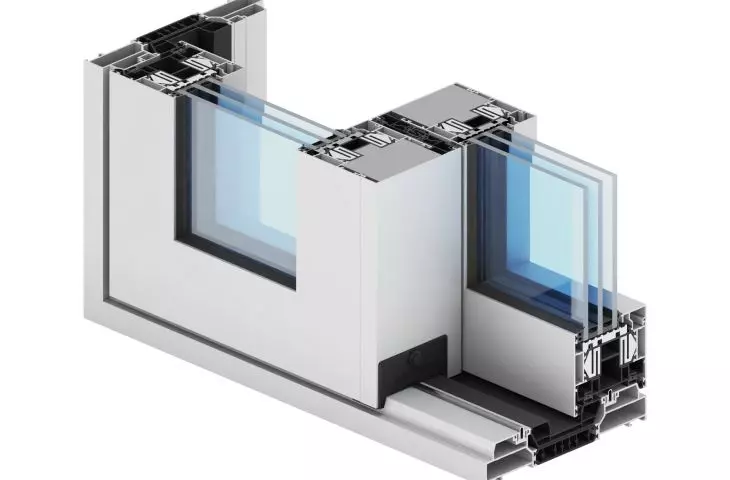

frame depth: 200 mm, sash depth is 90 mm (as an equivalent to the installation depth of the Genesis 90 window system)
profiles equipped with thermal breaks in sizes not previously used in Aliplast systems: width of thermal break in frame: 80 mm, width of thermal break in sash: 65 mm
the INFERNO system uses a unique solution of doubling the lap gaskets, improving tightness, and acoustic and thermal insulation
despite the large installation depth, the INFERNO system is characterized by great visual lightness: the visible dimension of the wing overlap is lower than in previous constructions - it is 100 mm (previous solutions: folding of the frame with 112 mm wing)
wings adapted for installation of glass packages with a thickness of up to 71 mm; their weight can reach up to 600 kg
the system uses an innovative solution of transferring the total weight of the filling directly to the hardware bogies, and from them to the running track and the frame; this allows for better operation of the sash; as a novelty, the espagnolettes in the sashes have hooks or pins masked in the sash, while on the frame there are striker strips in anode or woodwork color
it is also possible to use traditional hardware with frame strikers
INFERNO is designed as a two-track system, with the possibility of expanding the number of tracks
INFERNO Monorail solution is available (one lift-and-slide sash, the other part is glazed within the frame)

thanks to the unification of the sash depth with the Genesis 90 system, it is possible to use Genesis 90 tilt or tilt and turn window sashes in the fixed parts of the INFERNO Monorail system
glazing from the outside is also possible - friendly when using large and heavy glass, which is easier to install from the outside of the building
INFERNO system adapted to the latest requirements in the field of thermal insulation, aesthetics and safety
the possibility of using different types of filling (single, double glazing)

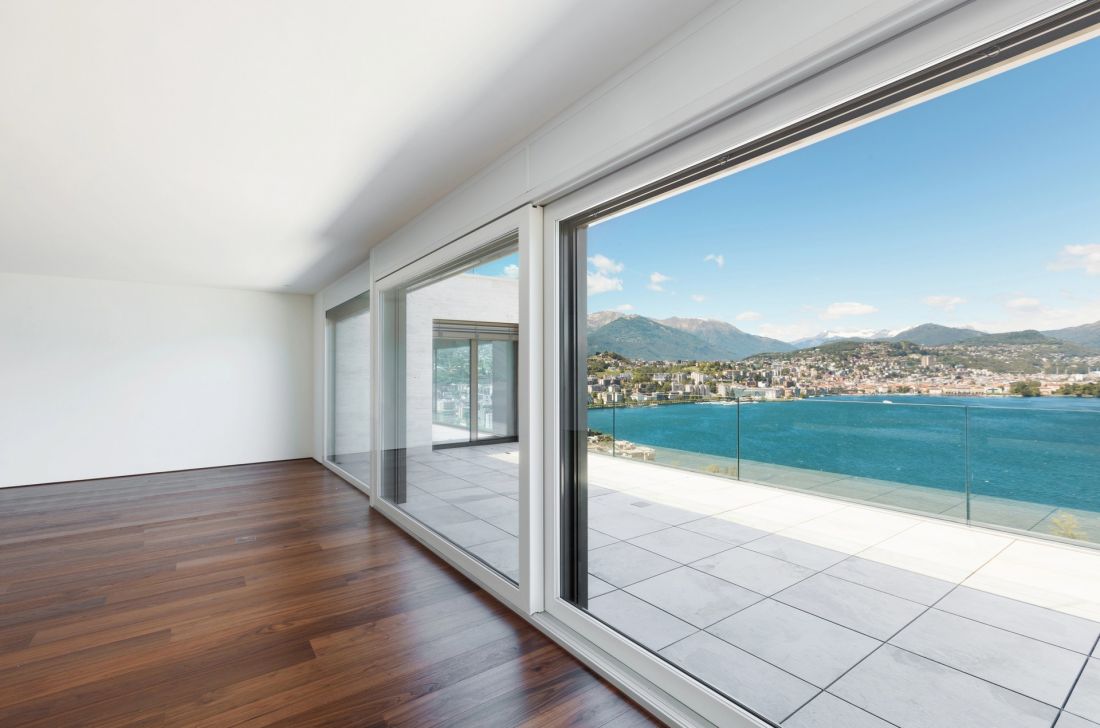

the system allows the use of large glazing, which provides excellent interior lighting and facilitates their arrangement, while maintaining the stability, functionality and lightness of the structure
maximum dimensions of the structure: sash height Hs=3000 mm and sash width Bs=3000 mm /Sobinco/.
lift-and-slide INFERNO structures are intended for use in residential buildings, mainly individual and public utility buildings
wide selection of colors - RAL palette (Qualicoat 1518), structural colors, Aliplast Wood Colour Effect - wood-like colors, Aliplast Loft View - colors imitating stone surfaces (Qualideco PL-0001), anode (Qualanod 1808), bi-color
