Building a flat roof is a process that requires precision and coordination of many steps. Traditionally, installation involves laying thermal insulation and waterproofing layers separately. But what would happen if these two key processes were combined into one? The answer is swissporBITERM - a technologically advanced "styrofoam" that is revolutionizing the approach to roof insulation.

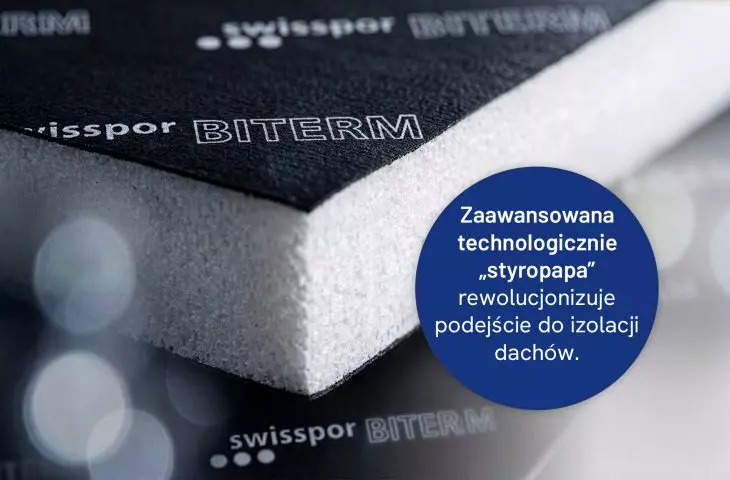

swissporBITERM offers a number of advantages for modern construction
© SWISSPOR
What exactly is swissporBITERM?
On a flat roof, each layer of the system has a specific function. The thermal insulation retains heat. The waterproofing base layer separates the Styrofoam from direct contact with moisture and protects it for the installation of further layers. Typically, these are two separate installation steps. The swisspor brand solution combines them into one.
swisspor BITERM is a layered insulation board - commonly called "styrofoam" - consisting of a core of polystyrene foam permanently bonded to a layer of thermally welded asphalt felt. The core of the board is made of polystyrene foam with a compressive stress at 10% strain of at least 80 kPa. The cladding is a weldable, underlayment asphalt membrane on glass fiber veil, factory laminated to the polystyrene surface. The joint is tensile resistant (strength ≥ 0.1 MPa), water resistant (≥ 0.1 MPa) and resistant to extreme temperatures: both +80°C and -20°C (≥ 0.1 MPa). The peel strength of the joint is at least 20 Nmm/mm. The product has a fire classification of BROOF(t1) and NRO.
The boards are produced in 1000×1000 mm format, in thicknesses from 40 to 300 mm with gradations of 10 mm. They are available with straight or milled edges and in flat or sloped versions. Paper wrapping can be single- or double-sided. Laminating with membranes with inserts other than standard glass veil is possible on request.
Energy efficiency at the highest level
swissporBITERM is not only about convenience, but above all about excellent thermal performance. Investors have a choice of two main variants to match the insulation to the energy standard of the building:
-
swissporBITERM LAMBDA 100: It uses graphite polystyrene with an excellent thermal conductivity coefficient λd=0.030 W/(m-K). It is an ideal solution for energy-efficient and passive construction.
-
swissporBITERM EPS 100: The classic variant with λd=0.036 W/(m-K).
Both variants are characterized by high load-bearing capacity, allowing evenly distributed payloads of up to 30 kPa (about 3.0 t/m²).
Application: from foundations to roof
The swissporBITERM panels are extremely versatile. They are designed to insulate:
-
Flat roofs (new and renovated) with a slope of up to 20%.
-
Substrates of various types: concrete, wood and trapezoidal metal sheets.
-
Foundations, where protection against moisture and heat escape is equally important.
Thanks to the availability of versions with straight or milled edges, as well as sloping boards, the swisspor brand system allows for precise profiling of the roof surface and effective drainage of rainwater.
Why choose swissporBITERM?
-
Saves time and labor costs - combining the thermal insulation with the felt base layer eliminates one complete installation step. The contractor lays the boards and can immediately proceed to welding the top-cover membrane.
-
Minimizes workmanship errors - factory lamination ensures that the underfelt is perfectly bonded to the Styrofoam. This eliminates the risk of incorrect layer bonding in difficult construction conditions.
-
System guarantee - swissporBITERM is part of the comprehensive swissporBIKUTOP System solution. By using the boards together with dedicated top-coat membranes from the BIKUTOP line, the investor receives a technically consistent system from a single manufacturer, which simplifies warranty procedures.
-
Ease of logistics - the 1 m² format facilitates material calculations and vertical transportation, which is crucial, especially for renovations of buildings in dense urban areas.
An investment that pays off
Choosing swissporBITERM is a strategic decision. Although at first glance it appears to be just an insulation product, in reality it is a tool for optimizing the entire construction process. By combining high mechanical strength with the excellent thermal performance of the swissporLAMBDA line, the system meets today's construction challenges: the need for speed and precision of installation and long-term durability.
For the investor, this means lower heating bills and a guarantee of an airtight roof, and for the contractor - the comfort of working with a material that eliminates the risk of errors typical of traditional, multi-layer systems. In an era of rising labor costs, reducing installation time while raising the standard of workmanship is an argument that is hard to pass by indifferently.
More information on swissporBITERM is available at: www.swisspor.pl.
