The ridge is a special point on any roof - the highest edge formed at the intersection of two slopes. It is also the section most exposed to wind and water, and at the same time the key place through which the roof "breathes". The choice of the right ridge solution has a direct impact on the durability of the entire structure, the comfort of the residents and the aesthetics of the building - for decades.
The swissporTON brand, continuing the long tradition of CREATON Polska, offers a dedicated ventilated ceramic ridge system - developed specifically for SIMPLA, KODA, TITANIA, BALANCE ceramic tiles and other models in the range. It is a solution that combines engineering precision with aesthetic consistency of the entire roofing.

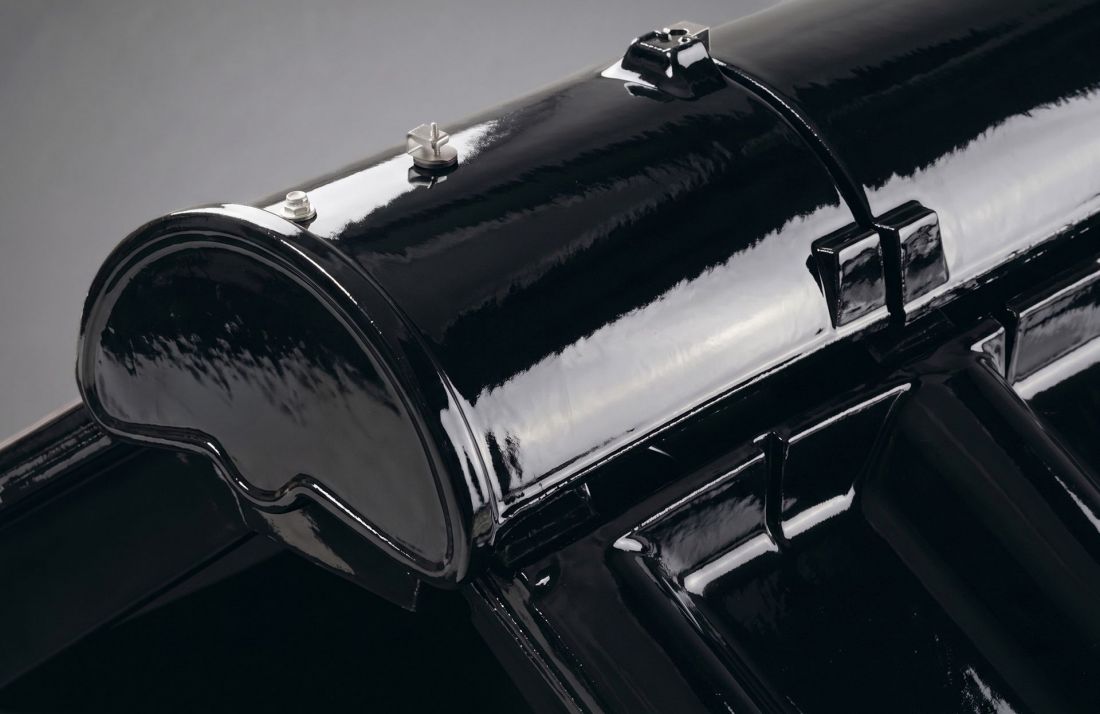

Each model of swissporTON clay roof tiles has dedicated ridge accessories, ensuring visual harmony and technical consistency
© swissporTON
Why is ridge ventilation essential?
Every home produces steam around the clock - when cooking, washing, doing the dishes and even breathing. When it gets under the roof and has no way to escape, condensation occurs. The consequences of this phenomenon are serious:
-
Mildew and fungi - developing in soggy layers pose a health risk to residents.
-
Degradation of thermal insulation - soggy wool or Styrofoam lose their insulating properties, which translates into higher heating bills.
-
Destruction of roof trusses - moisture damages structural wood, shortening the life of the entire roof.
Proper air circulation under the slope is the only effective answer to these dangers. The swissporTON ceramic ventilated ridge provides this flow reliably and permanently - without the need for additional components or regular maintenance.

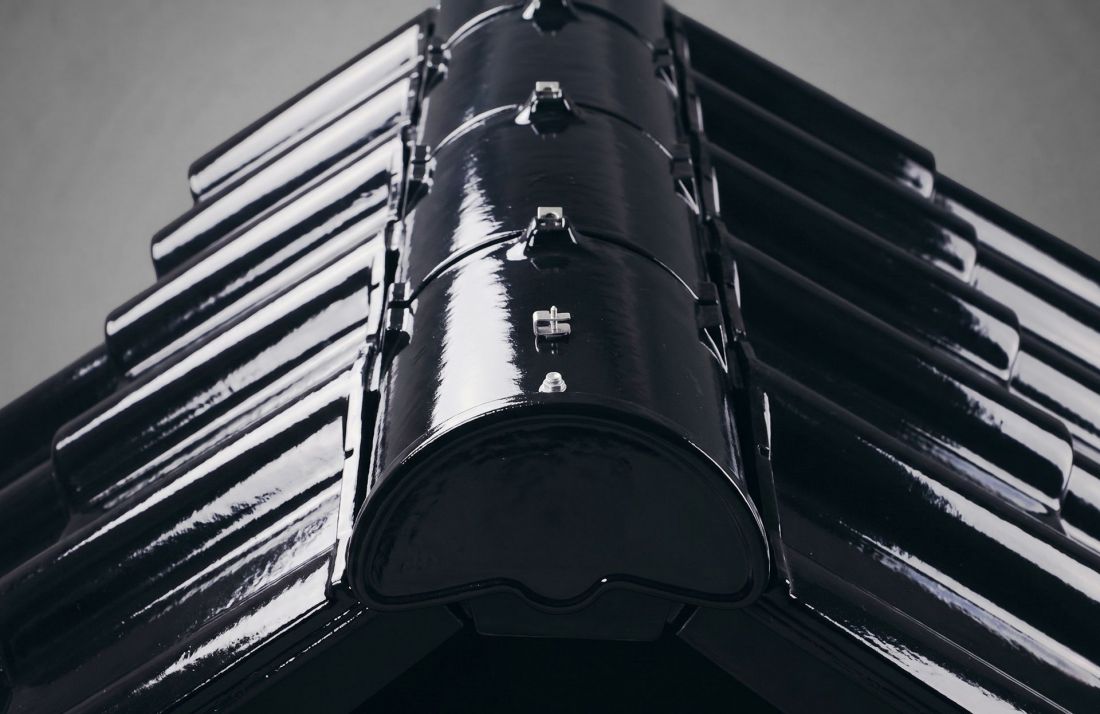

The ridge clamps in the swissporTON system guarantee corrosion resistance for generations, providing secure fastening and peace of mind for years to come
© swissporTON
System construction - ceramic from start to finish
The swissporTON ventilated ridge tilesystem consists of several precisely designed components that form a coherent, all-ceramic whole:
-
Ventilated ridge tile - the main component of the system, responsible for venting air.
-
Side ventilation ridge tile - the outermost element, providing ventilation and airtightness at the ridge ends.
-
Basic ridge tile - the ceramic finial of the structure.
-
Initial/final ceramicridgecap - ridge closure on roof gables.
-
Patented fastening system - stainless steel ridge brackets, mounting wires and clamping sets.
All ceramic components of the system are consistent in color and texture with the roof tiles - each model(SIMPLA, KODA, TITANIA, BALANCE or RAPIDO) has a ridge solution dedicated to it. The ridge does not contrast with the roof - it forms a unified, elegant whole with it.

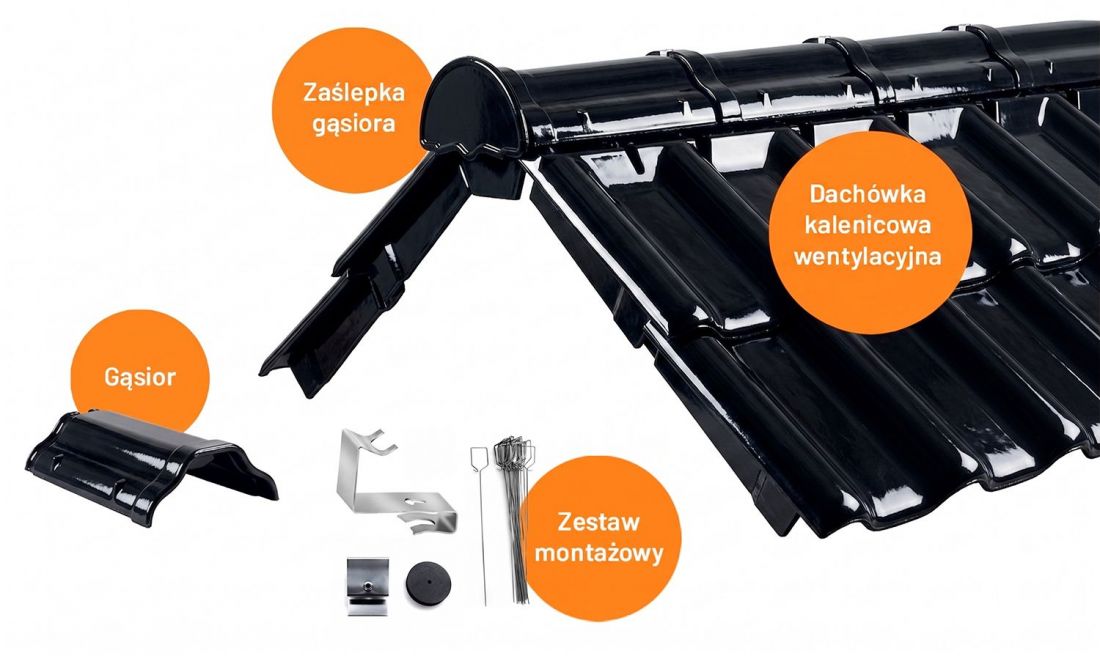

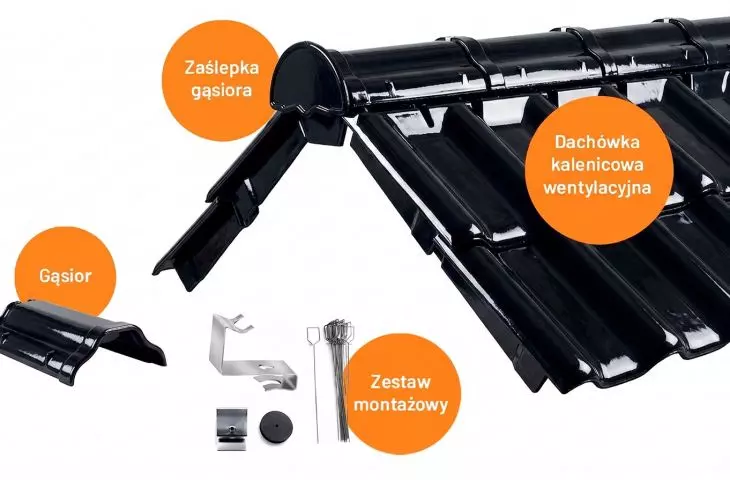

Precisely designed components of the swissporTON ventilated ridge system guarantee effective ventilation and protection against external conditions
© swissporTON
Ridge installation system - "dry" without compromise
The ridge tiles in the swissporTON ventilated ridge system are fixed using the "dry" method, using a patented system. This is a solution that brings tangible benefits for both the investor and the contractor. The system does not require the use of a ridge batten, additional sealing strips, brackets.
What does this mean in practice? Faster and simpler installation - no need to fit additional elements. The mounting wires are attached alternately to the last roof batten, at approximately 42 cm intervals, and the ridge tiles are slid over each other in sequence and fastened with stainless steel brackets. The initial and final ridge tiles are additionally secured with a clamping set with a seal.
The stainless steel clamps guarantee corrosion resistance for decades of use. The ventilated ridge connection tile is the perfect ceramic finial of the entire system. The spoiler built into the design of the ridge tiles further reduces the force of wind, increasing the ridge's resistance to extreme weather conditions.
Technical parameters - concrete numbers, concrete protection
The swissporTON ceramic ventilated ridge is not a declaration, but measurable parameters:
-
Air outletcross-sectionalarea : up to 230 cm² per 1 mb of ridge - a value in accordance with DIN 4108.
-
Effective ventilation at rafter lengths of up to 23 m - DIN 4108 confirms that this cross section is sufficient for typical Polish roofs.
-
Effective protection against water - both at high and low slope angles. Water does not penetrate under the covering even in high winds.
A ventilated ridge takes advantage of the natural thermal draft: cooler air enters through intake vents at the eaves, heats up and is exhausted through ventilation slots in the ridge. The difference in level between the eaves and the ridge, the action of the wind and the heating of the roof all promote natural circulation without any mechanical devices.

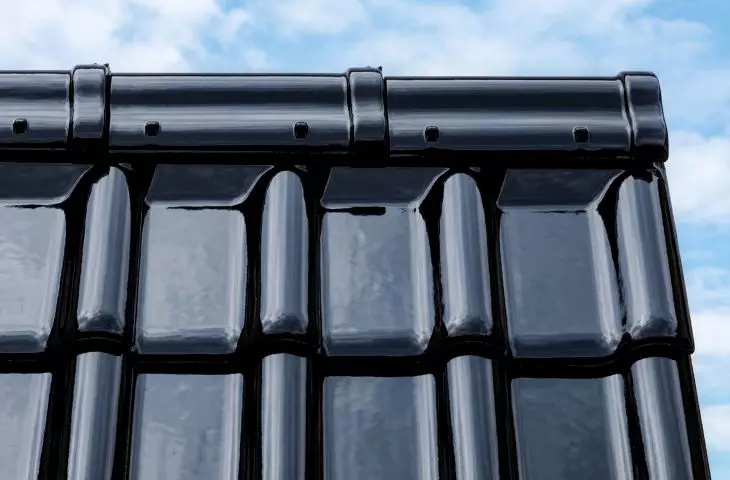

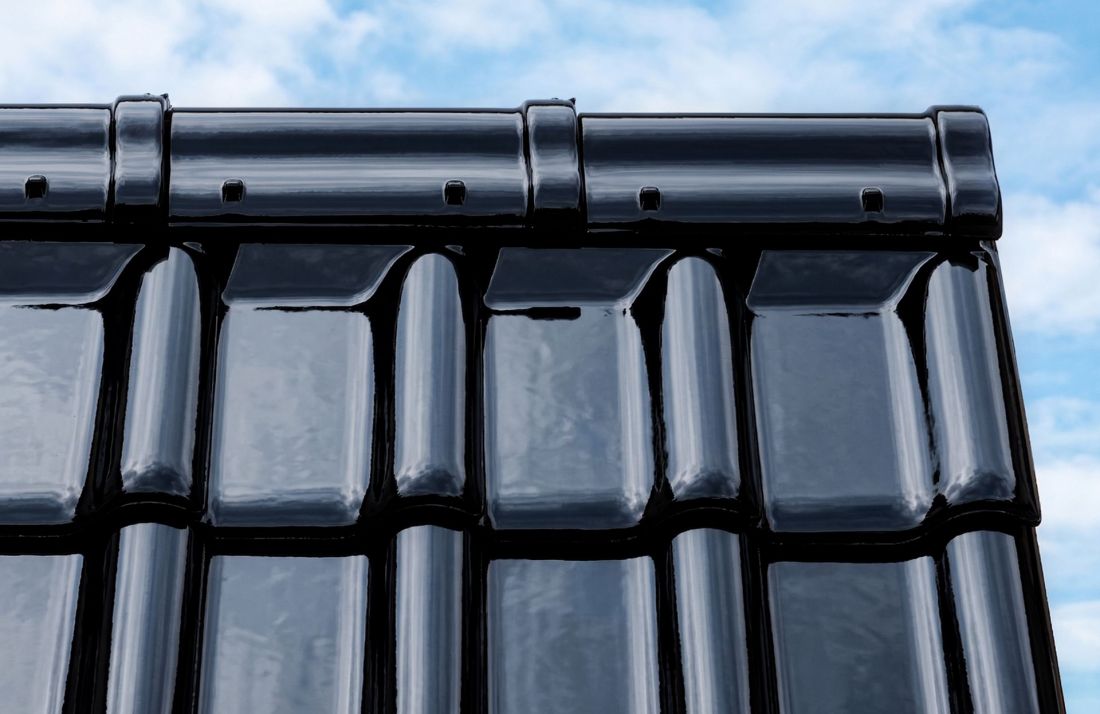

Consistent in color and texture with slope tiles, swissporTON ridge solutions
© swissporTON
Premium-level aesthetics
The swissporTON ceramic ventilated ridge is not only a functional part of the roof - it is also a showpiece for the house. The ridge elements are available in the same color palette as the basic tiles of each model. As a result, the ridge creates a harmonious, elegant line crowning the building - horizontal and clear, visible from a distance.
For SIMPLA (modern, flat) or TITANIA (timeless, elegant) tiles, the dedicated ridge elements preserve the minimalist, contemporary character of the covering. No color dissonance - just a consistent, thoughtful detail that demonstrates the class of the entire investment.
An investment that pays for itself
The cost of professional ridge accessories is a small fraction of the total value of the roof. Meanwhile, their impact on the quality and durability of the roofing is disproportionately large. A roof without proper ridge ventilation is exposed to:
-
costly repairs to the rafter after it becomes damp,
-
replacement of damaged thermal insulation,
-
health problems of householders related to mold.
By using the swissporTON ceramic ventilated ridge, the investor extends the life of the entire roofing and eliminates the need for costly maintenance work in the future. The roof thus achieves both high functional and economic value, especially when the house is built for generations.

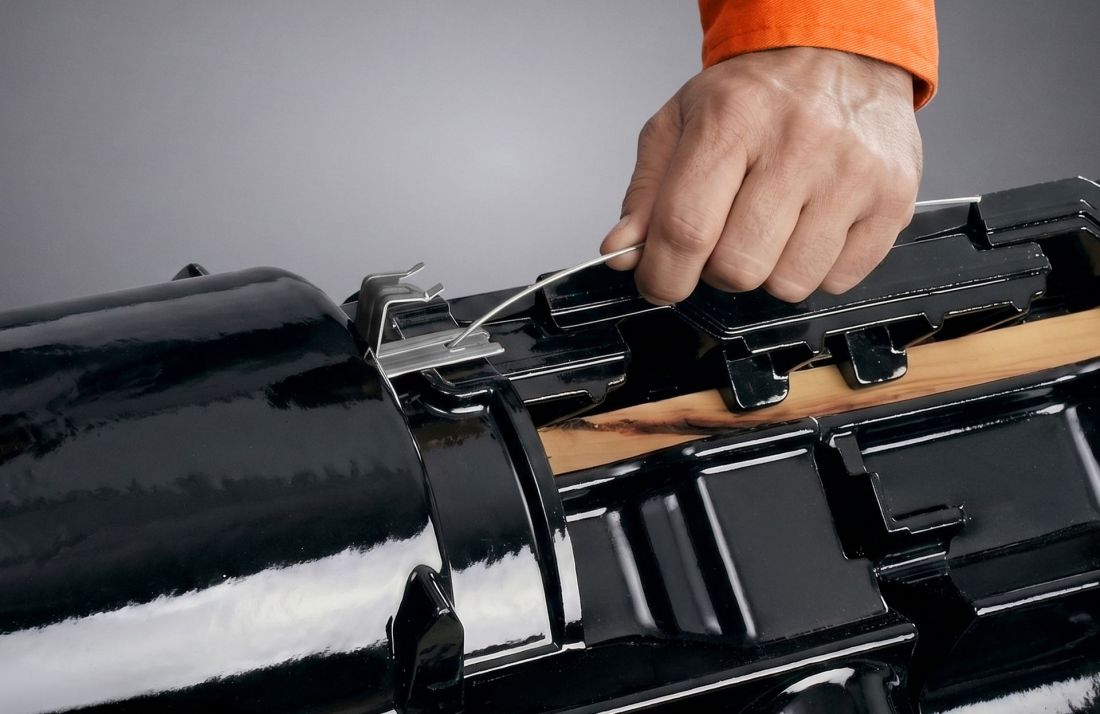

The swissporTON system eliminates the need for a traditional ridge batten - the ridge tiles are securely fastened with clamps and secured with mounting wires directly to the roof structure
© swissporTON
A complete roof system - no link can be weak
swissporTON emphasizes the philosophy of a complete system: the best ceramic tile will not protect your investment if the ridge is defective. The ceramic ventilated ridge is the element that closes the system and makes the roof work as a unified, tight and durable whole.
Each model in the range - among others: SIMPLA, KODA, TITANIA, BALANCE or RAPIDO - comes with dedicated ridge accessories, developed and tested in tandem with the specific tile. It's a guarantee that the whole thing works as swissporTON engineers designed it.
The swissporTON ceramic ventilated ridge - detailed information, technical documentation and installation instructions can be found at swissporTON.pl. A network of advisors at swissporTON product sales outlets is available to help you choose the right solution.
