Paged DryGuard FR: The new standard in fire- and weather-resistant plywood

15 of November '24
Paged DryGuard FR
Paged DryGuard FR
Paged DryGuard FR
Paged DryGuard FR
Paged DryGuard FR
Paged DryGuard FR
Ewelina Depczynska - R&D Director and President of Paged LabTech

Paged DryGuard FR

© Paged

  • Paged DryGuard FR
  • Paged DryGuard FR
  • Paged DryGuard FR
  • Paged DryGuard FR
...
Show more +3

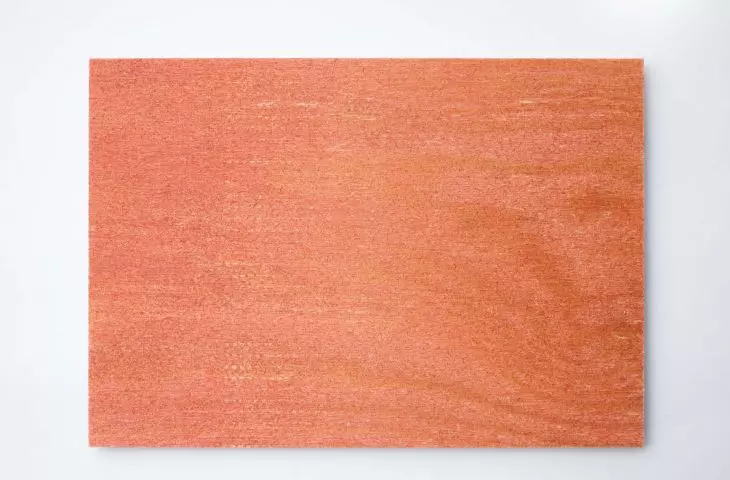

Paged is launching Paged DryGuard FR, a unique innovative plywood that represents a breakthrough in the building construction industry by combining advanced fire and moisture protection. The product responds to the needs of customers designing and building in areas of high humidity, and those carrying out public utility projects that require the highest safety standards, among others.

Paged DryGuard FR is a globally unique construction solution based on cutting-edge technology developed by the Paged LabTech R&D team and the Paged Morąg technology and operations teams.

Paged DryGuard FR

Paged DryGuard FR

© PAGED

DryGuard FR plywood is the result of Paged's many years of experience in the production of non-combustible plywood, as well as the research and work of our specialists who have been dedicated to bringing fire- and moisture-resistant plywood to the market. This is a plywood that provides safety without compromise. To our knowledge, Paged is the only plywood manufacturer in the world to have developed, certified and introduced such a unique and market-demanded solution.

- emphasizes Ewelina Depczynska, R&D Director and President of Paged LabTech.

Paged DryGuard FR stands for safety, durability and versatility in construction applications. We are convinced that it will become a new standard in the industry.

- Depczynska adds.

Paged DryGuard FR

Paged DryGuard FR

© PAGED

Key applications

Paged DryGuard FR was designed for:

  • public buildings, such as schools, hotels, shopping centers, hospitals, airports or subway stations,

  • commercial construction, including warehouses, production halls and data centers,

  • residential construction, such as apartment houses, modular and mobile homes, and bungalows,

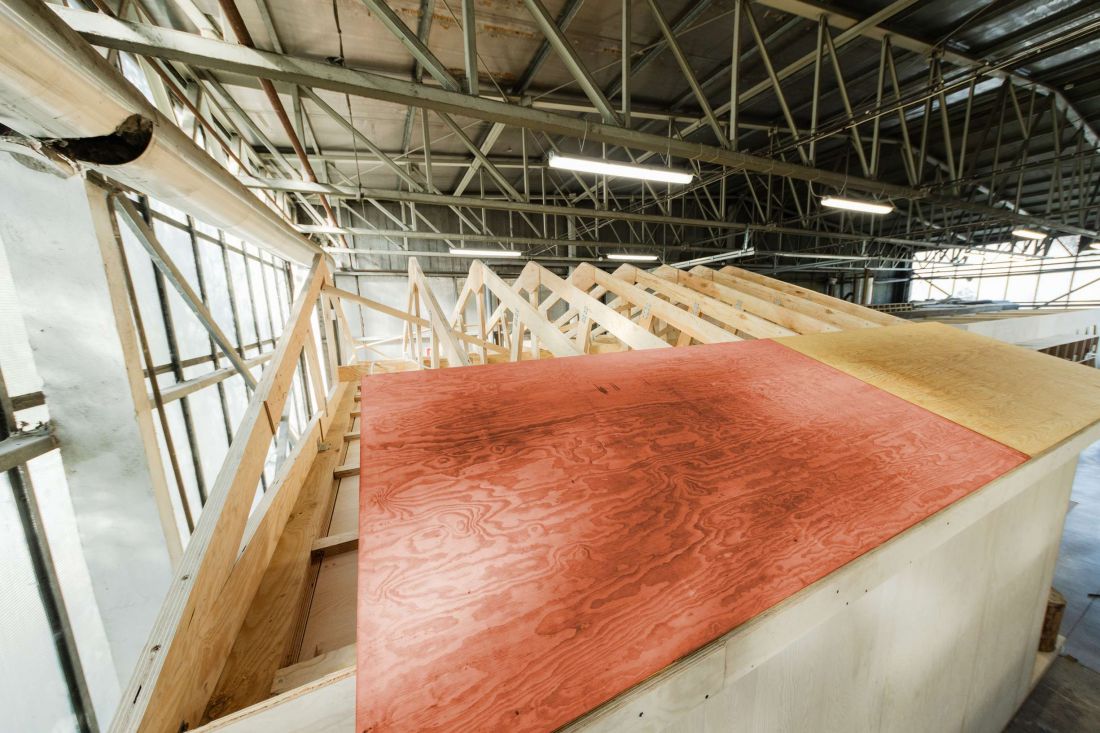

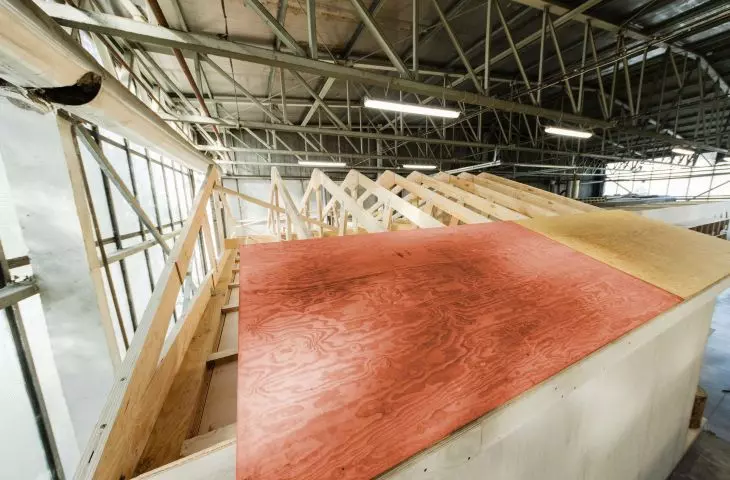

  • wooden structures, as wall and ceiling panels (CE1).

Paged DryGuard FR

Paged DryGuard FR

© PAGED

Key features of Paged DryGuard FR:

  • Water resistance: The plywood has a hydrophobic coating that minimizes moisture absorption (EN 927-5). It does not require additional protection from rain, which reduces costs and speeds up projects.

  • Fire resistance: It has the highest class of fire reaction for wood B-s1, d0 (EN 13501-1), which guarantees safety in public and commercial spaces.

  • Mold protection: The coating effectively protects against fungus growth, which promotes a healthy environment for use (EN 927-3).

  • UV protection: The coating provides enhanced UV protection (EN 927-6). As a result, surface cracking is less than with raw plywood. In addition, DryGuard FR's signature red color does not fade, reducing the risk of confusion when using several types of plywood on a construction site.

  • Lightweight and Durable: Made from pine wood, Paged DryGuard FR is extremely lightweight, making it easy to install, while also having high structural strength.

  • Ease of Design: The new plywood has undergone specialized testing of the strength and stiffness of roof and floor sheathing at the Lukasiewicz Research Network - Wood Technology Institute, confirming its suitability for structural applications.

  • Certificate of constancy of performance: The product has been certified by an independent notified body (System for Assessment and Verification of Constancy of Performance AVCP 1).

  • Ecology: The plywood is made of certified wood from sustainable forests in the Baltic Sea region (FSC, PEFC). Low formaldehyde and VOC emissions make the product environmentally friendly. It has a Type III Environmental Product Declaration (EPD).

  • Vapor permeability: the plywood has low diffusion resistance, allowing water vapor to pass through.

Paged DryGuard FR

Paged DryGuard FR

© PAGED

Installation options and additional features:

Paged DryGuard FR is an easy to install product:

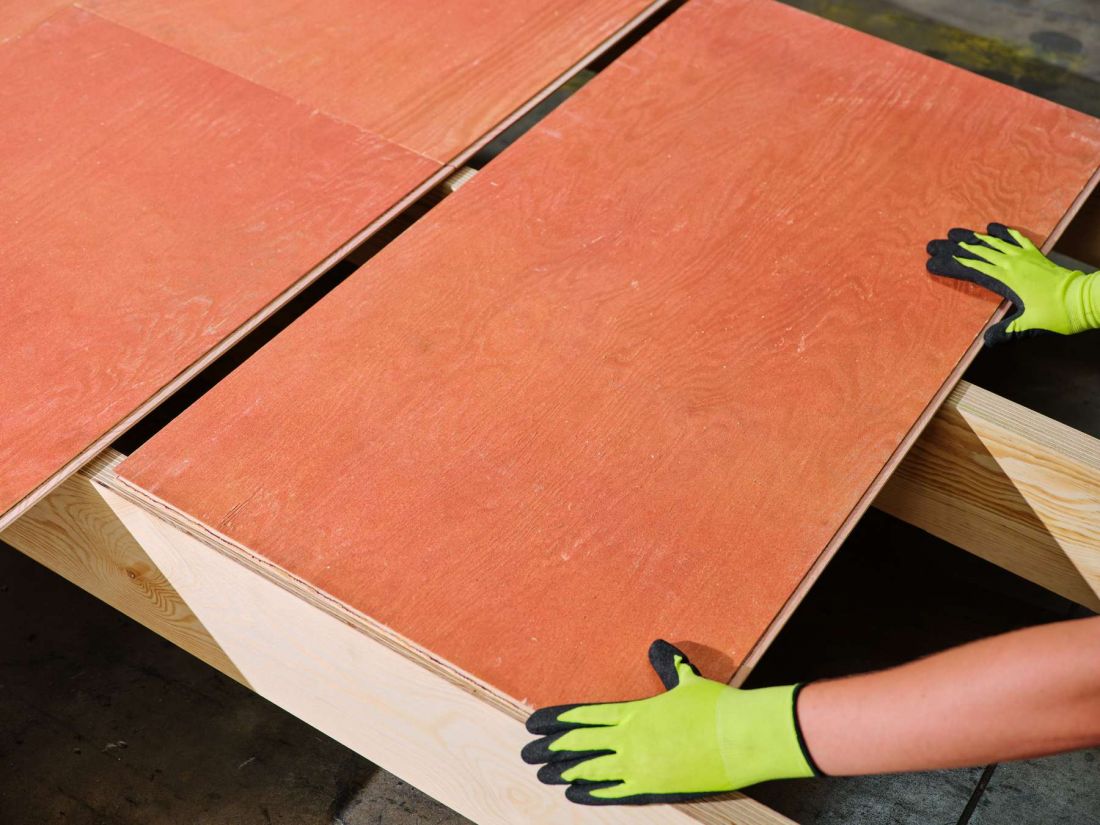

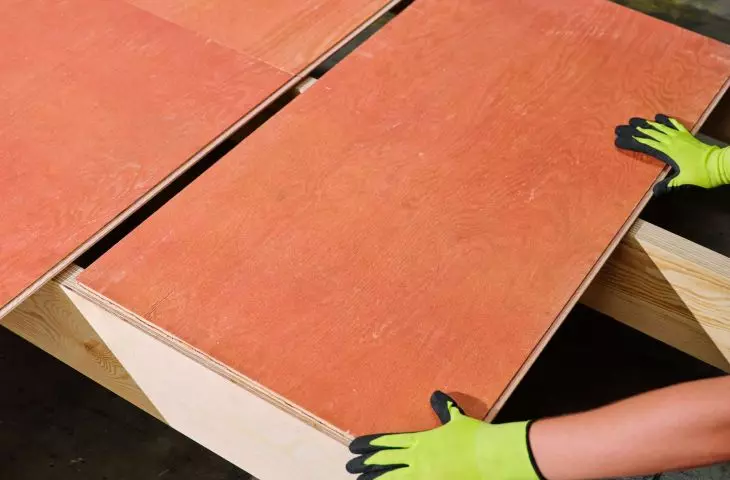

  • Tongue-and-groove (T&G) jointing makes installation easier and faster, and ensures structural stability by allowing panels to be laid into a uniform surface, eliminating the "keyboarding" effect.

  • CNC cutting and machining enable precise adjustment of formats and shapes to project requirements, making integration much easier.

Ewelina Depczyńska - Dyrektorka R&D oraz Prezeska Paged LabTech

Ewelina Depczyńska - R&D Director and President of Paged LabTech

© PAGED

Learn more about Paged DryGuard FR during the Paged Plywood Academy webinar with Ewelina Depczyńska and Joanna Niedźwiecka of Paged LabTech and Kuba Szczęsny on November 21 at 10:00 a.m. Link to register: https://paged.clickmeeting.com/paged-plywood-academy-paged-dryguard-fr/register

You are cordially invited!
