Trim strips for "light-wet" building insulation systems

Bella Plast has been a leader in the production of trims and finishing profiles for thermal insulation systems for more than 25 years.

Comprehensive finishing of each edge of the facade

Bella Plast finishing profiles ensure technically correct termination and fusion of the layers of the system where there is an edge, i.e. an area within which all layers of the system: thermal facing, glass mesh, adhesive and plaster terminate. The profile is designed to securely bond these layers together without the possibility of delamination in the future. Therefore, it is worth taking care of the proper selection of profiles and thus ensure the durability of the thermal insulation facade for many years and increase its aesthetic and design qualities.

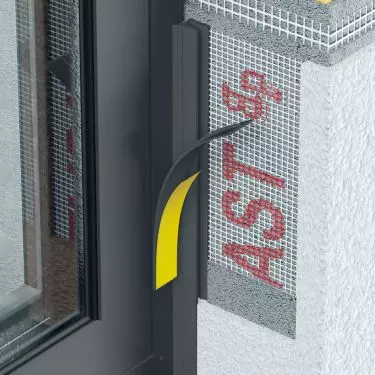

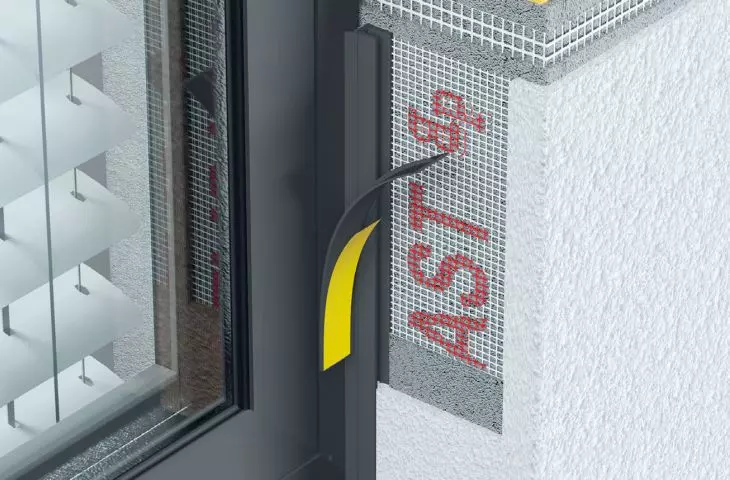

BP13 MIDI listwa dylatacyjna przyokienna PVC kolor ciemny szary RAL7024

BP13 MIDI PVC window expansion joint strip dark gray RAL7024 color

© Bella Plast

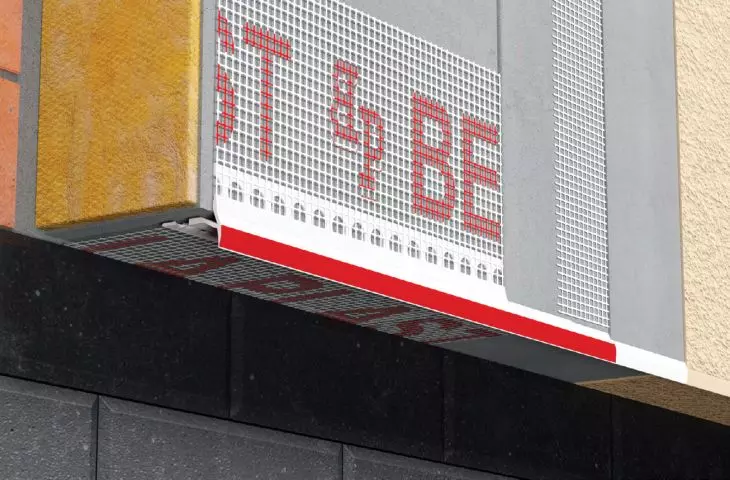

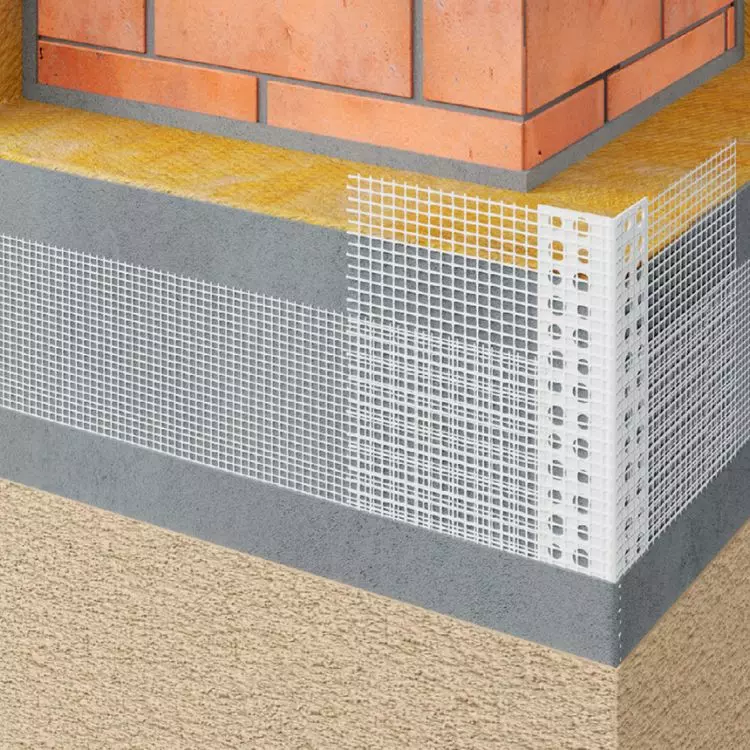

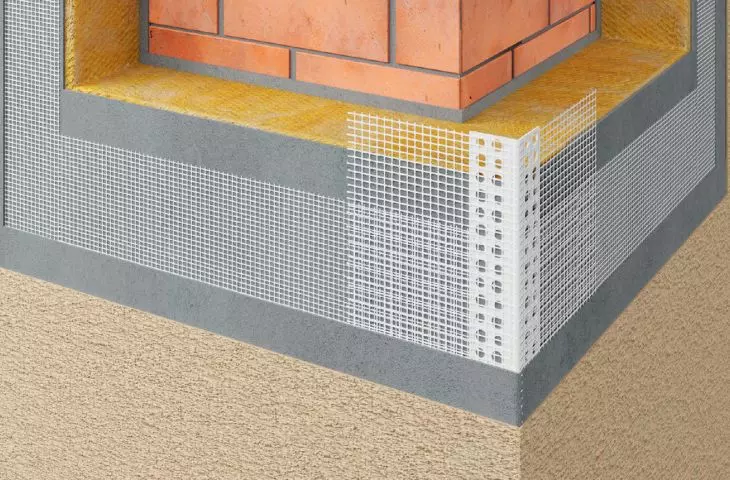

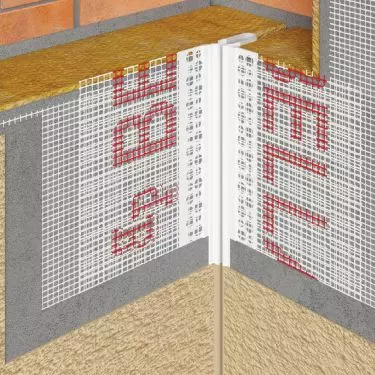

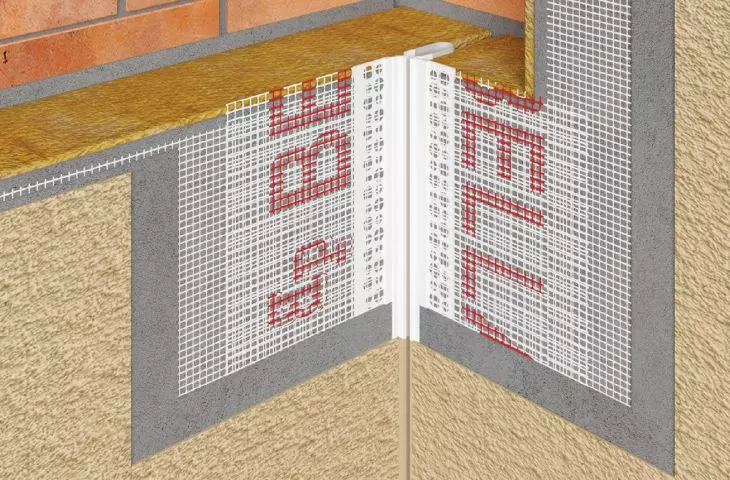

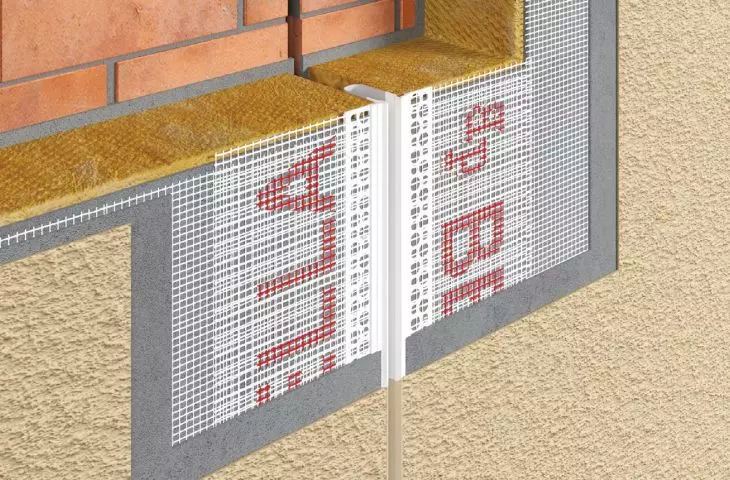

The basic edges in the BSO facade (jointless thermal insulation systems) include: the connection between the plaster and the window frame - here we use expansion joint strips(BP13 series), all elements (shapes) protruding outside the facade, e.g. balcony, terrace, or bay window. Balcony, terrace, oriel, or most commonly: the lower end of the facade over a retracted plinth - here we install drip caps(BP14 series), then any corners: around windows, doors, or the corner of the building - here we use reinforcing angles(BP10 series) and more specialized profiles: system expansion joint(BP15) or(BP16 angle) in the place of the course of the division of buildings (set on separate footings) or when the horizontal span of the facade exceeds 15 m).

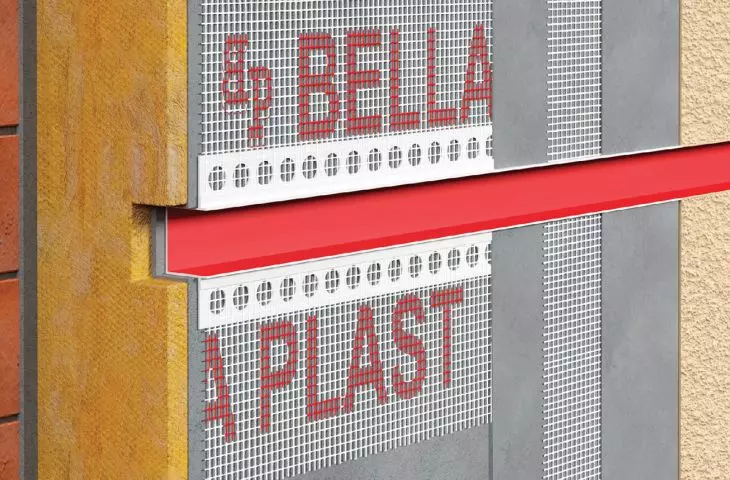

BP11 H2RS - listwa PVC do boniowania

BP11 H2RS - PVC strip for rustication

© Bella Plast

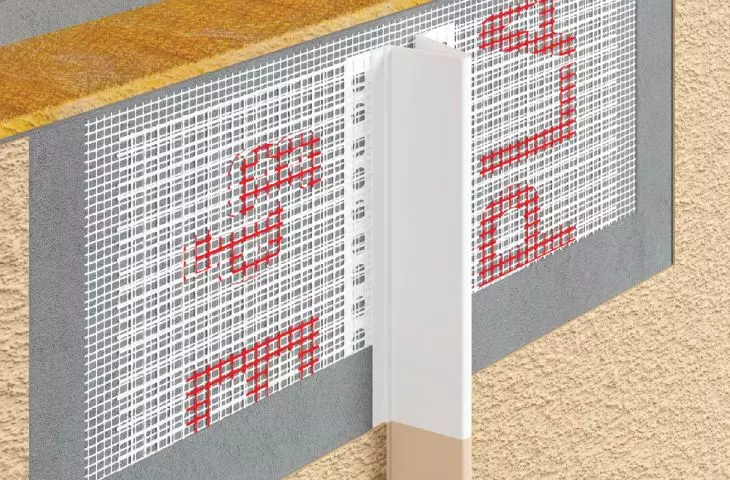

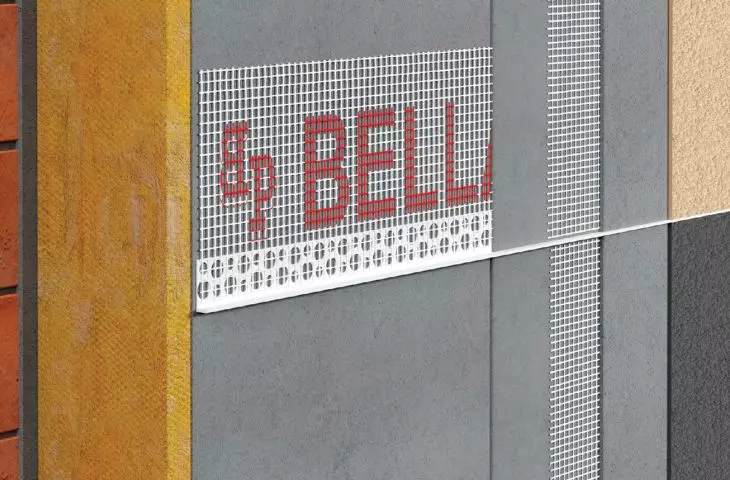

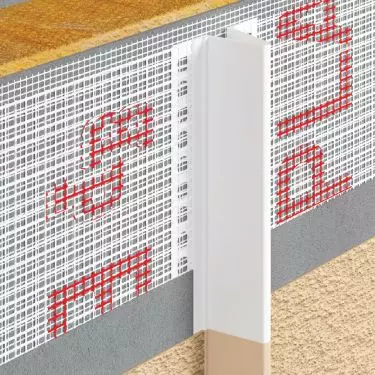

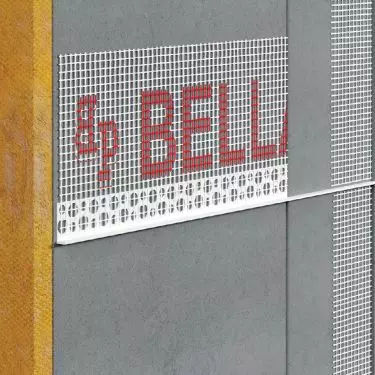

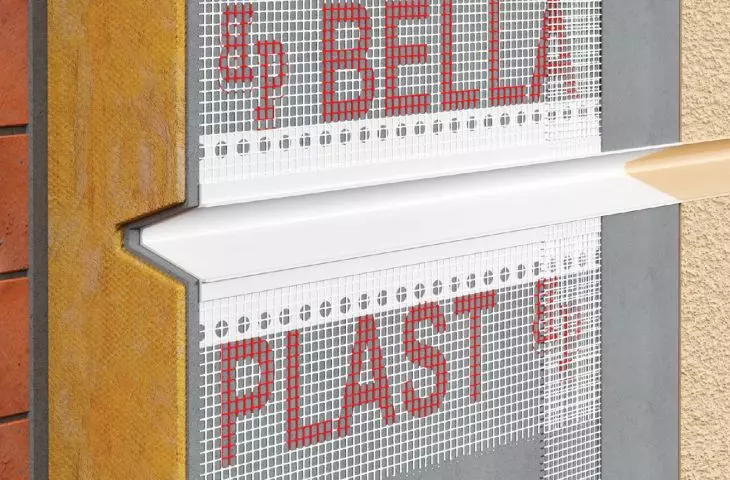

And many, many other products, including decorative rustication strips(BP11), decorative imitation sheet metal "on a seam"(BP19) most advantageously used with a triangular cavity rustication strip(BP11HTS) or finishing facade strips(BP22) used at the border of the change of plaster grain and/or its color. It is also recommended to use PVC start (plinth) strips (BP30S) as a lower base for polystyrene or mineral wool panels up to 220 mm thick.

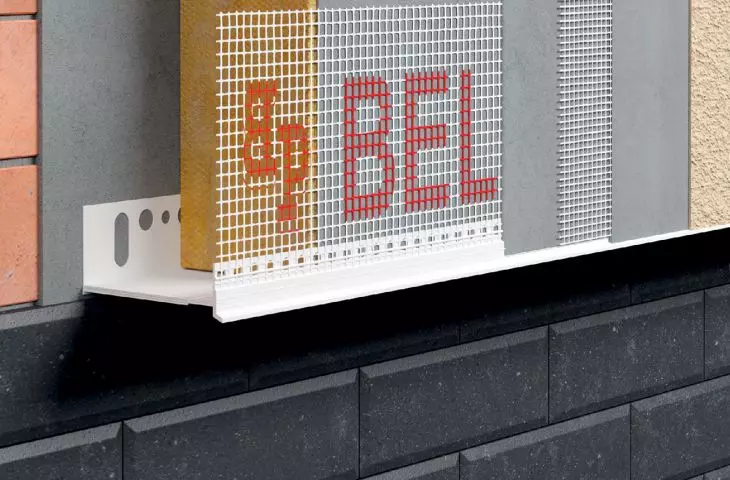

BP30S listwa startowa PVC

BP30S PVC starter trim

© Bella Plast

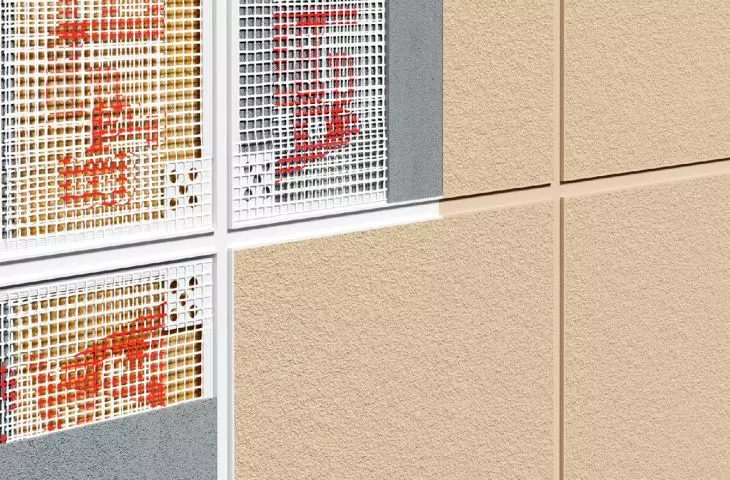

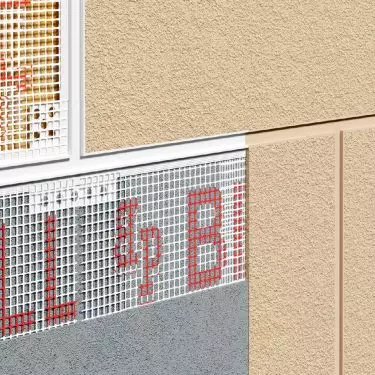

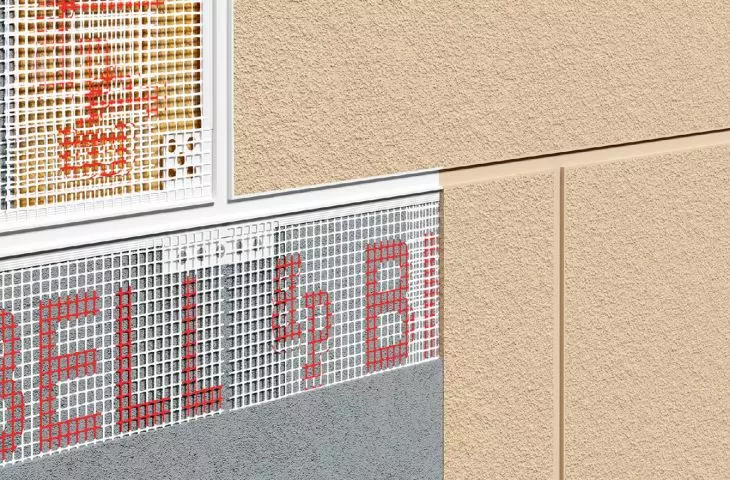

Interesting effects on the surface of the facade can also be achieved with the so-called "surface-mounted" rustication strips. Surface-mounted, i.e., not requiring a groove in the volume of the thermal insulation board(BP11 MINI S) - with a groove dimension of 7 mm wide, 3 mm deep as an ideal joint between imitation stone facade panels made with theusing decorative plasters such as sandstone or granite, along with the necessary accessories in the form of system cross connectors(BP11 MINI MAX CC) and "T" shaped (BP11 MINIMAX TC).
