SKY - DOOR designed to comfortably access the roof terrace

Bianka Pasternak
06 of December '23
Terrace in Sopot
Warsaw, Foksal tenement house 13/15
Terrace in Gdynia Orlowo
Warsaw, Foksal tenement house 13/15

Terrace in Sopot

© SKY-DOOR

  • Terrace in Sopot
  • Warsaw, Foksal tenement house 13/15
  • Terrace in Gdynia Orlowo
  • Warsaw, Foksal tenement house 13/15

An innovative product created to gain comfortable access to the roof terrace. We designed SKY DOOR as a free-standing or wall-mounted glazed roof box. Access to the terrace is gained through a sliding sash driven by a modern, silent motor. This is an ideal solution for existing and planned buildings where the maximum allowable building height has already been reached.

Warszawa, kamienica Foksal 13/15

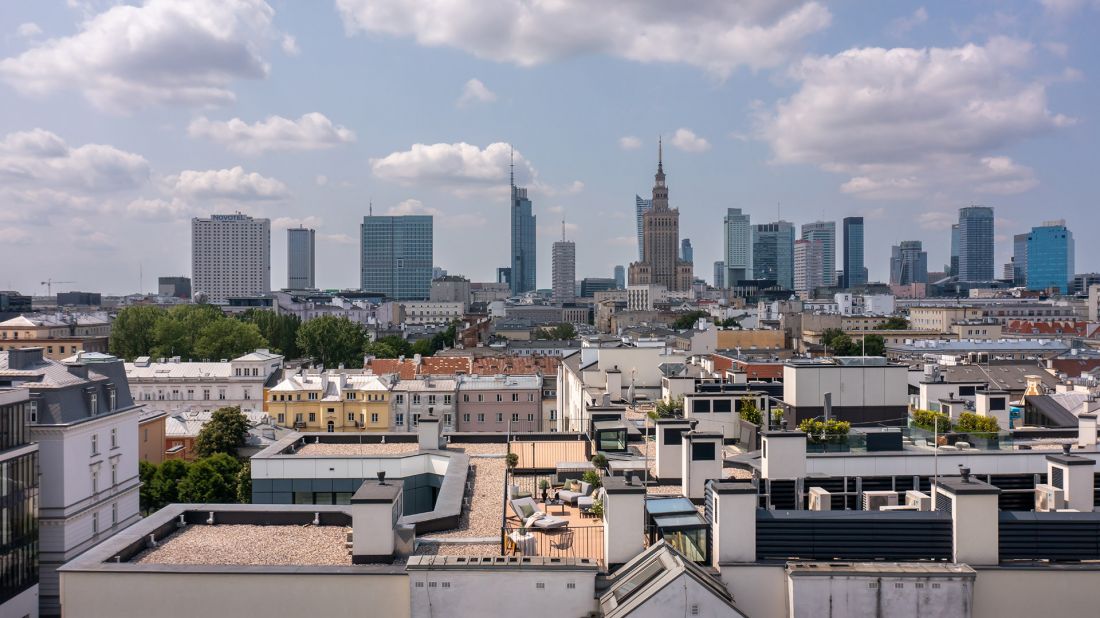

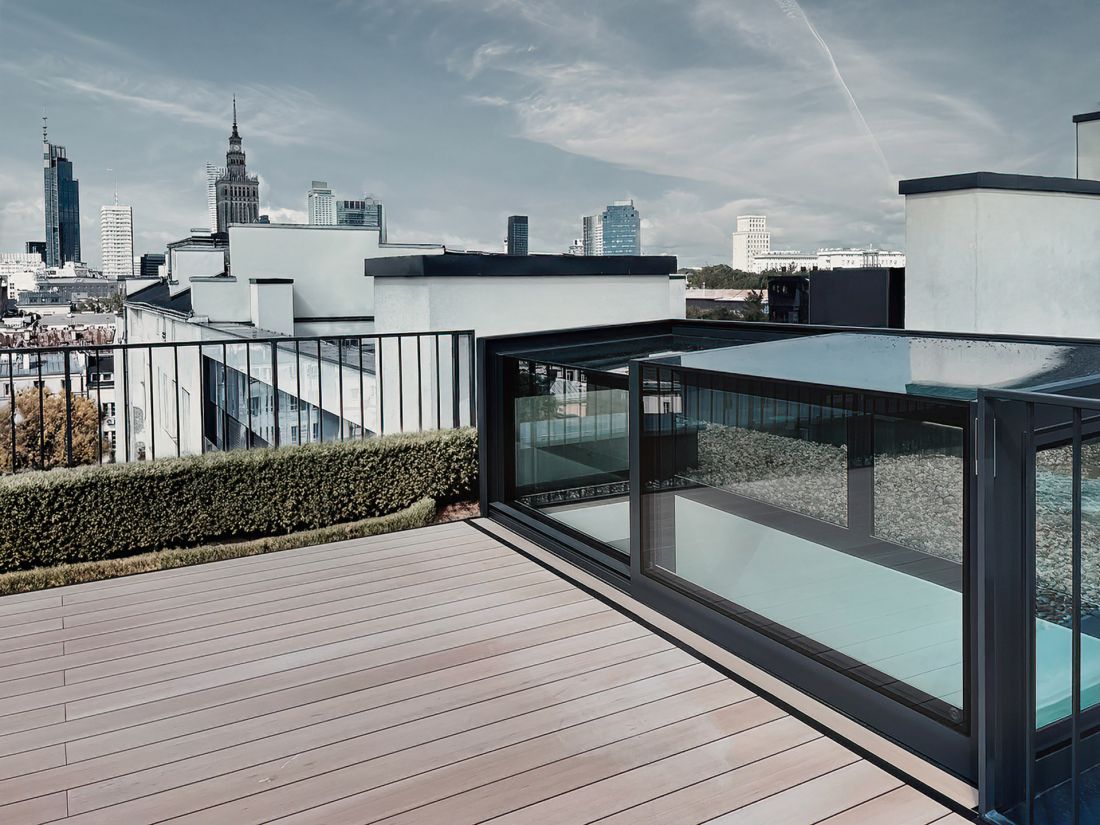

Warsaw, Foksal tenement house 13/15

© SKY-DOOR

FUNCTIONALITY

  • Comfortable access to the roof terrace

  • More daylight

  • excellent thermal performance. Wind- and waterproof.

  • glazing with a 3-pane package Ug = 0.5 W/m2K

  • opening manually or automatically with the possibility of using a rain sensor, external keypad with fingerprint reader, photocells and connection to a smart home system

  • size of the base of the structure up to 6 m2

Taras w Gdyni Orłowo

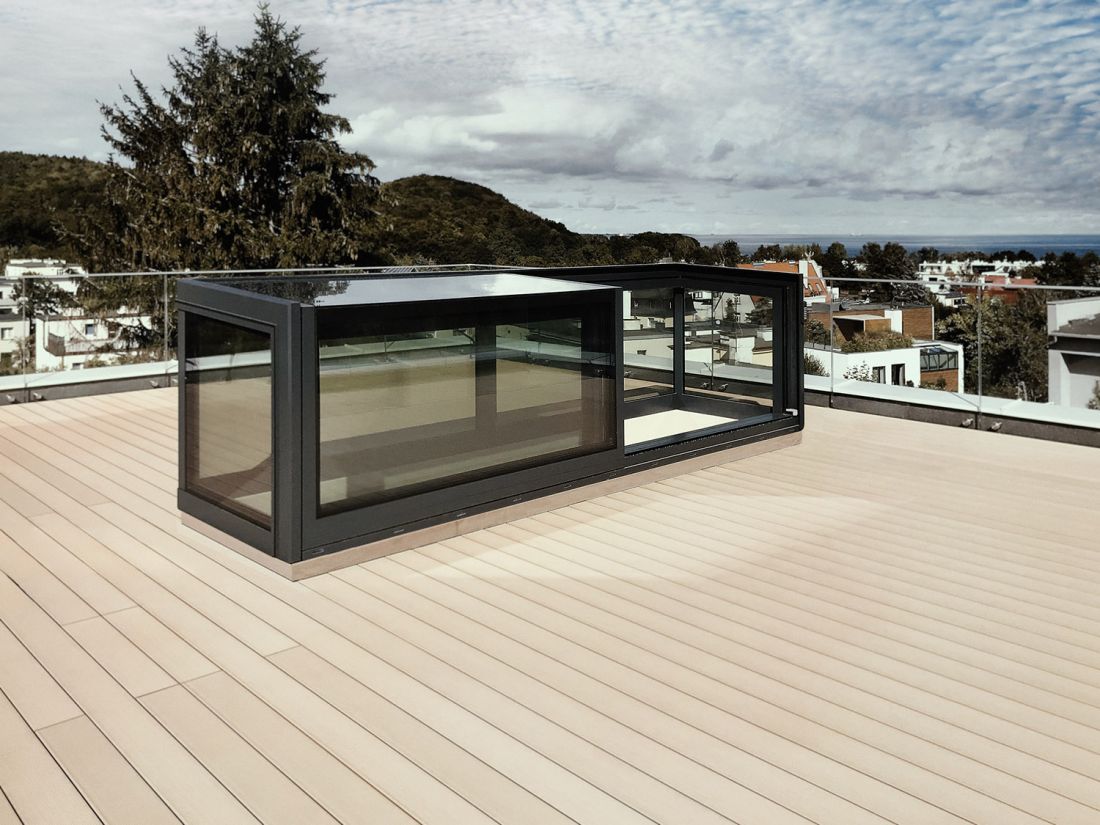

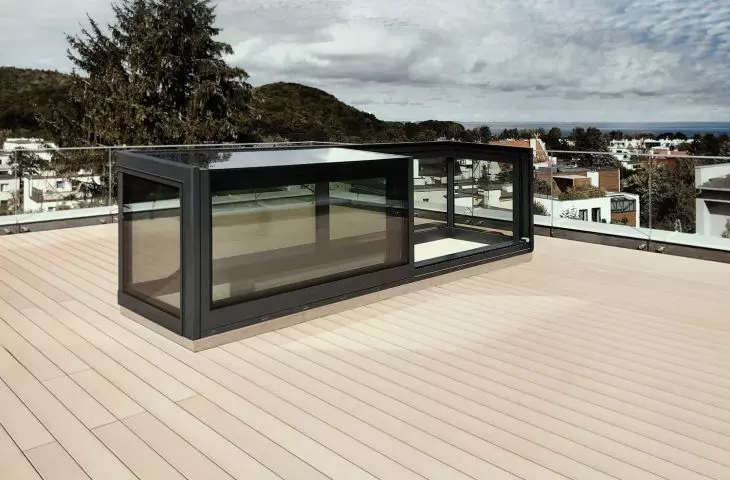

Terrace in Gdynia Orłowo

© SKY-DOOR

TECHNICAL PARAMETERS OF THE SYSTEM

Resistance to wind load (PN-EN 12210:2016-05)
- Class C4/B4 (1600 Pa)
Resistance to tearing load (PN-EN 14963:2006)
- UL 1500 class (1500 Pa)
Resistance to pressure loads (PN-EN 14963:2006)
- DL 1750 class (1750 Pa)
Air permeability (PN-EN 12207:2017-01)
- Class 3 (600 Pa)
Water tightness (PN-EN 14963:2006)
- fulfilled
Watertightness (PN-EN 12208:2001)
- Class 9A (600 Pa)
Thermal insulation EN 6946
- Uw < 1.1 / m2 K

Taras w Sopocie

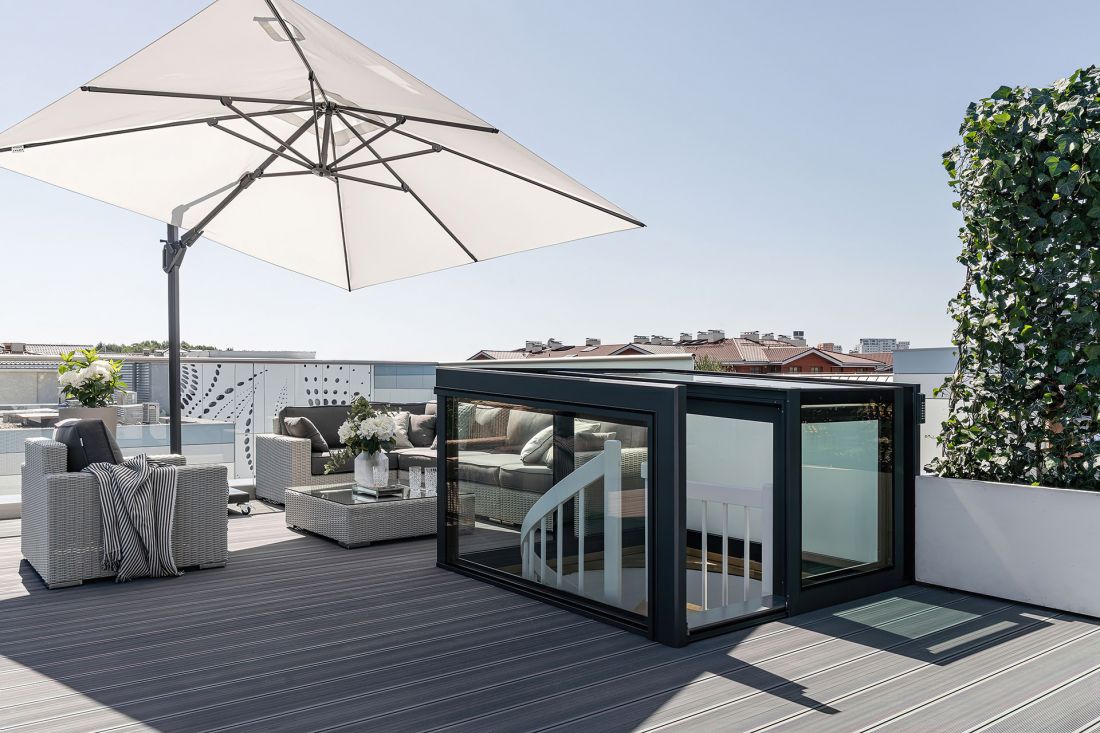

Terrace in Sopot

© SKY-DOOR

When designing SKY-DOOR, keep in mind :

width min. 1500, max. 4200 mm
span min. 1100, max. 2400 mm
height min. 300, max 1500 mm
area should not exceed 6 m2.

Warszawa, kamienica Foksal 13/15

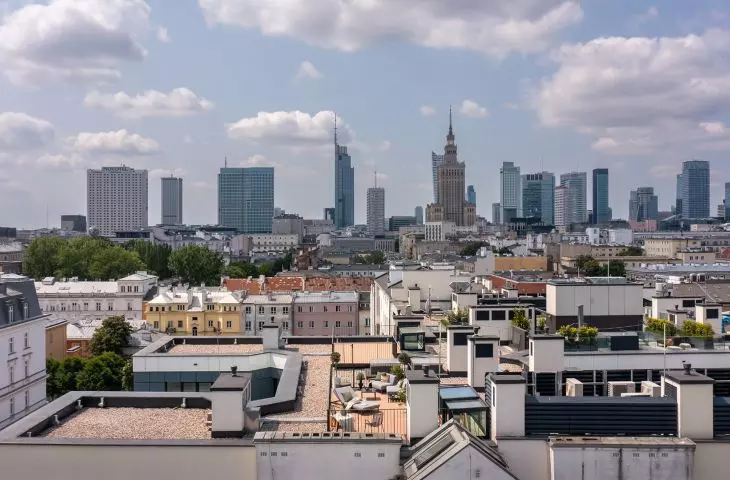

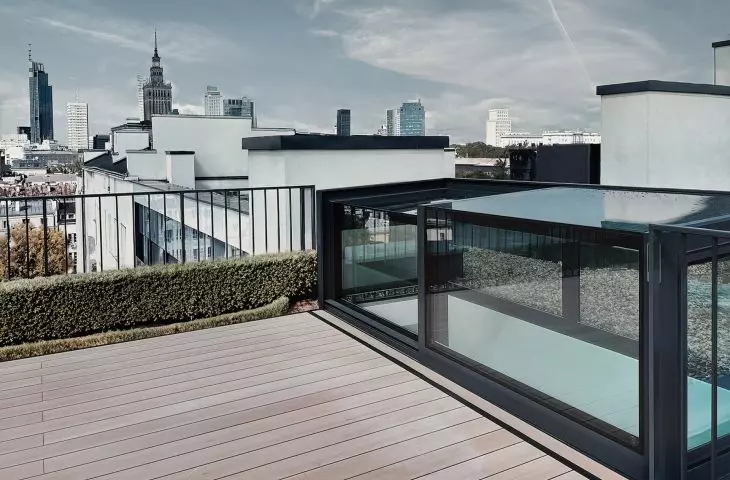

Warsaw, tenement house Foksal 13/15

© SKY-DOOR
