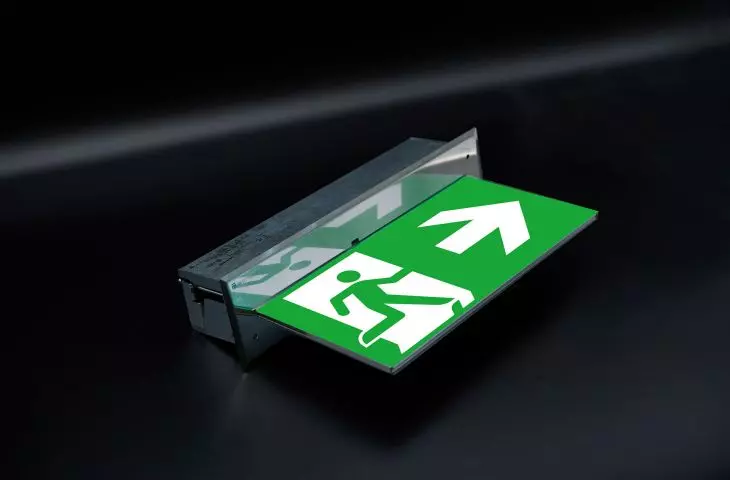

Innovative evacuation lighting

05 of December '22


TM TECHNOLOGIE experts have designed the PRIMO APZ product incorporating two functions - simultaneously illuminating the pictogram and lighting the escape route. Such a solution allows you to definitely optimize the luminaires on the investment. The product can be successfully used in arrangements that require high aesthetics, while ensuring the primary goal - the safety of people in the facility.

Emergency lighting is divided - according to the PN-EN 1838:2013 standard - into illumination of the open zone and evacuation zone, as well as those marking the escape route.

PRIMO APZ

PRIMO APZ

© TM TECHNOLOGIES

PRIMO APZ is one of the luminaires of the PRIMO family, which includes:

  • PRIMO AP Z - a surface-mounted luminaire that illuminates the space below the luminaire, as well as internally illuminating the escape sign,
  • PRIMOAP - surface-mounted luminaire internally illuminating the escape sign,
  • PRIMO A - surface-mounted luminaire illuminating the space under the luminaire,
  • PRIMO PPZ - flush-mounted luminaire illuminating the space under the luminaire, as well as internally illuminating the escape sign,
  • PRIMOPP - flush-mounted luminaire illuminating the escape sign internally ,
  • PRIMO P - flush-mounted luminaire illuminating the space under the luminaire.

The use of the PRIMO series of luminaires makes it possible to serve the investment comprehensively. The series of luminaires from others available on the market is distinguished by both the visual aspect and technical specifications.

PRIMO PP

PRIMO PP

© TM TECHNOLOGIES

PRIMO luminaires

PRIMO luminaires are distinguished by the material from which they are made. For production we use metal, specifically powder-coated sheet metal and polished stainless steel giving the effect of the so-called mirror. Laser cutting, welding, as well as bending of the frames is performed in our company, which guarantees incredible accuracy and repeatability of the production. Having our own machinery park allows us to take an individual approach to the customer - we can produce luminaires in different sizes, which translates directly into the visibility of the escape sign.

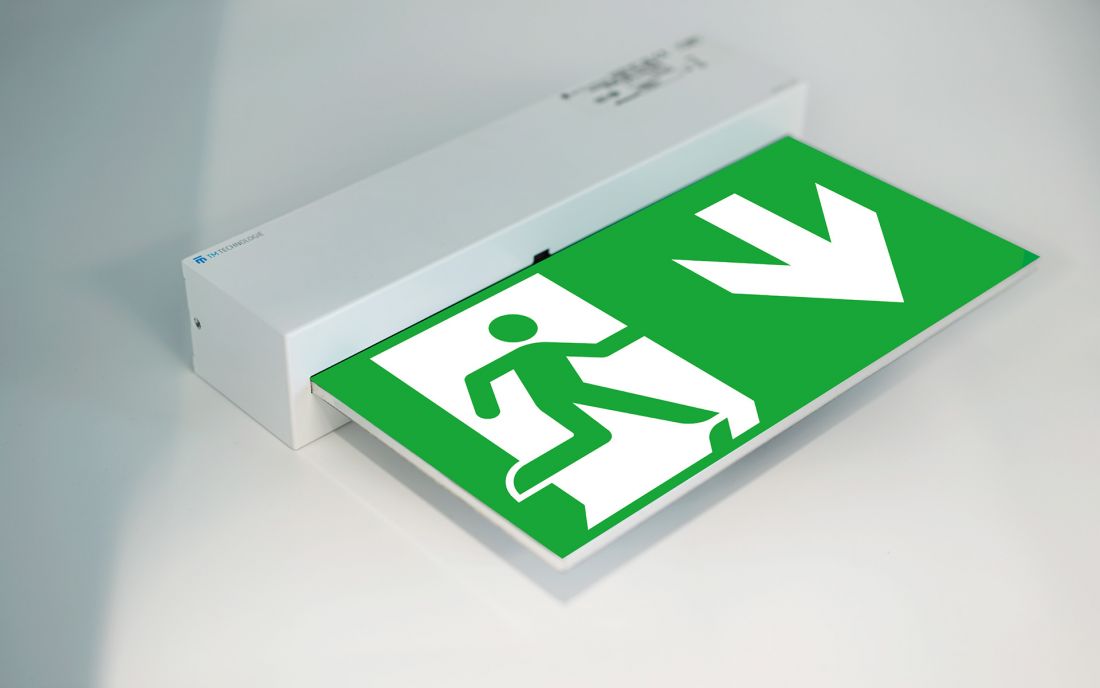

PRIMO AP

PRIMO AP

© TM TECHNOLOGIES

The PN-EN 1838:2013 standard precisely defines the requirements for safety signs, commonly known as pictograms. The placement of safety signs should ensure safe egress from the building in the event of an emergency. At least one sign must be visible from each location in the building. Primo APZ/PPZ and AP/PP luminaires are some of the larger luminaires on the lighting market, where the height of the pictogram is 20 cm, so the evacuation sign is recognizable from a distance of 40 m. According to PN-EN 1838:2013 for pictograms illuminated from the outside (safety signs stuck on walls), this distance must not be greater than 100 times the vertical dimension of the pictogram, while for pictograms illuminated inside this distance increases twice.

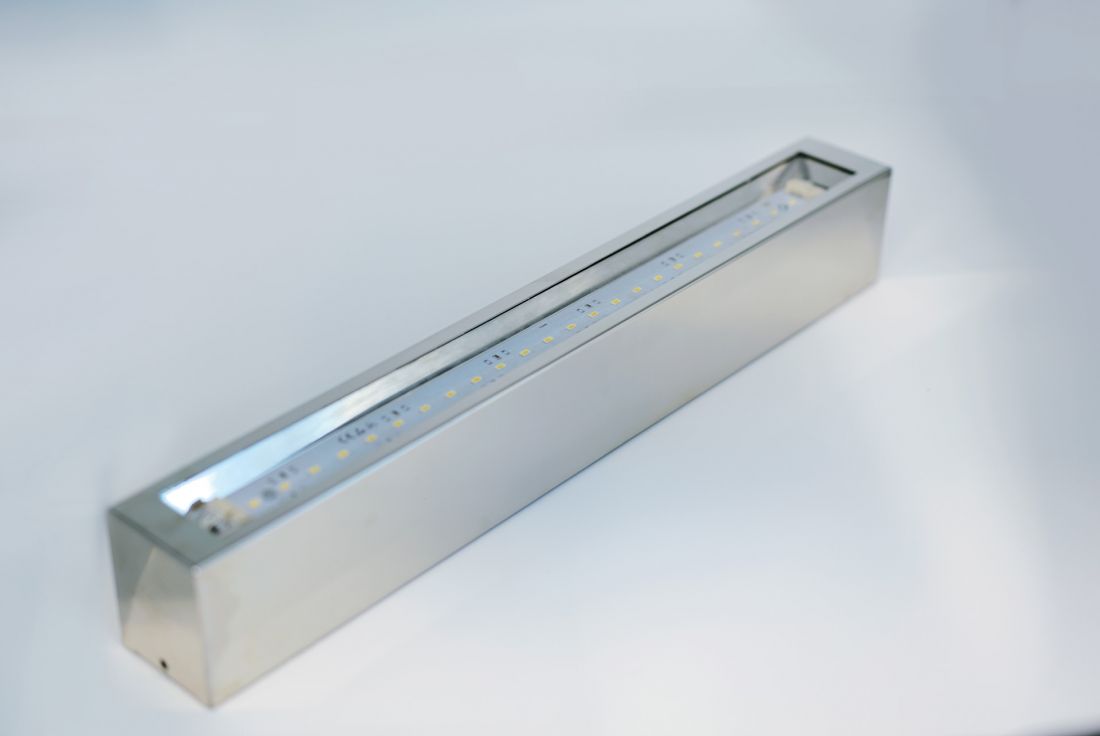

PRIMO A

PRIMO A

© TM TECHNOLOGIE

An important aspect is the high luminance value of the luminaire - Primo APZ/PPZ, AP/PP luminaire reaches >500 cd/m². This allows very good recognition of the sign, which improves the process of evacuation from the facility. Attention to every detail emphasizes the highest quality of the luminaire. The luminaire will ensure safety in the facility, as well as complement the modern interior design.

PRIMO PPZ

PRIMO PPZ

© TM TECHNOLOGIE

Technical parameters allow to use the optimal number of luminaires in a given object - those with a suspended pictogram can additionally illuminate the space under the luminaire. Dual-functionality allows the effective use of luminaires on escape routes and intersections of these routes. TM Technologie conducting all activities has an ecological aspect in mind, so in the luminaires we use LED light sources, LiFePO4 batteries and other components that guarantee long-term reliability, moreover, in general, the replacement of only one component allows the continued operation of the product at low cost. The PRIMO series of products has IP20 waterproofing. The variety of finishes of the luminaires allows them to fit into spaces such as, modern office buildings, elegant galleries, designer hotels. We recommend using the series in fashionable, industrial spaces, the arrangements of which are increasingly popular. The PRIMO series of luminaires is the highest quality confirmed by numerous certificates, so architects and interior designers can confidently use in their projects.

Z uwagą na najdrobniejszy szczegół produktu

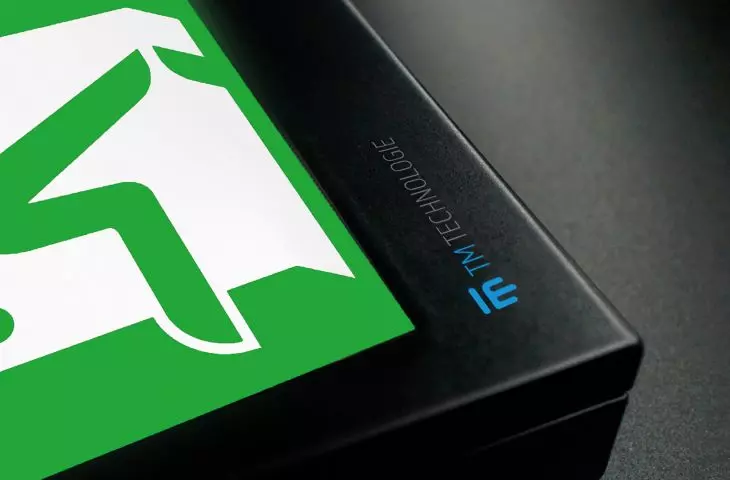

With attention to the smallest product detail

© TM TECHNOLOGIE

For more information, visit the company's TM TECHNOLOGIE Sp. z o.o. page on the PdA portal.
