Four new Neo aluminum and glass wall systems from Alufire

05 of December '22

New Neo aluminum and glass wall systems from Alufire

Alufire is launching four new Neo aluminum and glass wall systems, which feature minimalist profiles just 35 mm high and the best sound insulation on the market, reaching up to 56 dB. The Neo series of joinery is ideally suited for buildings with enhanced aesthetics and requiring maximum noise attenuation.

All four Alufire Neo glass wall systems have been tested by the Building Research Institute (ITB) and obtained European Technical Assessment (ETA) documents allowing CE marking.

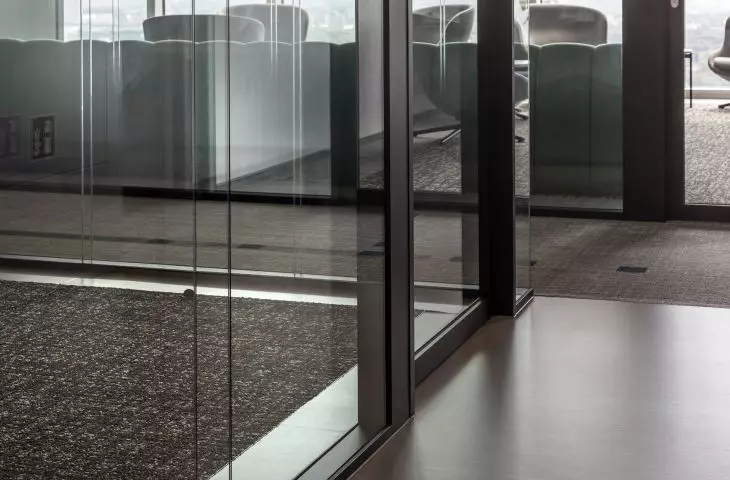

Alufire Neo Office+Alufire Neo Office+Alufire Neo Office+

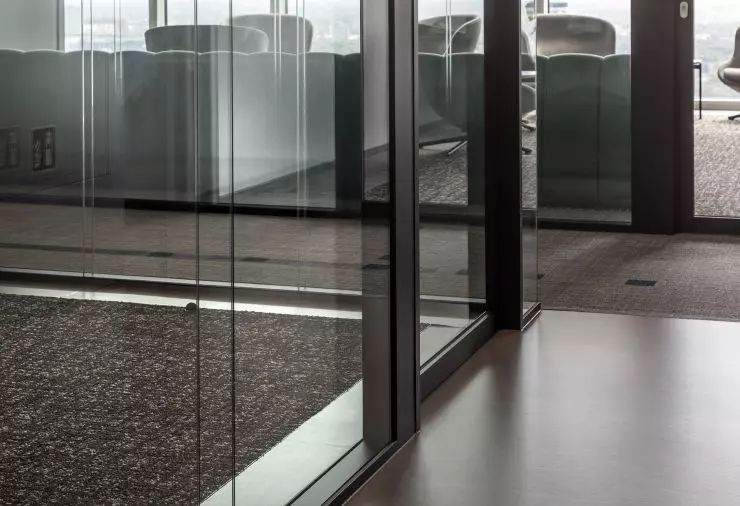

Alufire Neo Office+

© Alufire

Alufire Neo FR Line (EI15, EI30, EI60)

The system of frameless, glazed, fire-rated walls made from a low-height profile (35 mm) guarantees a visually light finish, and is consistent with the rest of the Alufire Neo family of products. Depending on the glass used, the height of each structure, can reach up to 3000 mm with unlimited wall width.
Sound insulation: Rw 38-42* dB.

ETA-19/0533

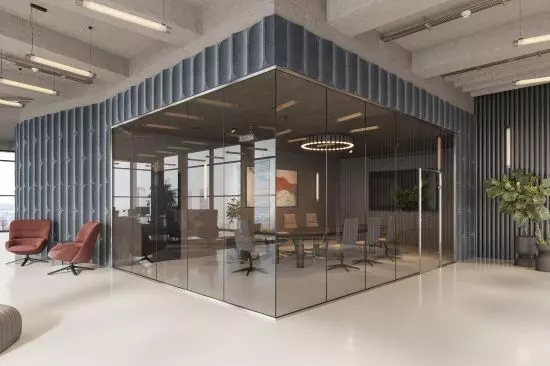

Alufire Neo FRAlufire Neo FRAlufire Neo FR

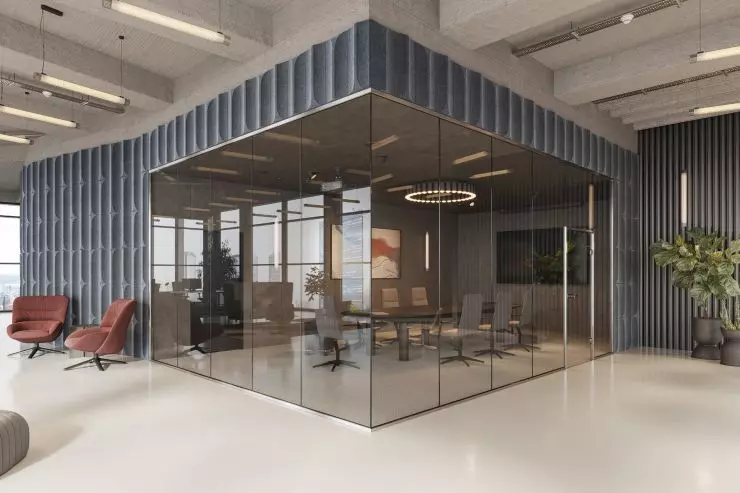

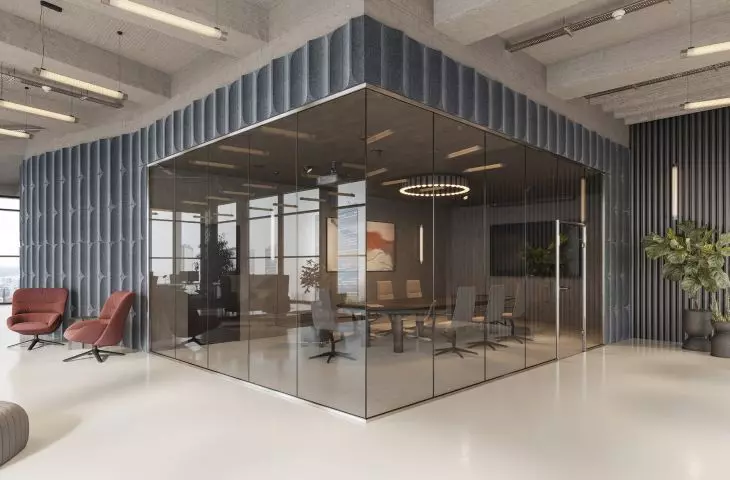

Alufire Neo FR

© Alufire

Alufire Neo FR+ Line (EI15, EI30, EI60)

A double-glazed, glazing-free fire wall system.
Sound
insulation: Rw 47-53* dB
ITB-KOT - from 2023

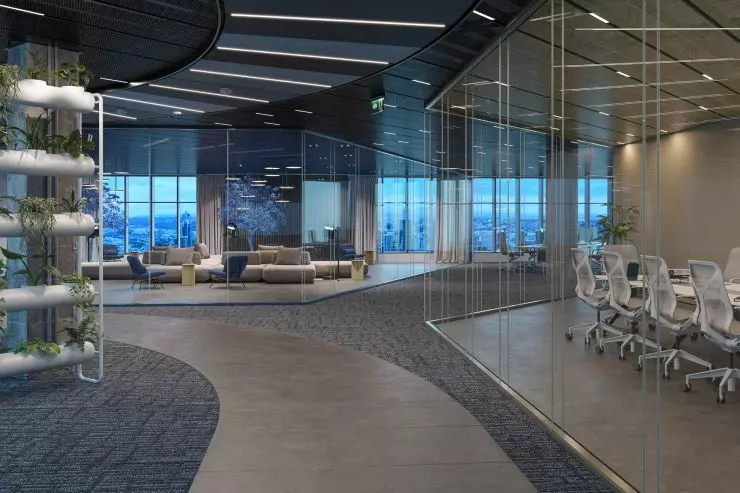

Alufire Neo FR+Alufire Neo FR+Alufire Neo FR+

Alufire Neo FR+

© Alufire

Alufire Neo Office Line (without fire retardant)

Small and lightweight 35 mm high mounting profile, consistent with all Alufire Neo family products. The single-glazed system is the basis of a whole series of products designed for the construction of partition walls in office spaces. It is distinguished by its high noise dampening parameters, thanks to the innovative IsoSound solution, which limits sound penetration inside the profile. The system is characterized by a light and simple construction and versatility of use. Depending on the glass used, the height of each structure can reach up to 3400 mm, with unlimited wall width.
Sound
insulation: Rw 33-40* dB.
ETA-19/0532

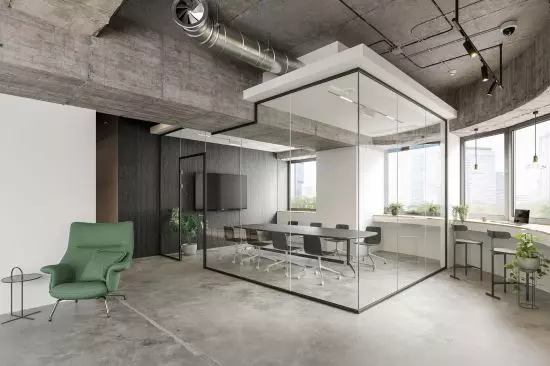

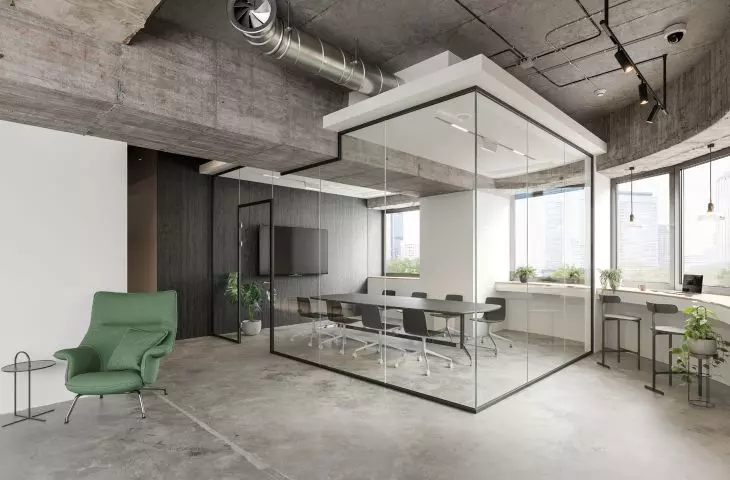

Alufire Neo Office Line Alufire Neo OfficeAlufire Neo OfficeAlufire Neo Office

Alufire Neo Office

© Alufire

Alufire Neo Office+ Line (without fire retardant)

A double-glazed system designed specifically for office spaces that require the most effective soundproofing. With unlimited width, the height of the structure can reach up to 3400 mm without the need for additional profiles. Thanks to the use of double glazing, the Alufire Neo Office+ system features the highest sound insulation parameters of all Alufire Neo products, with Rw reaching up to 56 dB. Importantly, the design of the 35 mm high mounting profile is consistent with the rest of the Alufire Neo series of products, which allows the combination of both single and double-glazed fire-resistant and classless walls in the interior design.
Sound
insulation: Rw 41-51* dB and Rw 52-56 dB**.
ETA-19/0531

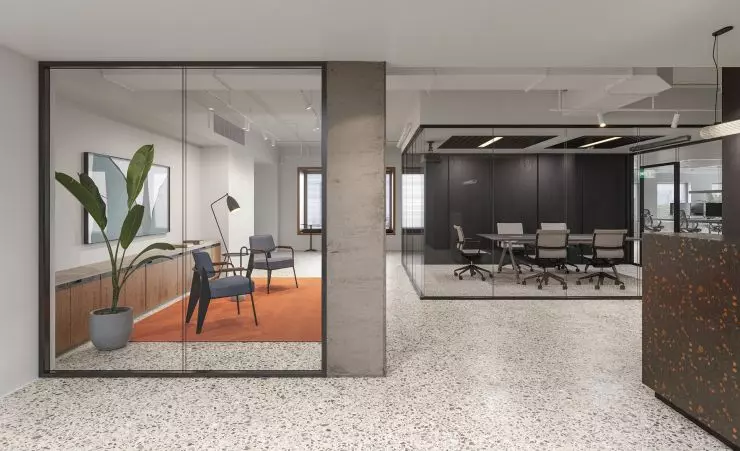

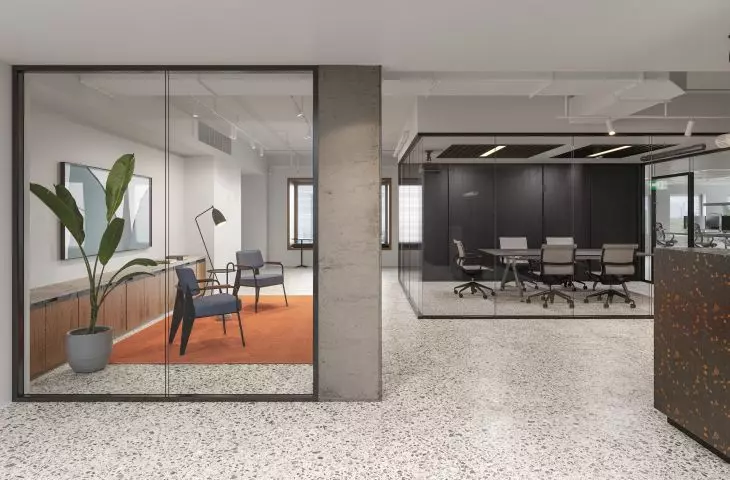

Alufire Neo Office+Alufire Neo Office+Alufire Neo Office+

Alufire Neo Office+

© Alufire

* depending on the glass used
** with special muntins for soundproofing between the glass panes

The walls can be complemented with all-glass, aluminum and wooden doors.

MUNTINLESS FIRE PROTECTION SYSTEMS

Alufire Vision Line (EI30, EI60)

Poland's first gridless aluminum system in EI30 and EI60 classes. The maximum height of AVL is 3300 mm, and the wall length is unlimited. A unique feature of the system is the narrow width of the special fire-retardant silicone used to join the glass sheets, ranging from 4 mm to 6 mm. Thanks to this solution, the joining is almost unnoticeable. It is possible to make an angular connection and a "T" type - the connection of three panes of fire glass without the use of aluminum profiles.

Complementing the AVL walls, can be Alufire EI30 and EI60 system doors with roller hinges, the visible part of which is only 20 mm. Wooden and all-glass doors without fire resistance are also available. It is also possible to use wooden fire doors of EI30 class in AVL walls. Alufire Vision Line glass fire walls provide unlimited possibilities for visually enlarging the interior while maintaining fire safety. The system of meshless fire walls has the National Technical Assessment ITB-KOT-2019/0714 and the English BRE/LPCB certificate No. 1406a.
An alternative to Vision Line is the Shadow Line system which gives the possibility of installing rafterless fireproof partitions up to 3900 mm high.
Complementary to this is the Office Line gridless system without fire resistance, which is compatible with the above-mentioned systems.
Sound insulation: AVL Standard - Rw 39 dB, AVL Acoustic - Rw 44 dB, AVL Acoustic+ - Rw 47 dB.
ITB-KOT - 2019/0714
BRE/LPCB 1406a

MUNTIN FIRE PROTECTION SYSTEMS

Alufire Classic Line (EI15, EI30, EI60, EI90, EI120).

The maximum height of all stile fire walls is 4200 mm. The height of double-leaf fire doors is 2750 mm and the height of single-leaf doors can reach 3000 mm. Alufire's EI30 and EI60 aluminum fire doors correspond to the 4th class of strength requirements (i.e. in heavy and very heavy working conditions) and C5 class (the highest mechanical durability of fire doors on the market). The range includes smoke-proof doors, doors with ventilation grilles, aeration doors, etc.
ITB-KOT-2021/1797
BRE/LPCB 1406a and 1406b (doors)

EXTERIOR WOODWORK

Technical doors and windows (EI30, EI60)

Thermal insulation coefficient Ud ≥ 0.9 W/m²K
Certificate of Constancy of Performance 2434-CPR-0091


For more information, visit the company's ALUFIRE page on the PdA portal.
