from the series "Heating, air conditioning and ventilation - trends 2025"
QVANTUM Energy Technology Sp. z o.o. is the Polish representative of Swedish manufacturer Qvantum Industries AB - a brand with more than 30 years of experience in developing modern heating, cooling and ventilation systems. Based on its Scandinavian roots and long-standing know-how, the company not only responds to the growing challenges of energy transition and decarbonization, but also sets new trends in energy efficiency and comfort. QVANTUM's portfolio includes innovative heat pumps dedicated to both modern residential and commercial buildings.
Innovation embedded in QVANTUM's DNA
Modern heat pumps must be more than just a heat source. That's why QVANTUM has developed a set of technologies that set the brand apart from the competition and prepare its equipment for the rapidly changing energy market.
-
Modular design - flexibility and optimization
Thanks to its modular design, all QVANTUM units - from ground QG to air QA to ventilation QE - are based on unified components. This allows for serial, flexible production while maintaining high quality and significantly reducing installation and service costs. Modularity also means simpler design and easier adaptation of the device to the investor's needs - from small houses to larger multi-family facilities.
-
Flexready® technology and thermal battery
Flexready® is an innovative response to the challenges of increasing renewables and dynamic electricity tariffs. At the heart of the solution is a 175-liter thermal battery that stores thermal energy even at temperatures up to 90°C. The pump can store energy during hours of cheap electricity and use it when prices rise. By integrating with grid operators' systems, QVANTUM devices not only reduce bills, but also support the stability of the electricity grid.
-
Digital tools-intelligent support and user comfort
The company also relies on digital support for the user and installer. A mobile app allows you to control heating, ventilation and domestic hot water from anywhere, and a "vacation mode" function enables additional savings. Installers use tools such as Q Planner to design installations or the "Digital Doctor" function, which monitors the condition of equipment and suggests service actions. This combination of hardware and software makes QVANTUM a future-ready solution.

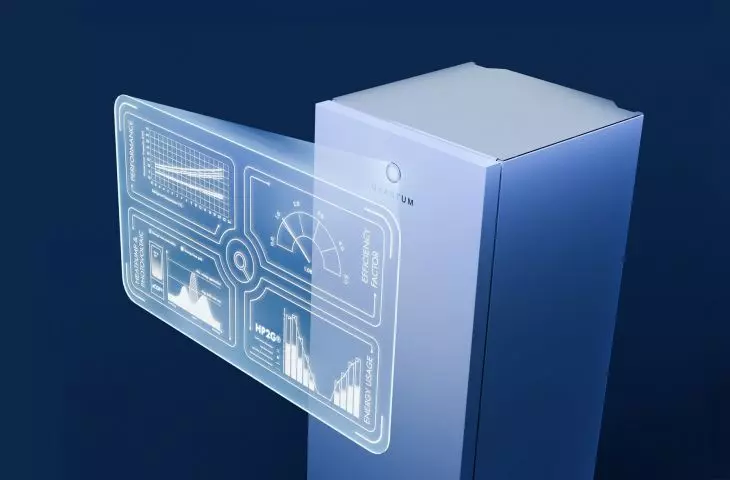

Qvantum digital tools
© QVANTUM ENERGY
Prefabrication + QVANTUM QE - the perfect combination
Prefabrication is becoming one of the most important trends in modern construction. Speed of execution, predictability of the process and energy efficiency require technologies that are as compact and reliable as the construction itself.
Against this background, the QE ventilation heat pump stands out, being a complete machine room in a single unit. It combines the functions of:
-
ventilation with heat recovery,
-
heating and cooling of rooms,
-
preparation of domestic hot water.
In prefabricated construction, every element matters - it is not only the timing of the project that counts, but also the optimal use of available space. That's why the QE ventilation heat pump perfectly fits the needs of modular and frame houses. The unit occupies just 0.38 m² of floor space, and despite its compact dimensions it is a complete machine room.
One of the key advantages of the QE is that it operates without an outdoor unit. This solves the usual problems of noise or required distances from the neighbor's plot boundary. This makes installation simpler and building design more flexible. Importantly, the pump also does not need a separate hot water storage tank. Domestic water is heated in a flow-through manner, which not only saves space, but also ensures complete hygiene of the installation, eliminating the risk of Legionella bacteria development.
QE is available in two power variants - 4 kW and 6 kW - which makes it ideal for modern, energy-efficient buildings from 60 to 160 m². It is a solution designed for prefabrication, where compactness, simplicity of installation and high energy efficiency are key advantages.

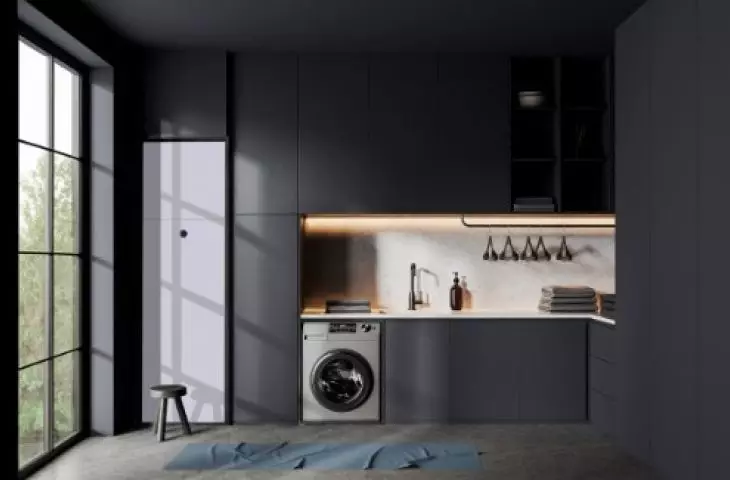

Application of the QVANTUM QE ventilation heat pump
© QVANTUM ENERGY
Tailor-made ventilation
The QE heat pump can operate in two variants, adapted to different user needs and building characteristics.
The first solution is based on the use of used air, which is exhausted from the so-called dirty rooms - kitchen, bathroom, toilet or vestibule. As a result of the slight negative pressure created in the building, fresh air from outside flows through wall or window ventilators into clean rooms, such as the living room or bedrooms. In principle, this system resembles traditional gravity ventilation, but significantly improves it - as it recovers energy from the exhaust air and reuses it to heat the building.

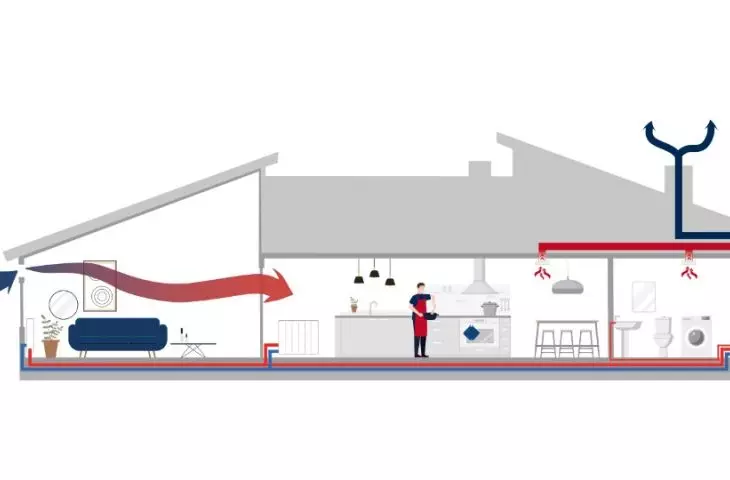

The principle of operation of ventilation heat pumps - basic system with ventilators
© QVANTUM ENERGY
The second variant is a more advanced option, based on an additional QS recuperation module. In this case, we are dealing with full supply and exhaust ventilation. The used air, as in the basic variant, transfers energy to the heat pump, while the fresh air does not enter the interior through wall vents, but flows through the QS module. There it is preheated before it enters individual rooms through ventilation ducts. This process is carried out using a water heater built into the QS module, which uses water previously heated by the heat pump in the central heating system.

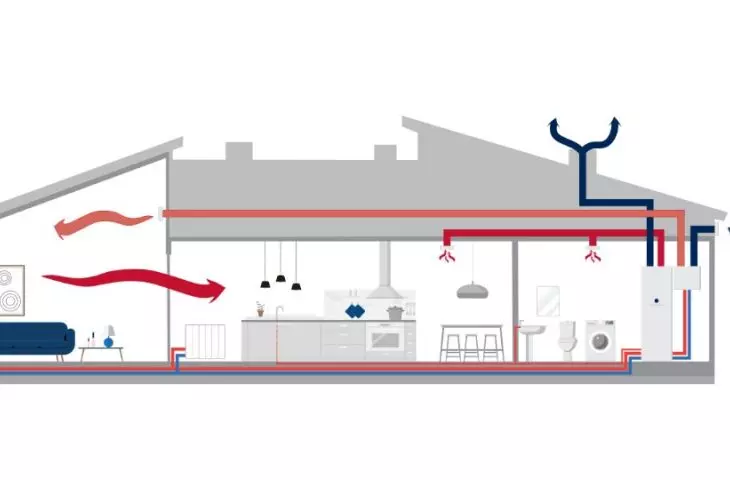

Operating principle of ventilation heat pumps - expanded system with QS supply module
© QVANTUM ENERGY
Both solutions guarantee high comfort and at the same time significant energy savings.

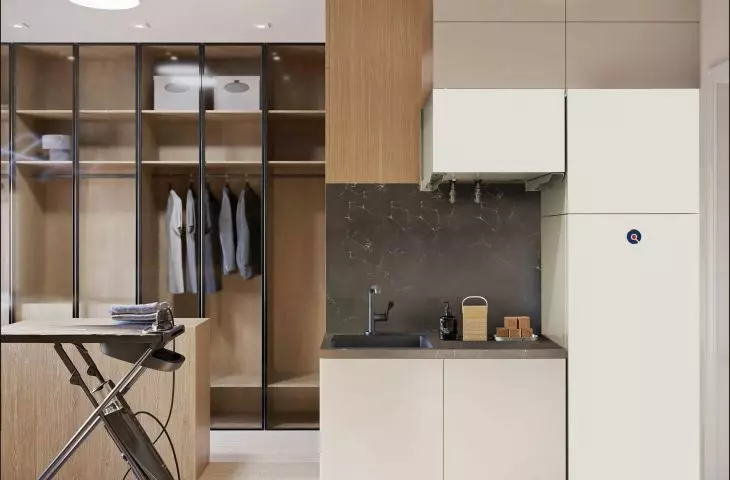

Use of ventilation heat pump QVANTUM QE with QS supply module
© QVANTUM ENERGY
The solution of the future today
The Swedish company Qvantum proves that creating modern heat pumps requires going beyond the device itself. With this holistic view of the dynamically changing energy market, the brand is combining modular design, intelligent management and comprehensive digital support into one cohesive solution. This makes the transition to renewable energy sources accessible to everyone - regardless of the scale of the investment. What's more, the more devices we combine into one self-balancing energy ecosystem, the sooner the real benefits will be felt: lower bills and a positive impact on the environment.
Prefabrication and QVANTUM QE heat pumps form an ideal duo. Where speed of implementation, cleanliness and predictability matter, you need systems that are equally reliable and optimized. The QE ventilating heat pump meets these requirements with a modern, compact and energy-efficient solution for prefabricated and modular homes. It is a technology that not only meets the needs of today's market, but also sets the standard for the construction of the future.
For more information, visit the company's QVANTUM ENERGY TECHNOLOGY Sp. z o.o. page on the A&B portal.
