Aluminum, or the best windows, doors, facades from Aluprof

18 of July '22

Why are Aluprof systems so popular?
From the series "Facade and wall materials - trends 2022"

The company's offerings meet all the requirements of energy-efficient and passive construction and work well in both commercial and private construction.

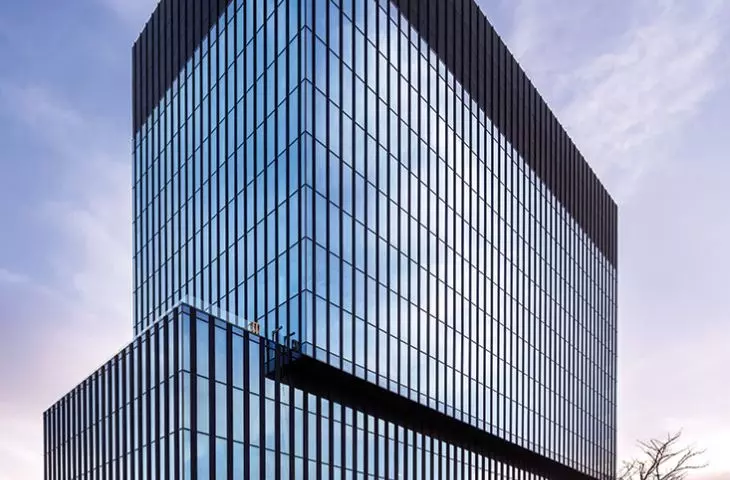

KTW I POLSKA, KATOWICE

KTW I POLAND, KATOWICE

© ALUPROF

- MB-86N Window and Door System

The MB-86N window and door system is a product with very good parameters, offering the possibility of satisfying a variety of user needs. The system includes windows in thermal variants ST and SI, while doors are additionally available in the SI+ variant.

The technology used, with the use of specially designed aluminum sections, allows greater durability and at the same time larger dimensions of the finished products.

The doors are available in three variants. They can reach dimensions of up to 3 x 1.4 m with a maximum sash weight of 200 kg. Windows, on the other hand, available in two thermal variants, can reach a maximum sash height of 2.8 m, a width of up to 1.7 m, with a maximum sash weight of 160 kg.

The key advantages of the new MB-86N system are tightness (E4800 Pa class), innovative spacers and insulating inserts, high thermal insulation - Uw as low as 0.62 W/(m2K), and the possibility of using Winkhaus aluPilot hardware, thanks to which the installation time is much shorter.

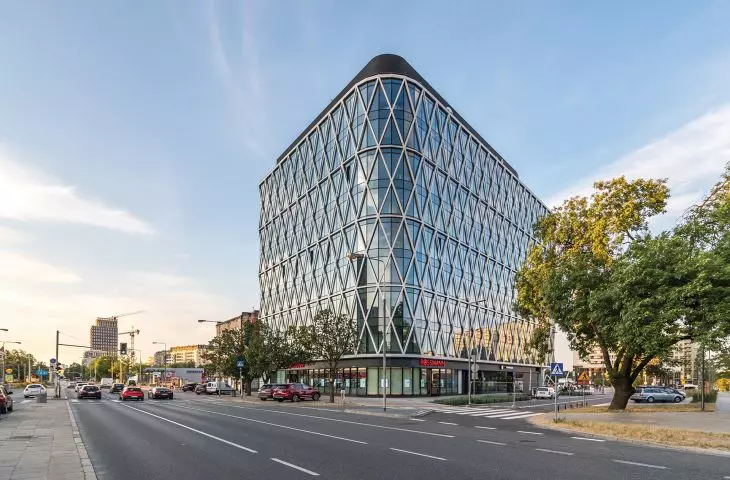

VILLA METRO POLSKA, WARSZAWAVILLA METRO POLAND, WARSAW

© ALUPROF

- MB-79N Window and Door System

The MB-79N system is the latest product in ALUPROF's range of window and door systems. It is the successor to the very popular and widely used MB-70 system in the construction industry, introduced to meet increased thermal insulation requirements from 2021. It is used to make a wide range of constructions, which include various types of windows and doors as well as display solutions with doors.

- MB-SR50N HI+

The facade with very good technical parameters is designed for constructing and making lightweight curtain walls of hanging and filling type, as well as roofs, skylights and other spatial structures.

In order to achieve optimal thermal and acoustic insulation and facilitate the installation of the facade, the MB-SR50N HI+ system uses an insulator made of PE material, which gives very good thermal insulation (Uf from 0.59 W/m2K), and its shape ensures the proper guidance of the screw during the glazing of the facade.

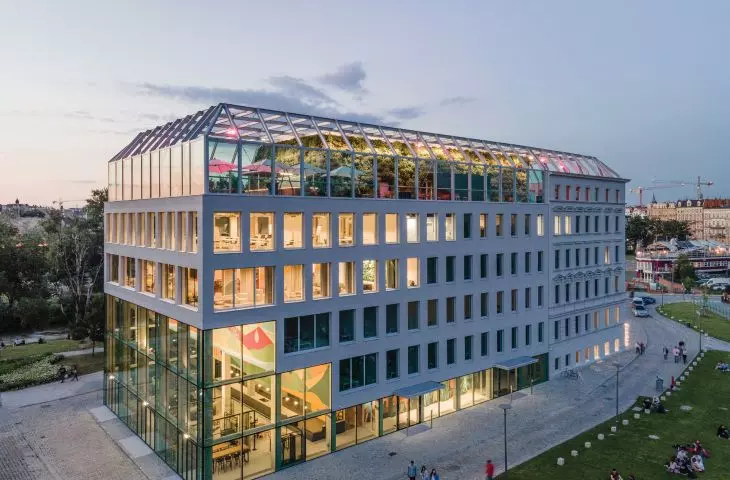

CONCORDIA DESIGN HUB POLSKA, WROCŁAW

CONCORDIA DESIGN HUB POLAND, WROCLAW

© ALUPROF

This has a huge impact on the speed and simplicity of installation. The system allows building facades with visible narrow dividing lines, while ensuring the durability and strength of the construction.The advantages of the MB-SR50N HI+ system include: angled connections that allow free shaping of the aluminum structure, mullions and transoms with "sharp" edges that allow building facade load-bearing structures with the appearance of a uniform truss, aesthetic varieties of the facade and a number of overlay profiles of different shapes ensure obtaining many variants of the facade image, a wide range of opening elements in the facade: various types of windows and doors, including MB-SR50N RW skylight windows integrated into the facade, as well as MB-SR50N OW hinged and parallel opening windows.

- MB-77HS Lift-and-slide doors

The construction of the profiles allows exclusive large-size doors to be made (sash weight up to 600 kg), filled with one-, two- or three-chamber glass, and the materials and technical solutions used help achieve a high degree of thermal and acoustic protection. Thanks to its properties, the system is ideal for both single-family buildings and comfortable apartments or hotels.

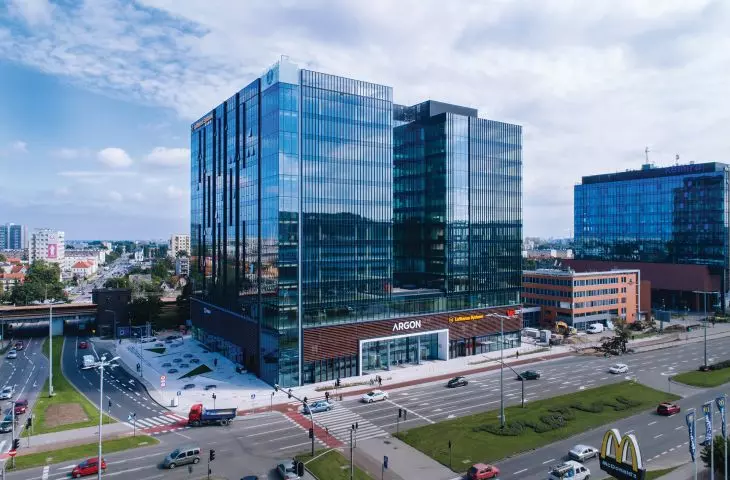

ALCHEMIA I POLSKA, GDAŃSK

ALUPROF I POLAND, GDANSK

© ALUPROF

In addition, the closed shape of the glazing bars and anti-burglary details allow for enhanced anti-burglary properties. MB-77HS doors allow the construction of a low threshold, with a narrow mullion width of only 47.5 mm, as well as 90 and 270 degree corner doors with a movable mullion.

Lift-and-slide doors provide a convenient exit to a balcony, terrace or garden space. It is possible to make 90 and 270 degree corner doors with a movable post. A wide range of colors makes it possible to match the door to the decor of the environment.

- MB-SKYLINE TYPE R System of doors
sliding doors with hidden frame

MB-SKYLINE TYPE R is a modern large sliding door system, characterized by lightness and aesthetics. It is based on narrow profiles, thanks to which the structures gain a modern look, while providing a panoramic view of the house surroundings.

MB-SKYLINE TYPE R is primarily a completely concealed door leaf profiles, narrow mullion and shallow frame. No great force is needed to move the huge elements, and the mechanism works almost silently. The maximum height of the structure is as much as 4 meters, and if we use a surface actuator, the moving leaf can weigh up to 700 kg. This gives the opportunity to design spectacular glass walls.

Doors made on the basis of this system give the building a unique style and raise the profile of the entire investment.

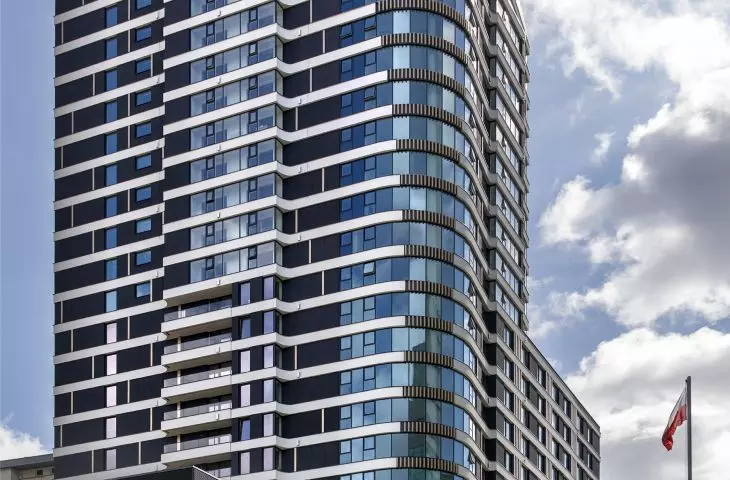

UNIQUE TOWER POLSKA, WARSZAWA

UNIQUE TOWER POLAND, WARSAW

© ALUPROF

- MB-HARMONY OFFICE
Interior wall systems

MB-HARMONY OFFICE is a new family of products for the construction of interior glass walls, the main idea of which is to create a system that is easy to prefabricate and quick to install, providing modern, lightweight design and comfort.

MB-HARMONY is a single-glazed system with a geometrically lightweight, easy-to-install design. It provides for combining with tempered glass, laminated glass and acoustic glass from 10-12 mm.

MB-HARMONY DUO is a system for the construction of internal double-glazed walls, the main purpose of which is any office space with very high acoustic requirements.

Double glazing ensures the achievement of the insulation necessary to maintain both good working comfort and the security of confidentiality of conversations held in the rooms.

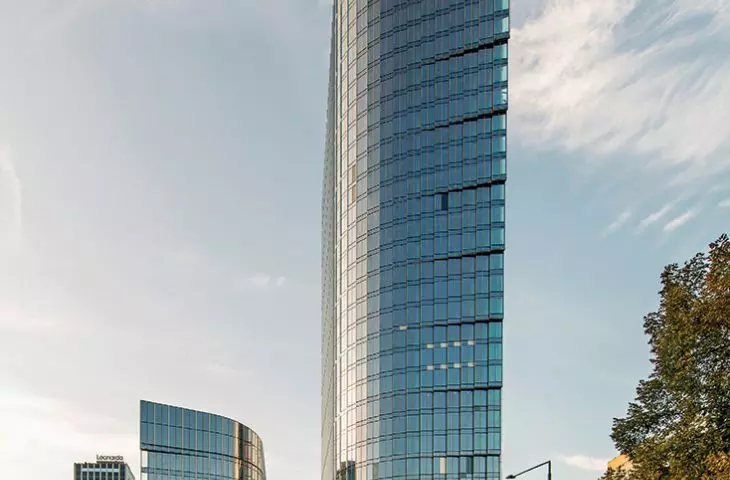

MENNICA LEGACY TOWER POLSKA, WARSZAWA

MINT LEGACY TOWER POLAND, WARSAW

© ALUPROF

Models of Aluprof systems for designing in BIM technology are available on the WEBSITE .

For more information, visit the company's ALUPROF SA page on the A&B portal.
