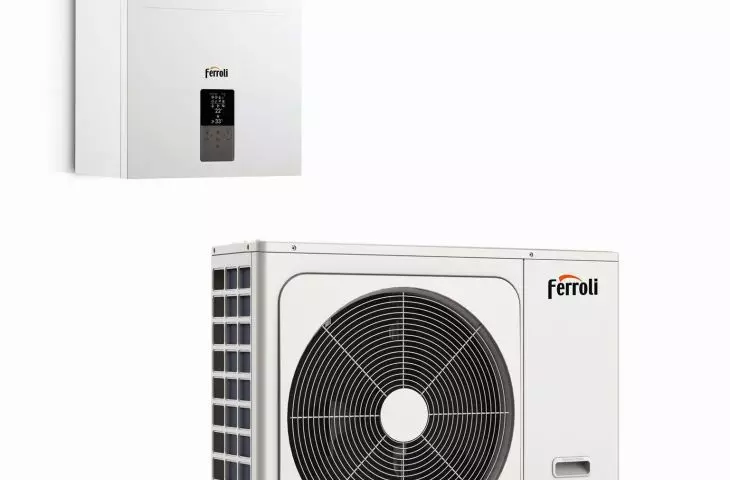

Omnia HY
Omnia HY
Omnia HY
Omnia HY
Omnia HY
Omnia HY
Omnia S
Omnia S
Omnia S
Omnia S
Omnia S
Omnia S
Omnia ST
Omnia ST
Omnia ST
Omnia ST
Omnia ST
Omnia ST

Ferroli OMNIA - A comprehensive family of heat pump solutions for professionals

  • Ferroli OMNIA - A comprehensive family of heat pump solutions for professionals
  • Omnia Life M Series
  • Omnia Life M Series
  • Omnia SW-T
...
Show more +21

Ferroli, a recognized leader in the HVAC sector combining innovation, sustainability and Made in Italy design, presents the comprehensive OMNIA family of advanced air-to-water heat pumps designed for demanding residential and commercial projects. It is a comprehensive portfolio of solutions for architects and designers looking for a combination of superior energy efficiency, eco-friendly performance and application versatility.

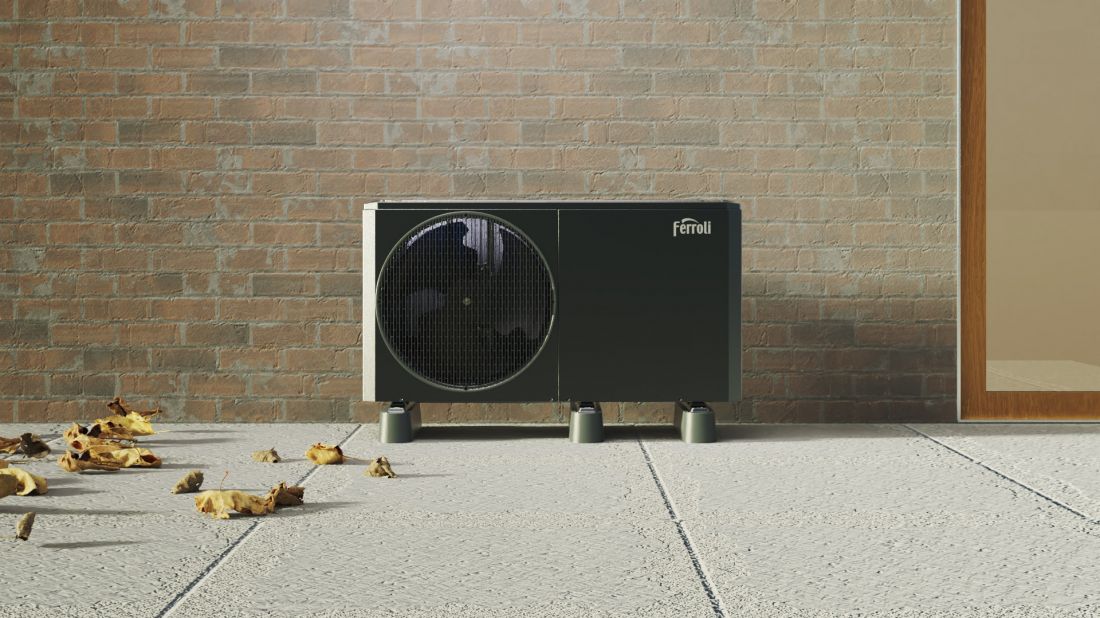

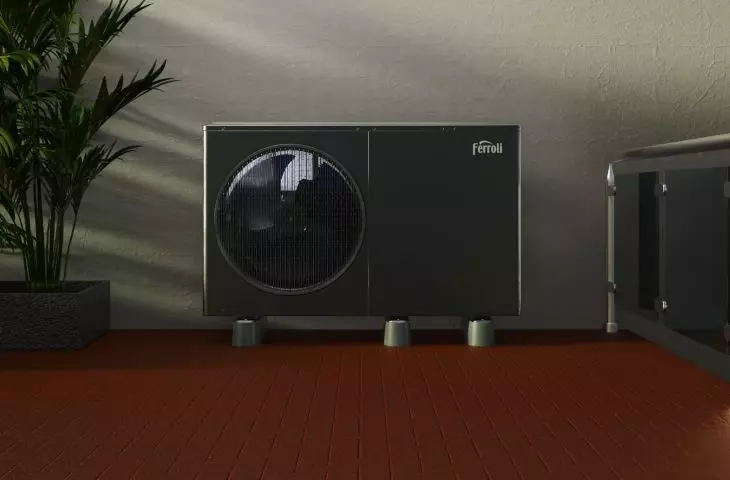

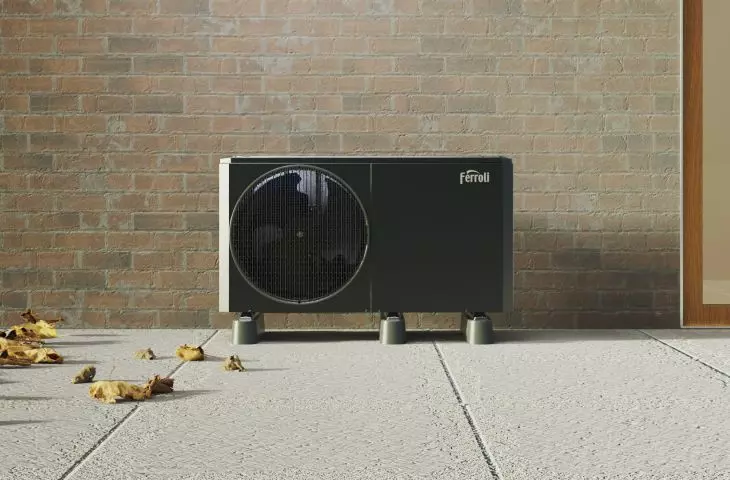

OMNIA Life M 26T÷35T - High-power heat pumps for commercial buildings

R290 monoblock design for medium and larger facilities

The OMNIA Life M series in the 26 to 35 kW power range (26T-35T models, 380V three-phase supply) responds to the needs of medium-sized residential and commercial installations. The units use environmentally friendly refrigerant R290 (GWP: 3) and are equipped with a DC inverter compressor with a wide range of power modulation for maximum energy efficiency.

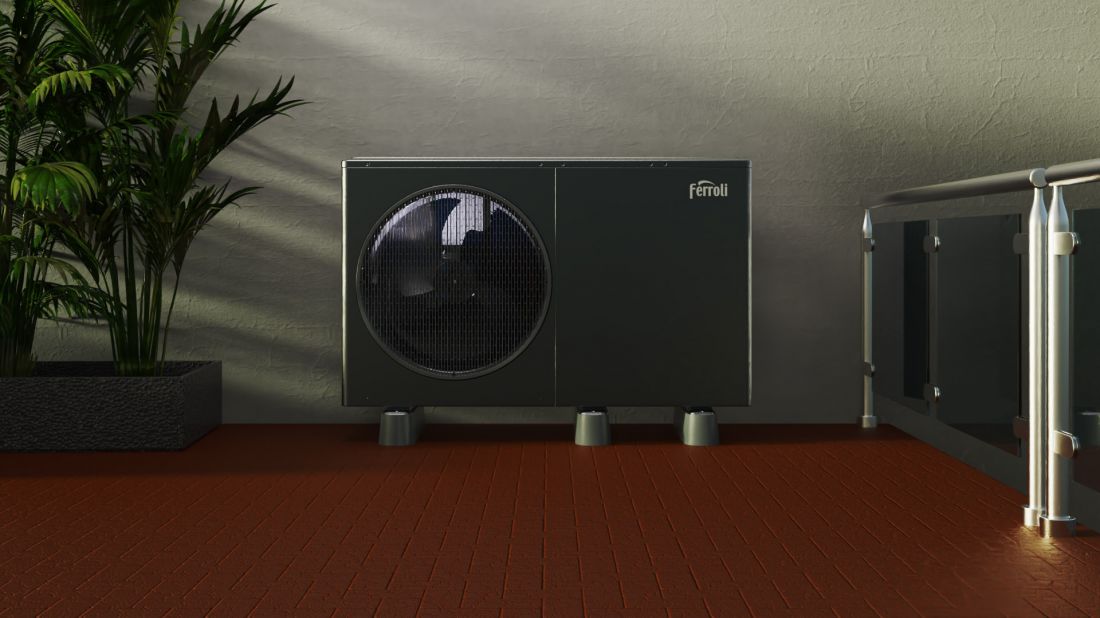

Seria Omnia Life M

Omnia Life M series

© Ferroli

Technical parameters and application range:

  • Wide operating range from -25°C to +46°C outside temperature

  • Heating water production up to 75°C (80°C at outdoor temperatures down to -20°C)

  • Domestic hot water up to 70°C from compressor operation only

  • Highest energy efficiency class A+++ for 35°C flow temperature and A+++ for 55°C temperature

  • High seasonal efficiency ratings - SCOP up to 4.95 and SEER up to 5.21

This versatility of performance allows use in a variety of systems - from low-temperature underfloor heating in new buildings, to fan coils and radiant panels, to traditional radiator systems in retrofits, as well as hot water preparation using an external tank.

Seria Omnia Life M

Omnia Life M series

© Ferroli

Cascade configurations: For larger facilities, OMNIA Life M pumps support installation in multiple cascade configurations, consisting of one MASTER unit - managed directly by the controller - and up to five SLAVE units of different capacities. The cascade system provides flexibility, redundancy and central management of DHW production.

Monobloc design: Supplied as complete units with integrated hydronic kit, they provide fast, safe and practical installation without the need for an F-gas certified installation team.

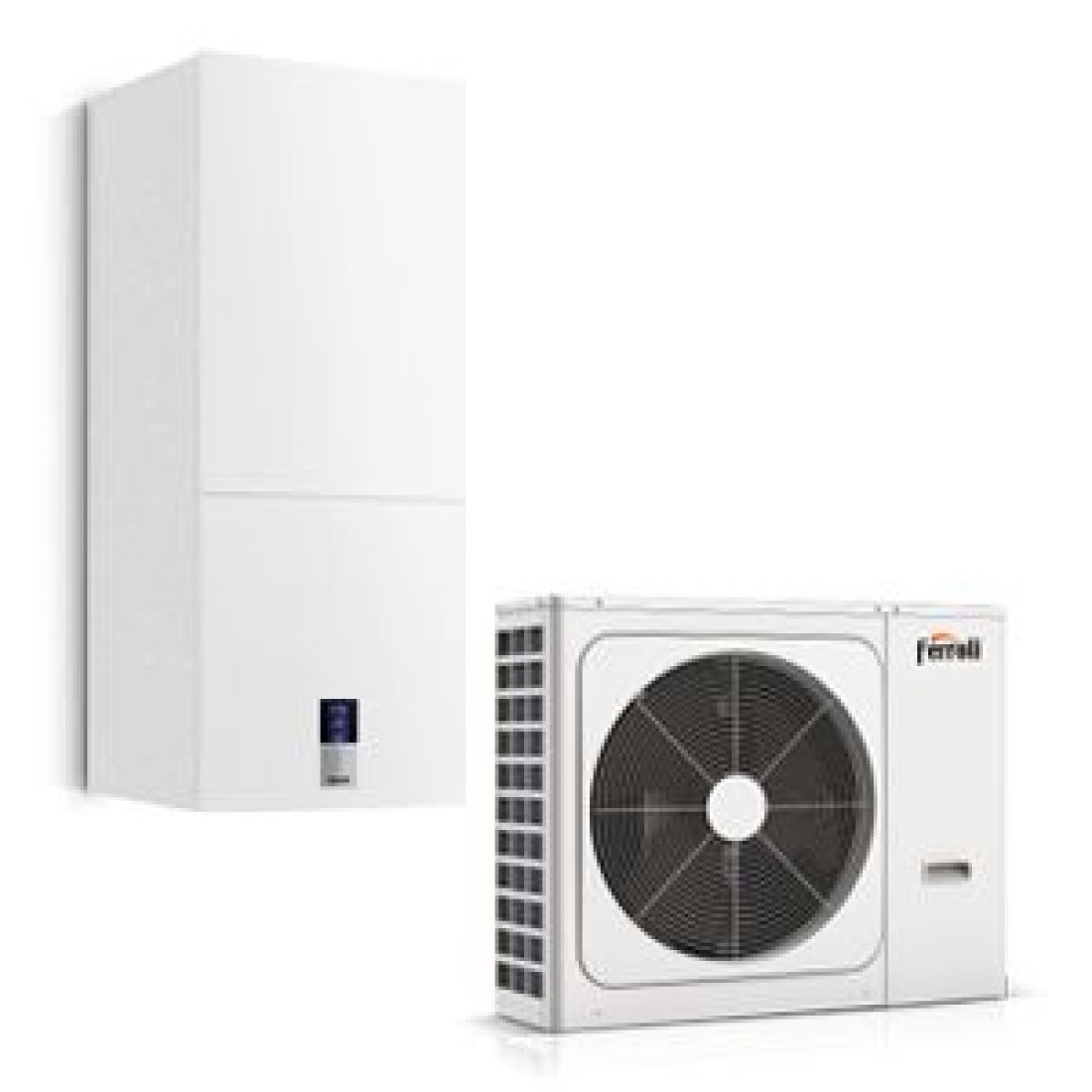

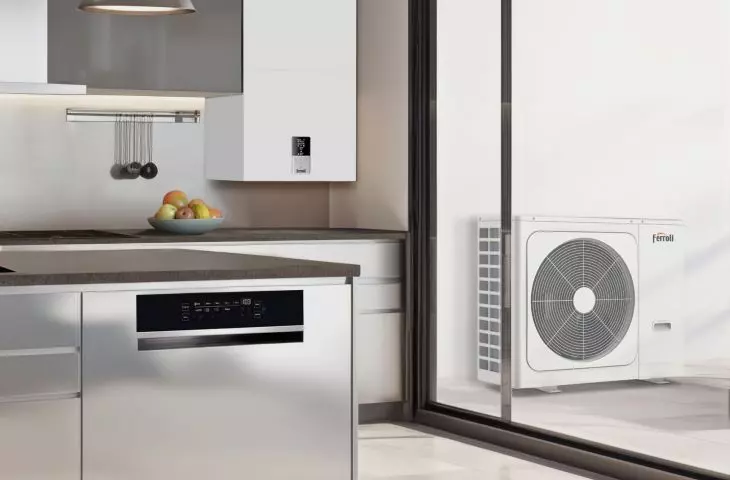

Omnia SW-T

Omnia SW-T

© Ferroli

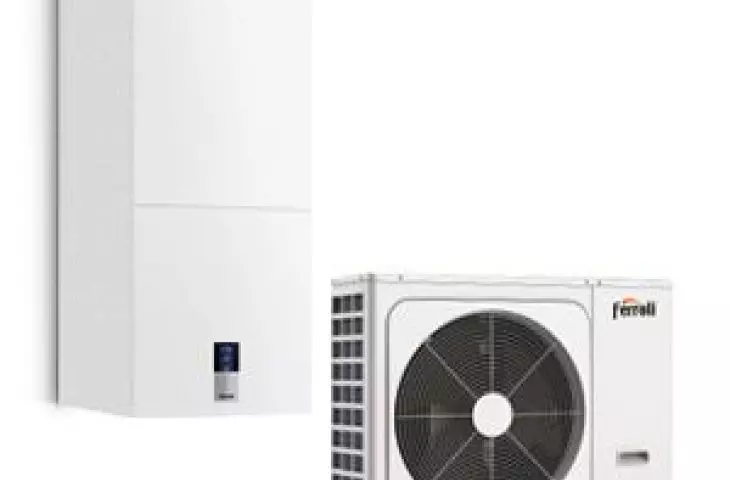

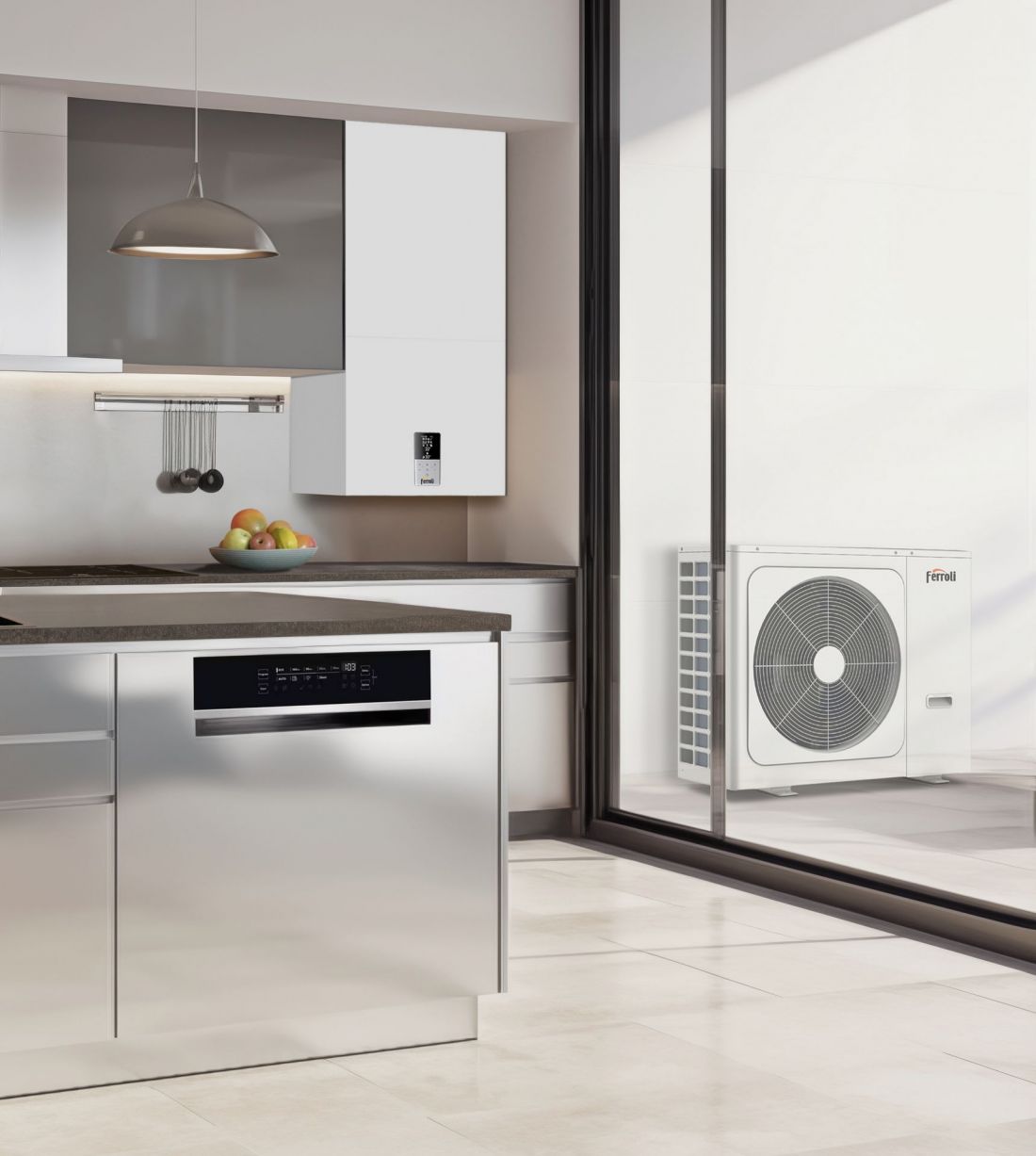

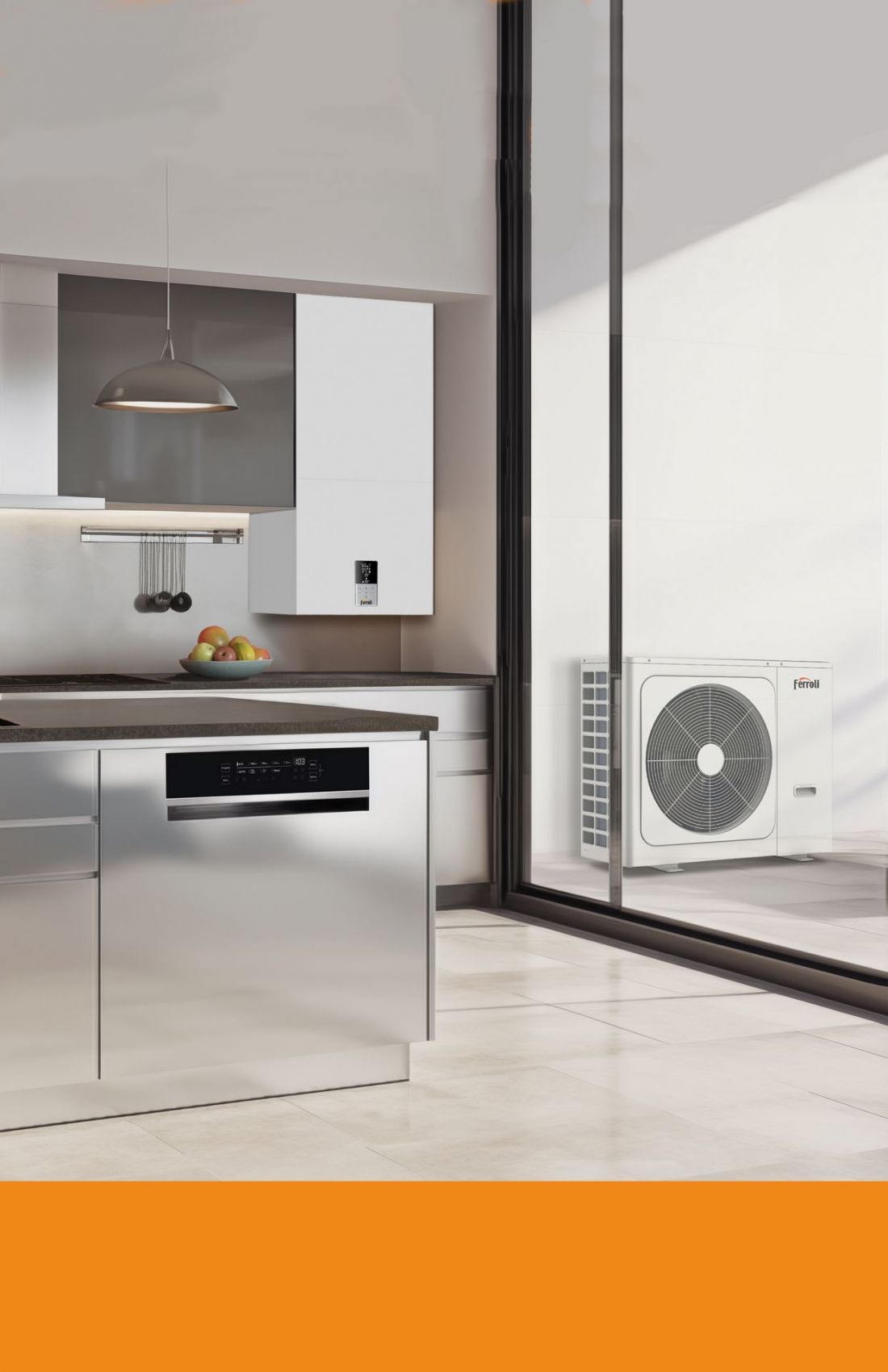

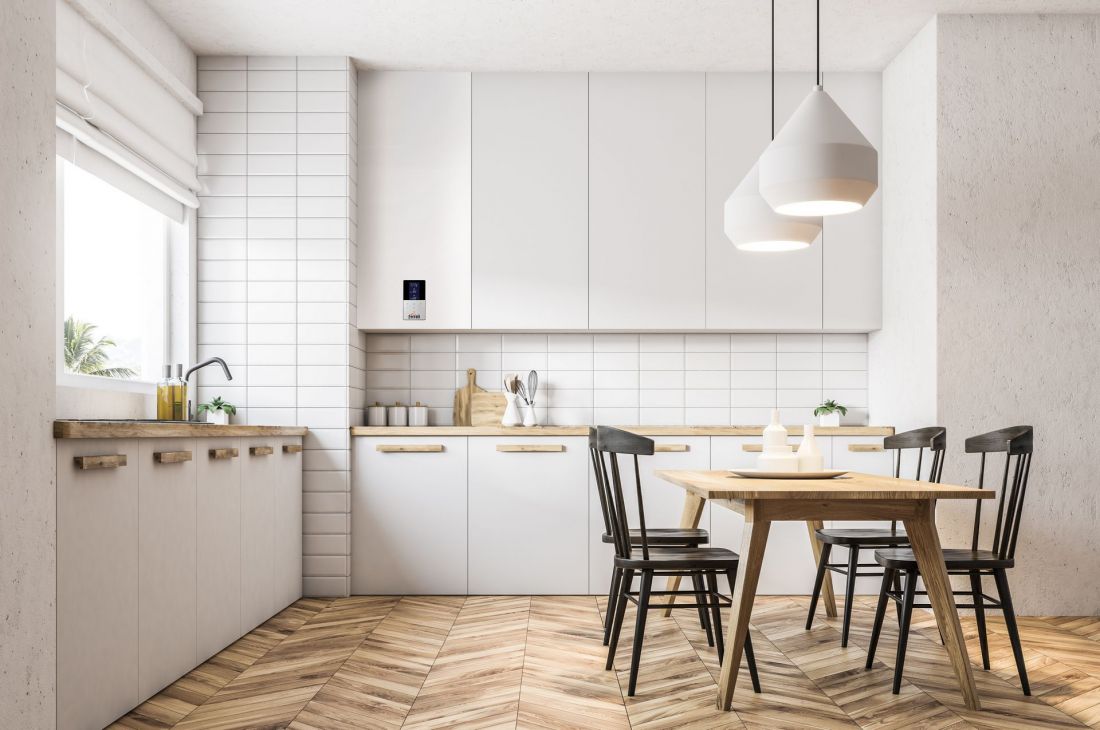

OMNIA SW-T - Compact split solution with integrated storage tank

Ideal for small and medium-sized residential properties

OMNIA SW-T is a split system with an inverter heat pump for heating, cooling and DHW, comprising 2 units - an outdoor unit with refrigeration and an indoor unit for wall mounting.

Omnia SW-T

Omnia SW-T

© Ferroli

Available models:

  • OMNIA SW-T 4 (4.2/4.5 kW)

  • OMNIA SW-T 6 (6.35/6.5 kW)

  • OMNIA SW-T 8 (8.4/8.3 kW)

  • OMNIA SW-T 10 (10.0/9.9 kW)

Omnia SW-T

Omnia SW-T

© Ferroli

Key features:

  • Integrated hot water storage tank with a capacity of 100 liters

  • Indoor unit equipped with: electric heater (3 kW), hot water buffer. (capacity 15 l), central heating and hot water expansion vessels, plate heat exchanger, 3-way central heating / hot water switching valve, central heating flow heater, circulating pump, safety valve

  • Design suitable for wall mounting and easy replacement in place of a heating boiler

  • Very high flow temperature up to 65°C, with the possibility of heating DHW up to 60°C

  • Operation of the unit up to the minimum outdoor temperature: down to -25°C

  • Sound power reduced to 56 dB(A)

  • High average annual efficiency ratio SCOP: up to 5.21

Omnia SW-T

Omnia SW-T

© Ferroli

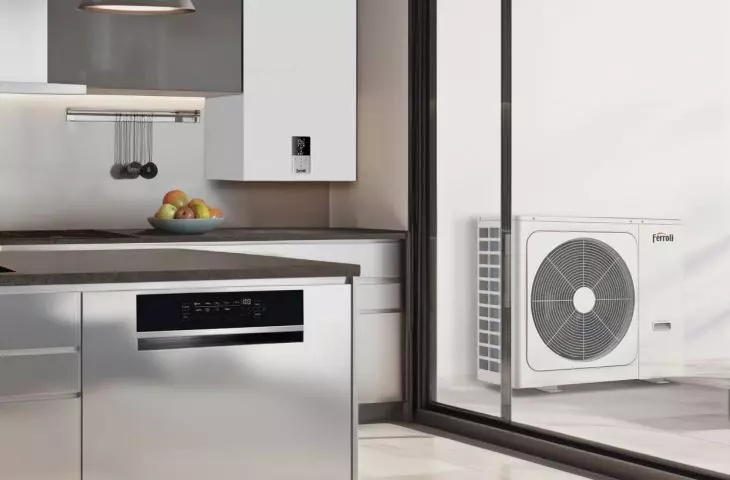

OMNIA SW-T is a unique and unprecedented split system on the market with a compact wall-mounted indoor unit, and at the same time an excellent choice for new and retrofit buildings. The solution is ideal for retrofit projects where space is limited and replacing a gas boiler with a heat pump requires a compact solution.

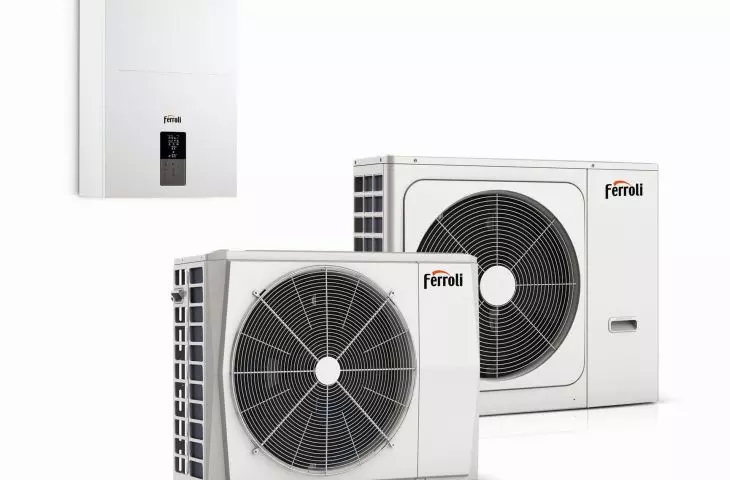

Omnia S

Omnia S

© Ferroli

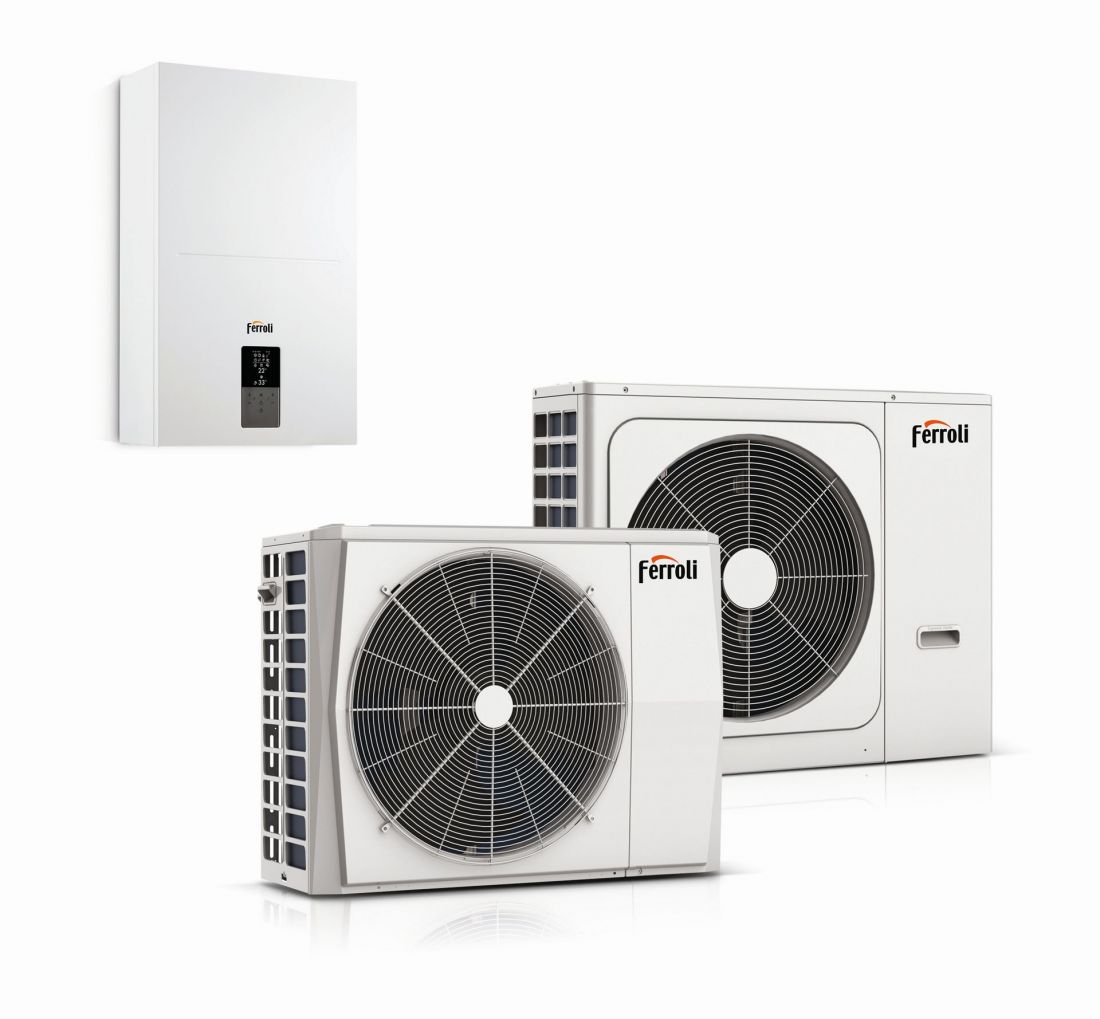

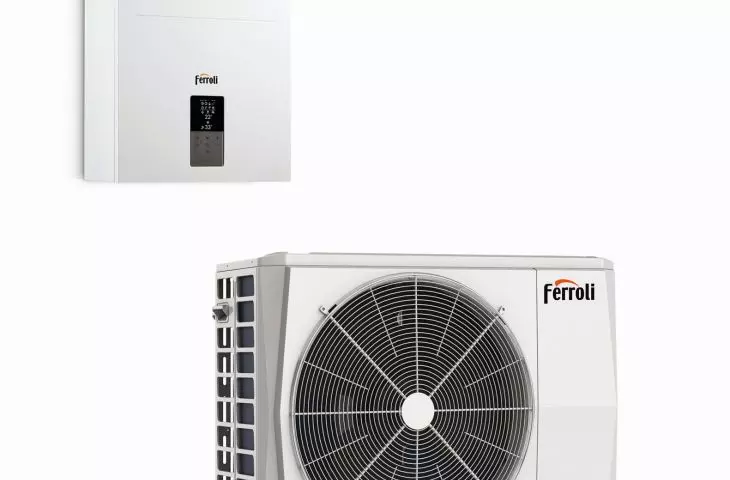

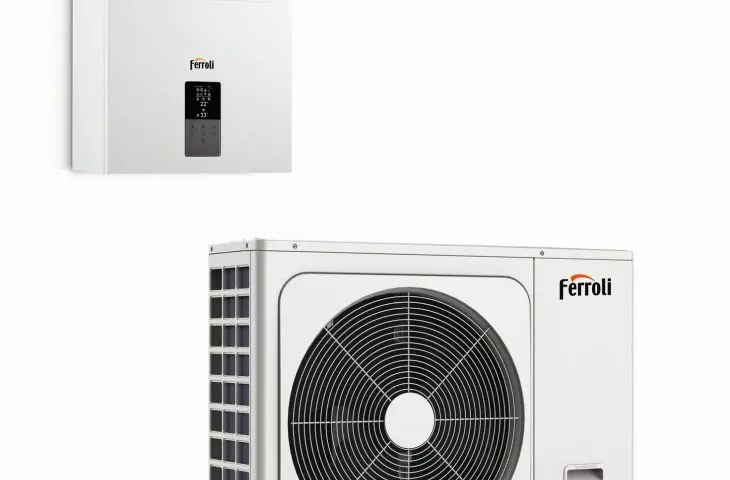

OMNIA S 3.2 - Versatile split heat pumps for a variety of applications

Full design flexibility without integrated storage tank

New series of Full Inverter split heat pumps with eco-friendly refrigerant R32. The series consists of an outdoor unit containing the main components of the refrigeration circuit and an indoor unit that contains the main components of the water heat source circuit.

Omnia S

Omnia S

© Ferroli

Available models:

  • OMNIA S 3.2 HI3 4 (4.20/4.5 kW) - single-phase

  • OMNIA S 3.2 HI3 6 (6.35/6.5 kW) - single-phase

  • OMNIA S 3.2 HI3 8 (7.45/8.0 kW) - single-phase

  • OMNIA S 3.2 HI3 10 (10.0/9.9 kW) - single-phase

  • OMNIA S 3.2 HI16 12T (12.1/12.0 kW) - three-phase

  • OMNIA S 3.2 HI16 14T (14.5/12.9 kW) - three-phase

  • OMNIA S 3.2 HI16 16T (15.9/13.6 kW) - three-phase

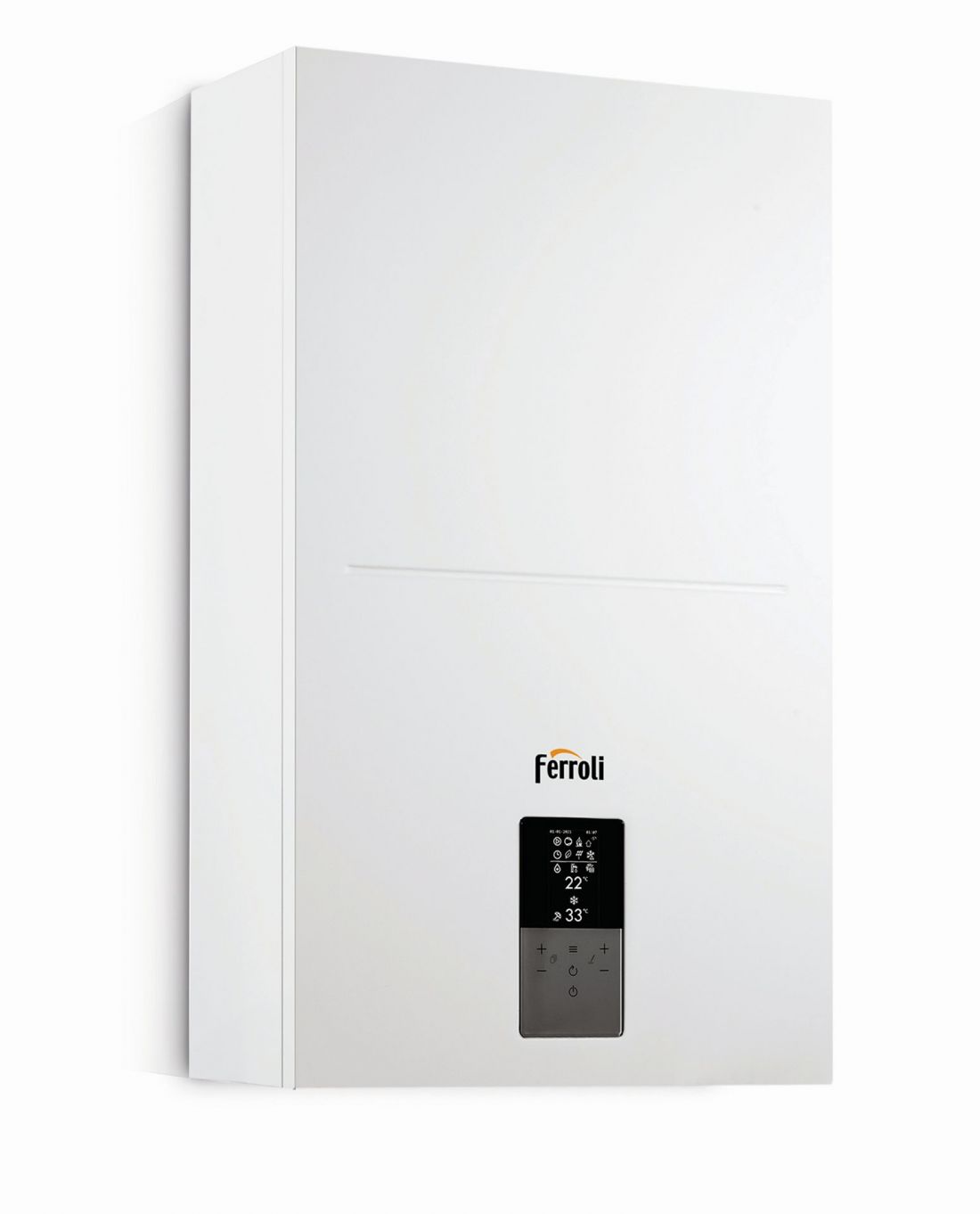

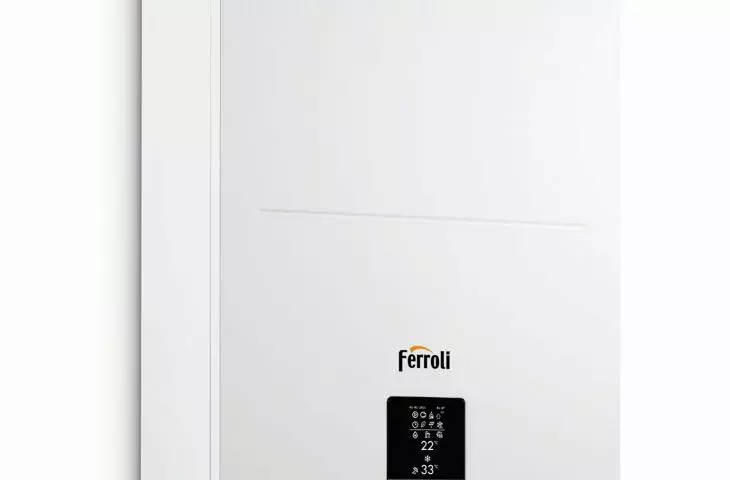

Indoor unit equipment:

  • Built-in electrical integration of 3kW for single-phase models and 6kW for three-phase models

  • Energy-efficient circulating pump with DC motor

  • Brazed plate heat exchanger made of high-quality stainless steel

  • 3-way valve to switch between central heating and hot water mode.

  • Automatic vent, expansion vessel, safety valve, water filter

Operating parameters:

  • Operation at temperatures down to -25°C outside

  • Production of heating water up to 65°C, ideal for radiant systems, fan coils, radiators and production of DHW through an external storage tank

  • Efficiency classes A+++ (35°C) and A++ (55°C)

Installing a split system offers the undeniable advantage of avoiding the problem of freezing, even at the lowest temperatures (down to -25°C) and when there is no electricity supply.

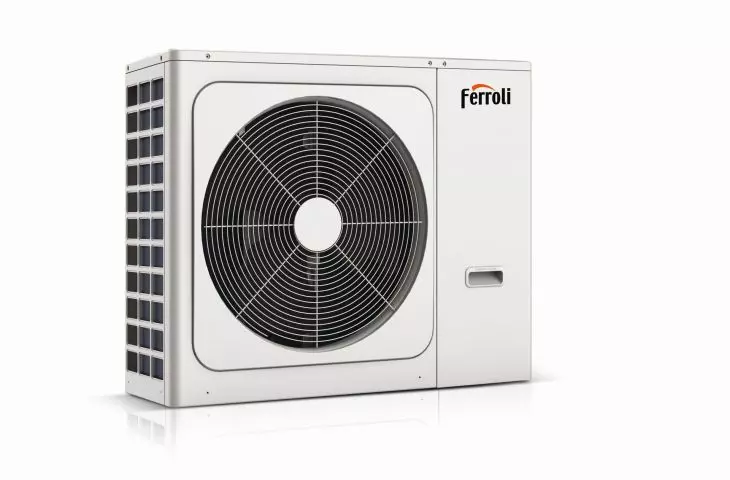

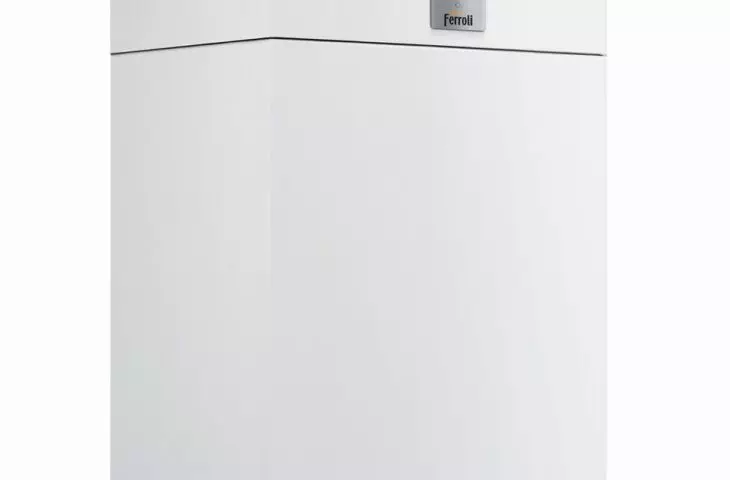

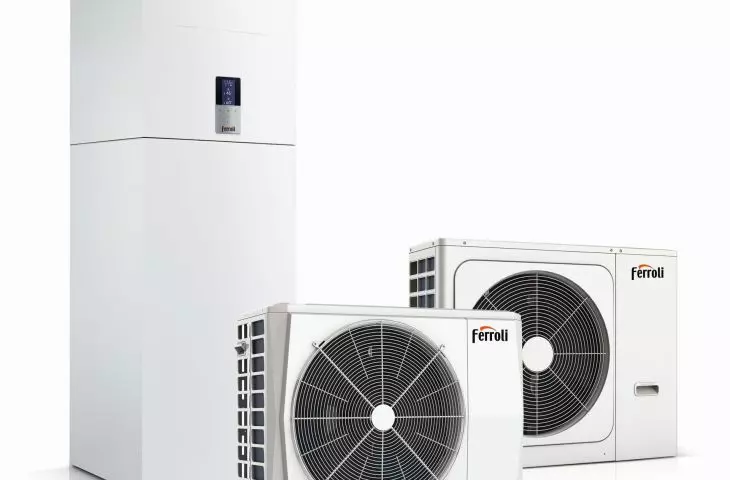

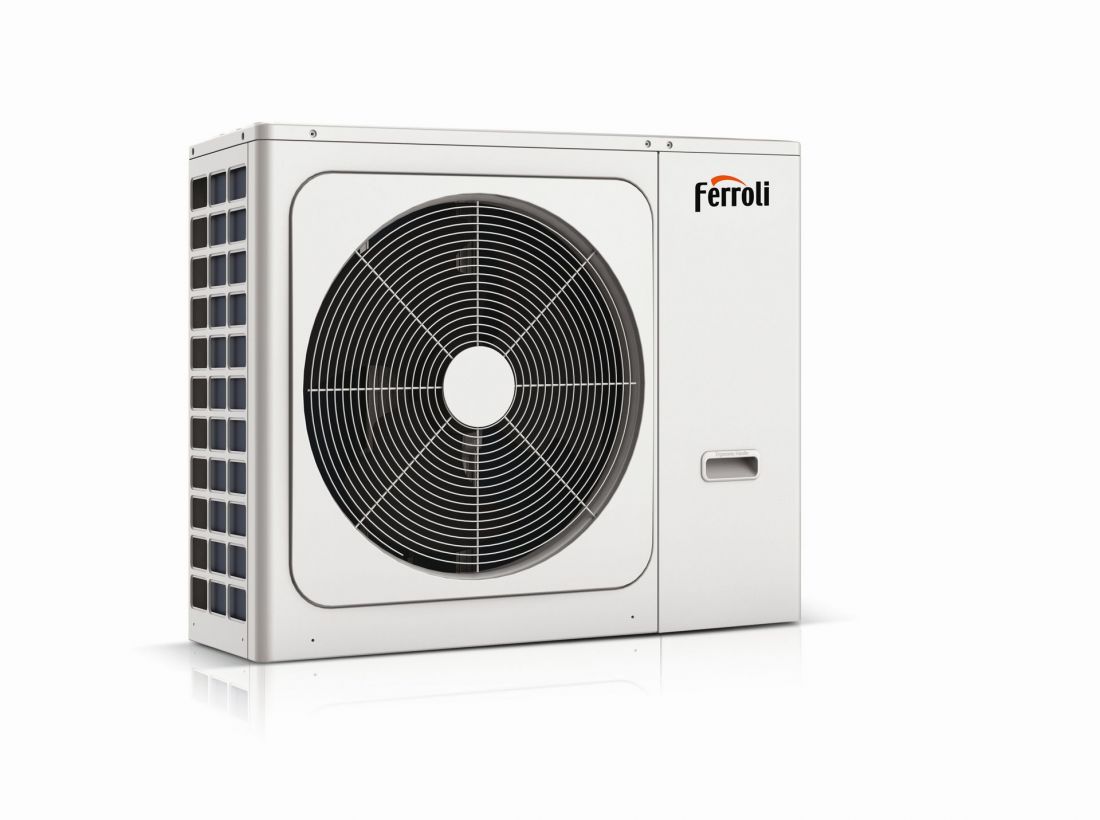

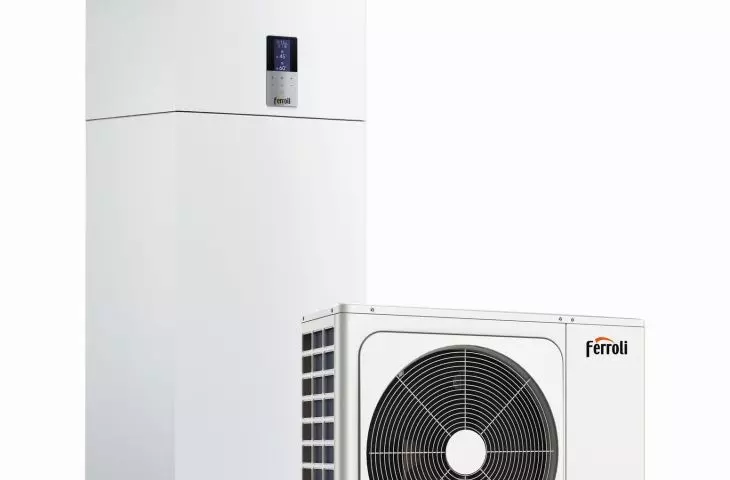

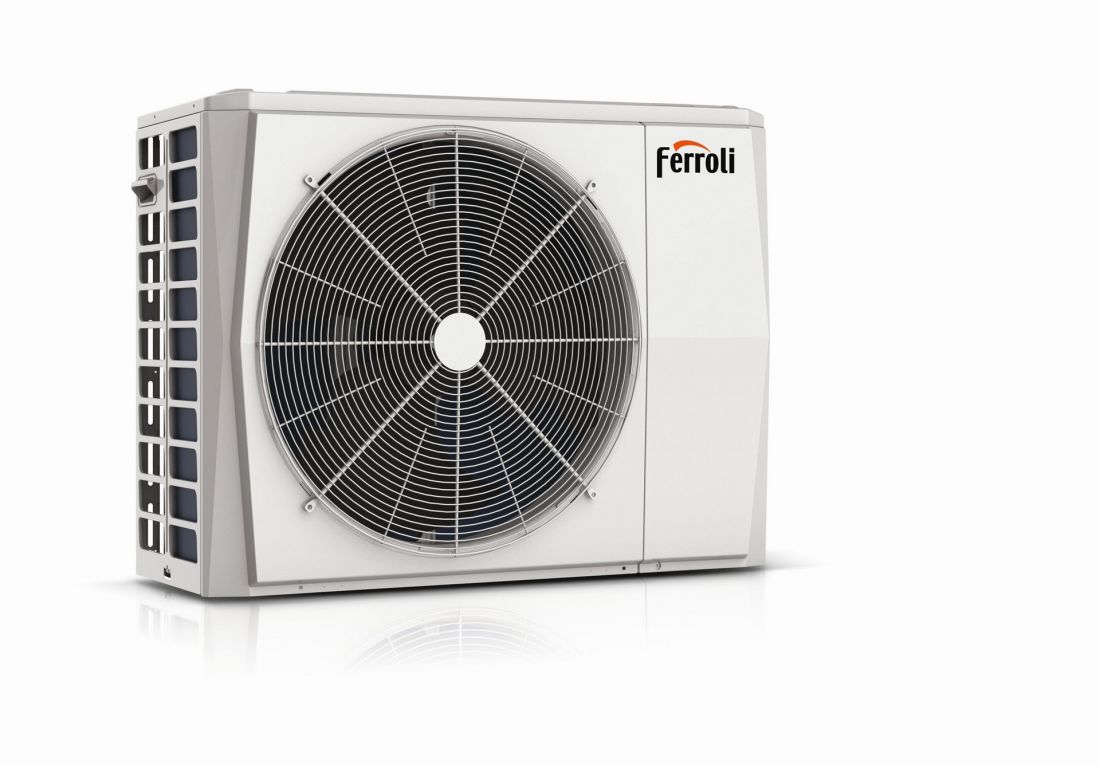

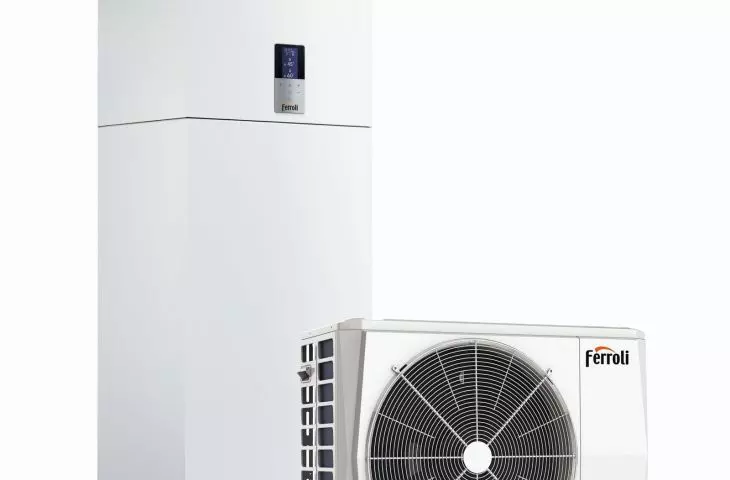

Omnia ST

Omnia ST

© Ferroli

Common technological features of the OMNIA family

Full Inverter Technology: Ferroli's new Full Inverter concept uses DC inverter modulation in the three main energy-consuming components: compressor, fan and pump. This allows for the modulation of distributed power by precisely tracking the heat load, enabling very high energy efficiency and significant energy savings for the end user. In addition, the Full Inverter design reduces inrush current, avoiding fluctuations in the electrical grid, improving component life.

Advanced controls and features:

Integration with renewable energy sources:

  • Smart Grid input from photovoltaic installation and grid. Unit equipped with 2 digital contacts to manage input from photovoltaic system and grid - famous Smart Grid contacts used to optimize consumption and save on bills

  • The first contact (EVU) informs the heat pump when the photovoltaic system is producing energy: the pump increases the set point of DHW to improve self-consumption

Domestic hot water management:

  • Fast DHW function to prioritize DHW production by activating all available power sources so that the DHW cylinder reaches the set point in the shortest possible time

  • Anti-legionella function that allows you to set weekly cycles. For it to work effectively, a heater must be installed in the DHW storage tank or an integrated boiler

Operating modes:

  • Monovalent and Bivalent modes (cooperation with boiler or other heat sources)

  • Operation of 2 heating circuits (including 1 with mixer)

  • Silent mode - reduction of maximum compressor frequency and fan speed

  • ECO mode with dedicated setpoint

  • Weekly schedule

Remote management:

  • Cooperation with CONNECT CRP system for heat pump control via Wi-Fi and FERROLI CRP mobile app (iOS and Android)

  • New generation automation with touch control panel using Capsense technology

Omnia ST

Omnia ST

© Ferroli

Ecology and regulatory compliance

OMNIA Life M (R290): Natural propane refrigerant with a GWP of only 3 ensures virtually zero greenhouse effect and full compliance with future EU regulations.

OMNIA SW-T and OMNIA S (R32): The environmentally friendly R32 refrigerant has a GWP of 675, about one-third the GWP of R410a, helping to reduce CO₂ equivalent emissions.

Compliance with the Clean Air Program: all units in the OMNIA series meet the requirements of the CLEAN AIR program, making them eligible for Polish subsidies for heat source replacement.

Omnia ST

Omnia ST

© Ferroli

Designer summary

Ferroli's OMNIA family offers a comprehensive spectrum of solutions to suit a variety of design needs:

OMNIA Life M 26T-35T - for medium and large commercial buildings requiring high power output, with cascade configurations and superior environmental performance (R290)

OMNIA SW-T - for small and medium-sized residential buildings, ideal for retrofitting, with built-in 100L storage tank and compact wall-mounted design

OMNIA S 3.2 - a universal split solution for projects requiring flexibility in DHW tank selection and full control over the hydraulic configuration

All series have in common:

  • Versatility - adaptation to low-temperature and high-temperature systems

  • Efficiency - A++ and A++ classes with high SCOP/SEER ratios

  • Ecology - R290 or R32 refrigerants compliant with future regulations

  • Intelligence - advanced control with PV and Smart Grid integration

  • Quiet operation - noise levels from 33 dB(A) (Life M quiet mode) to 56 dB(A)

These are future-proof investments that provide comfort for users, savings for investors and peace of mind for designers thanks to the proven technology of Ferroli - a leader in the comfort and HVAC sector that has been providing quality solutions to support the energy transition for years.

For more information, visit the company's FERROLI POLAND page on the A&B portal.
