How to design effective insulation for a ventilated facade on a lightweight structure?

from the series "Facade and wall materials - trends 2025"

A ventilated facade is a proven way to achieve a durable and energy-efficient building - provided it is designed well. How can you avoid insulation mistakes that can lead to dampness, heat loss and costly repairs? In this guide you will find specific answers and recommendations based on real-life experience.

A typical ventilated facade consists of several layers: the supporting structure, the substructure (usually made of steel or aluminum profiles), the insulation layer, the ventilation gap and the facade cladding. The most important element to ensure the effectiveness of the entire system is the selection of proper thermal insulation. Depending on the design requirements, a single or double-layer system can be used - the latter, although more complex, offers higher thermal efficiency and better protection against wind and moisture. A combination of two stone wool slabs proves to be particularly effective: PAROC Ultra as an inner layer and PAROC Cortex b as an outer layer of insulation and wind protection. And it is this solution that we will focus on.

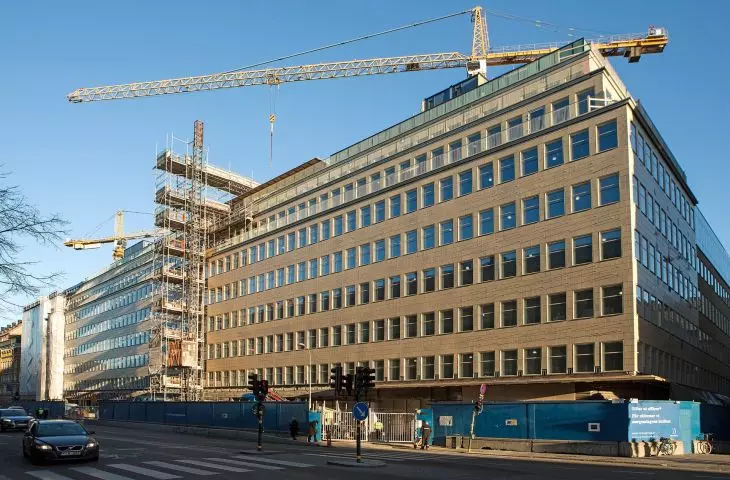

ventilated facade

© PAROC

What affects the effectiveness of insulation and which system to choose?

The insulation of a ventilated facade cannot be selected in isolation from the conditions and characteristics of the building. The height of the building directly affects the requirements for the width of the ventilation gap and the area of circulation openings - the higher the building, the greater the forces acting on the facade and the longer the airflow path. Equally important is the type of cladding: heavy concrete slabs require different support spacing than lightweight composite panels. On top of this, environmental conditions - wind exposure, sunlight or humidity levels - have a real impact on the performance of the envelope. An effective insulation design must take these variables into account to guarantee a highly energy-efficient system.

A double-layer insulation system based on PAROC Ultra and PAROC Cortex b slabs is a solution that is widely used in ventilated facades on lightweight frame structures (wood and metal). This system allows you to combine high thermal insulation efficiency with the partition's resistance to wind and moisture, while maintaining the stability of the entire system. The inner layer made of flexible PAROC Ultra stone wool has excellent elasticity, so it tightly fills the spaces between the elements of the grid. The installation is press-fit - between brackets or with properly cut openings, effectively minimizing the risk of thermal bridges. The outer insulation layer, on the other hand, consists of 30 or 50 mm thick PAROC Cortex b panels. Stacked staggered with respect to the bottom layer, it has a double function: it improves the thermal performance of the entire envelope and acts as an effective wind shield. With a diffusion-open outer shell, the material protects the inner layers from rain and wind gusts, while allowing efficient drainage of moisture from the structure. The use of PAROC Ultra + PAROC Cortex b insulation system is particularly suitable for multi-story buildings, where not only thermal performance, but also mechanical resistance and reliability of the partition in diverse environmental conditions are important.

Paroc ultra

© PAROC

Why doesn't the facade work as it should? Check the gaps and bridges!

The ventilation gap is a critical element of any facade - its task is to drain moisture and ensure free airflow between the insulation layer and the cladding. A gap that is too narrow or intermittent can disrupt circulation and lead to dampness. The minimum width depends on the height of the building: from 20 mm for low structures to at least 50 mm for buildings over 25 m. Equally important are inlet and outlet openings - their area should be a minimum of 50 cm² for every 1 m² of facade. Underestimation of these values is a common design error, which can be easily eliminated by remembering to properly place them, secure them and maintain permeability throughout the system. In the table below we present detailed calculation parameters for ventilated facades on wood or metal frame structures, finished with various types of facade panels or brick masonry.

Table: The data used in the table are from: https://www.paroc.com/pl-pl/applications/building-insulation/walls/ventilated-facades

In facade systems based on lightweight metal or wood structures, point thermal bridges arising at the bracket locations are a particular challenge. Any element piercing the insulation layer reduces its effectiveness, and the thicker the insulation, the longer the cantilever and the greater the risk of thermal loss. That's why it's so important to place PAROC Ultra panels precisely at the joints, and to install the PAROC Cortex b layer with the joints offset from the underlying layer. Additional sealing with PAROC XST 041 and XST 042 tapes increases the tightness of the system and reduces the occurrence of linear thermal bridges. As a result, a very low heat transfer coefficient U - as low as 0.16 W/(m²-K)- can be achieved when using panels 150 mm and 50 mm thick, respectively.

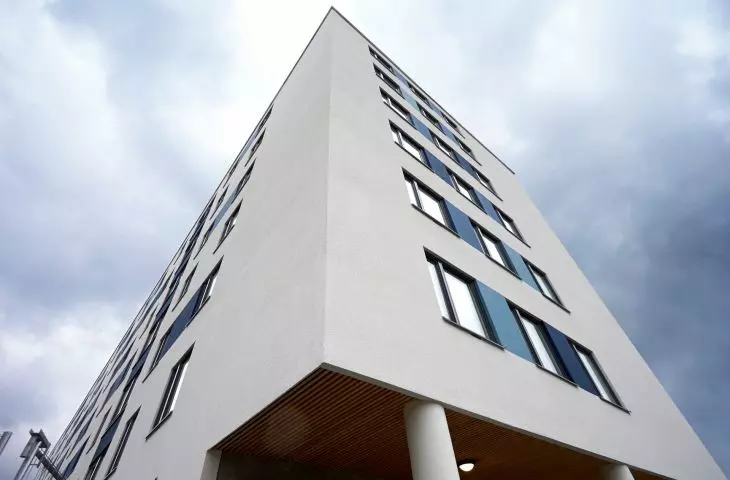

facade insulation

© PAROC

The effect is determined by the details

The effectiveness of a ventilated facade is determined not by the choice of products alone, but by the consistency of the entire project. Correct joint geometry, precise bracket placement, efficient airflow and the right installation sequence are crucial. Only by taking all these elements into account can a durable, safe and energy-efficient partition system be achieved - without the risk of moisture and unnecessary heat loss.
