Modern VRF V8 systems from Midea

07 of December '24
Safety in all conditions
Cascade operation with a capacity of up to 270 kW in one system
Midea V8 series units (upper air discharge) have a fully sealed electronics box that improves the unit's performance in extremely adverse or extreme conditions
HyperLink is Midea's original idea, a self-designed and patented microprocessor communication chip
To minimize the risk of interruption of operation, Midea's V8 series units have as many as 19 sensors (top ejection systems) that read and record the system's operating parameters in real time.
Extremely quiet systems - available, up to 15 levels of muting during operation

Safety in all conditions

© ZYMETRIC

  • Safety in all conditions
  • Cascade operation with a capacity of up to 270 kW in one system
  • Midea V8 series units (upper air discharge) have a fully sealed electronics box that improves the unit's performance in extremely adverse or extreme conditions
...
Show more +3

Developments in HVAC (heating, ventilation and air conditioning) technology are bringing new opportunities for designers and builders, and Midea V8 Variable Refrigerant Flow (VRF) systems are a milestone in efficient and flexible climate management. With advanced features, a wide selection of configurations and innovative technologies, these systems meet the requirements of today's commercial, residential and public buildings.

Aby zminimalizować ryzyko przerwania ciągłości pracy agregaty serii V8 Midea posiadają aż 19 czujnikow (systemy z górnym wyrzutem powietrza), które odczytują oraz rejestrują parametry pracy układu w czasie rzeczywistym.

To minimize the risk of interruption of operation, Midea's V8 series units have as many as 19 sensors (top ejection systems) that read and record system operating parameters in real time. - As a result, the system is better monitored and operation is more stable.

© ZYMETRIC

Energy efficiency and advanced technology

One of the most important challenges of today's HVAC systems is the efficient use of energy. The Midea V8, with its META 2.0 technology, dynamically adjusts the evaporating and condensing temperature of the refrigerant to the current needs of the building. This innovative approach reduces energy consumption by up to 28% on an annual basis, while improving occupant comfort.

With full inverter technology in both indoor and outdoor units, the system provides infinitely variable speed control of compressors and motors. The result is more even air distribution and stable room temperatures, while reducing noise emissions.

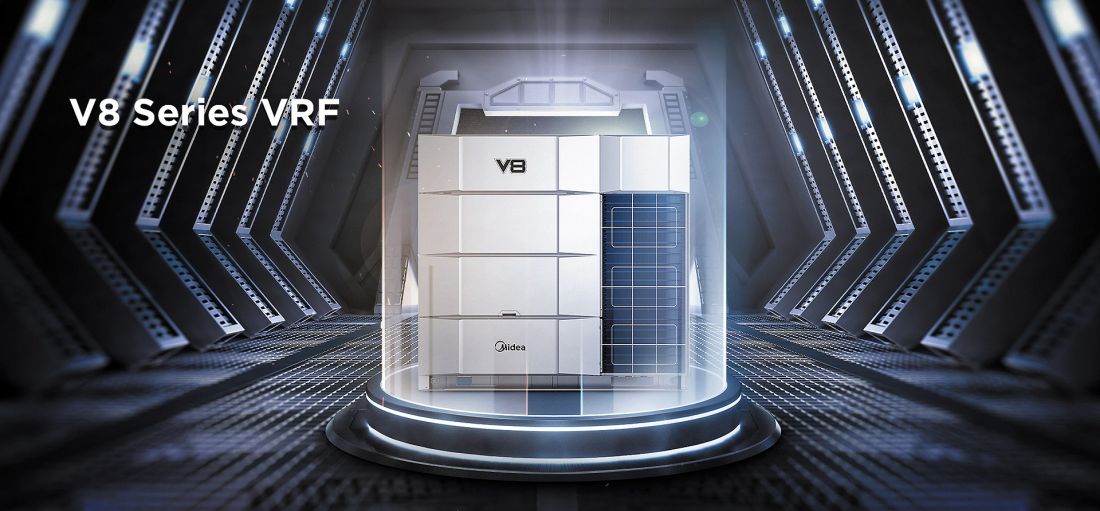

Niezwykle ciche systemy – dostępnych, aż 15 poziomów wyciszenia podczas pracy

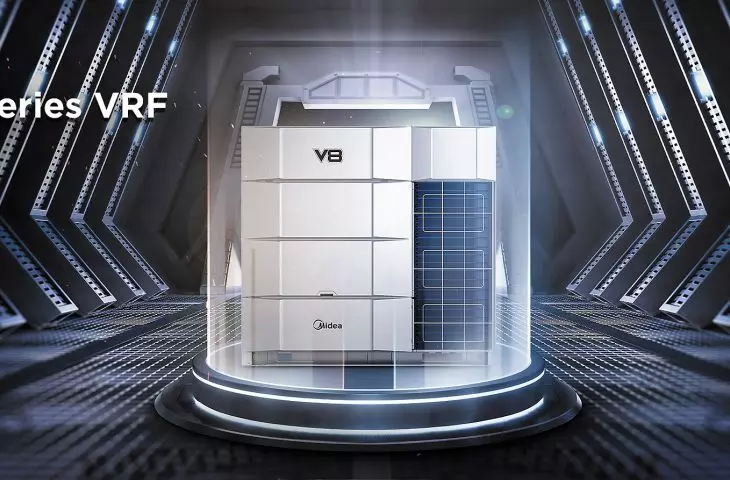

Extremely quiet systems - available, up to 15 levels of muting during operation

© ZYMETRIC

Wide range of indoor units

Midea V8 offers up to 12 different types of indoor units with capacities ranging from 1.5 kW to 56 kW. This allows the system to fit a variety of spaces - from offices, shopping malls and airports to hotels or hospitals. Available include:

  • Cassette units - offering uniform 360° airflow and the option of individual louver control, ideal for open spaces.
  • Ducted units - with low, medium or high compression, perfect for hiding in suspended ceilings.
  • Floor-to-ceiling units - allowing flexible installation in areas with limited space.
  • Wall-mounted units - providing elegant design and ease of use in smaller spaces.

This variety allows the layout to be optimized for functionality and aesthetics, which is crucial for projects with high architectural requirements.

HyperLink to oryginalny pomysł Midea, samodzielnie zaprojektowany i opatentowany mikroprocesorowy układ komunikacyjny

HyperLink is Midea's original idea, a self-designed and patented microprocessor-based communication system - between units that allows you to choose any topology for routing communication cables and ensures that no interference will affect system operation

© ZYMETRIC

Intelligent operating modes

Midea V8 VRF systems offer multiple operating modes that adapt to the needs of users and the specifics of the building:

  • Quiet modes - as many as 15 levels for full VRF systems and 5 for mini-VRFs to reduce noise at night.
  • Priority modes - users can set preferences such as cooling priority, heating priority or automatic selection based on conditions.
  • Night mode - with an option to automatically adjust the temperature for sleeping comfort.
  • Service mode - allowing one indoor unit to be repaired without shutting down the entire system, significantly increasing the flexibility of operation.

Agregaty Midea serii V8 (górny wyrzut powietrza) posiadają całkowicie szczelną skrzynkę z elektroniką, która poprawia działanie urządzenia w skrajnie niekorzystnych lub ekstremalnych warunkach

Midea V8 series units (upper air discharge) have a fully sealed electronics box, which improves the performance of the unit in extremely adverse or extreme conditions

© ZYMETRIC

Flexibility in installation and design

The Midea V8 is distinguished by its ability to operate in systems with installation lengths of up to 1,100 meters and height differences of up to 110 meters. This makes it ideal for large and complex buildings. The ability to oversize the system by up to 200% in single-module units and to combine outdoor units in cascades makes it possible to tailor performance to specific project requirements.

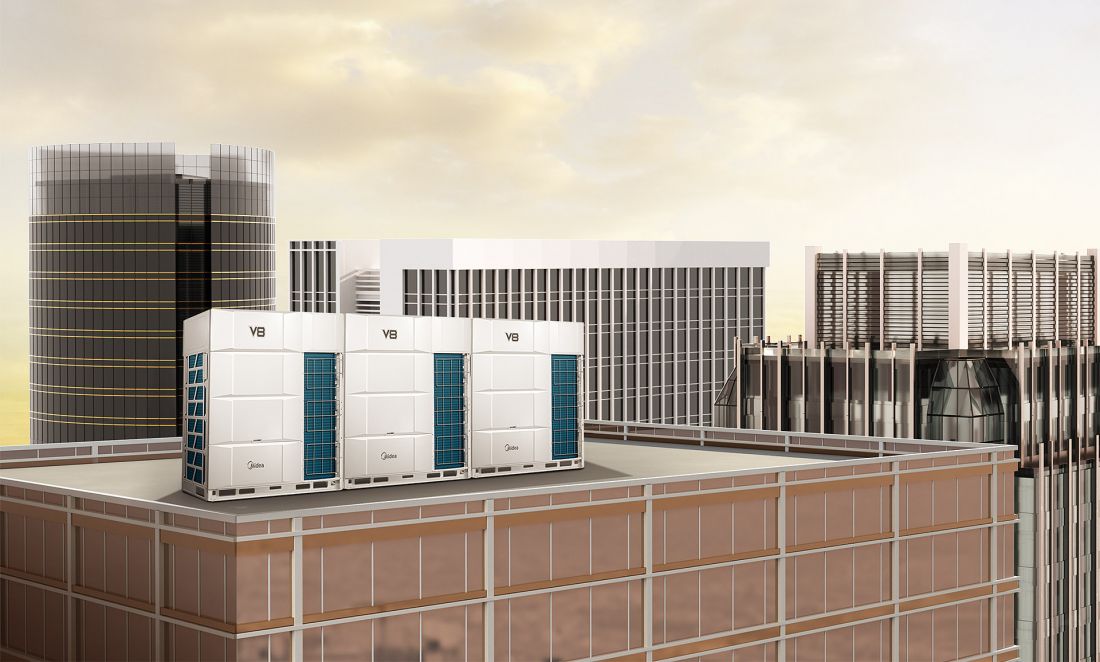

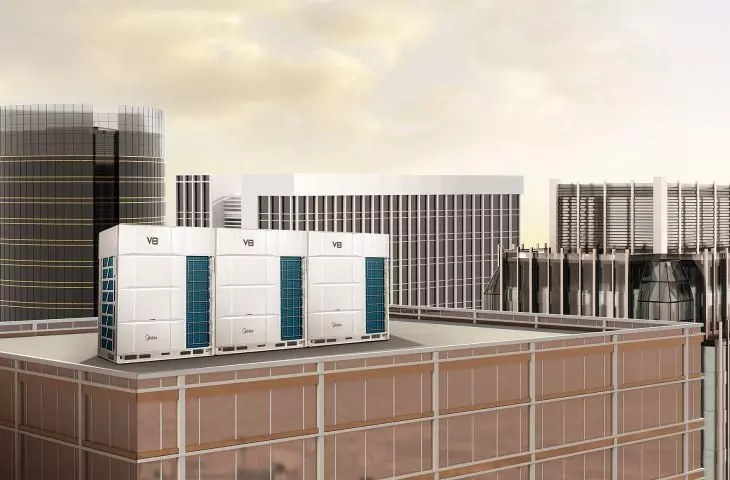

Praca kaskadowa z wydajnością do 270 kW w jednym systemie

Cascade operation with a capacity of up to 270 kW in a single system

© ZYMETRIC

Smart management and service

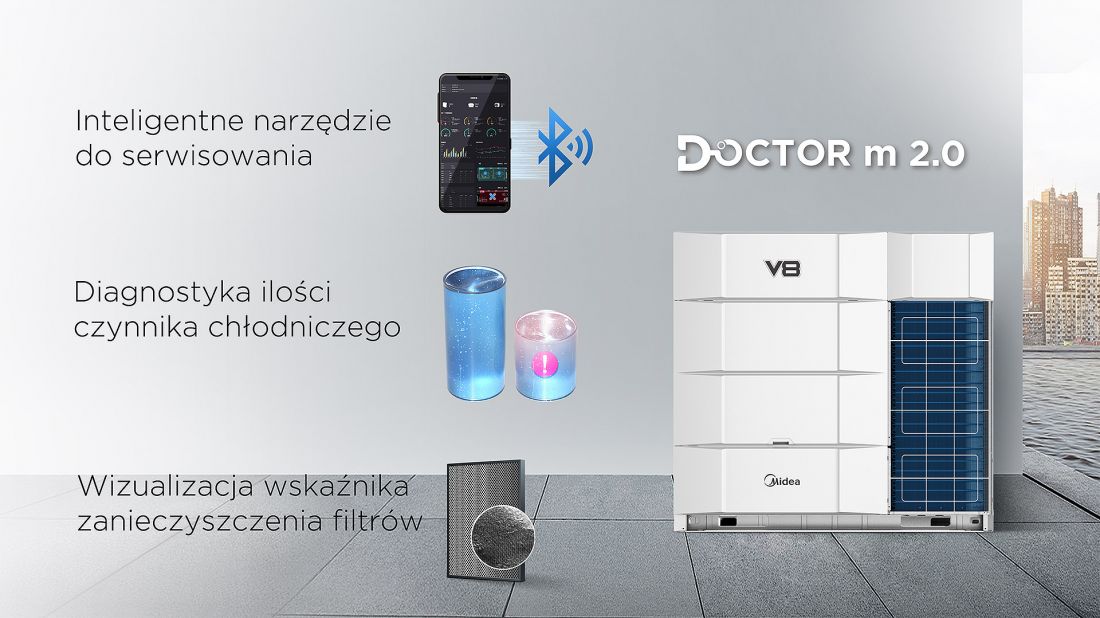

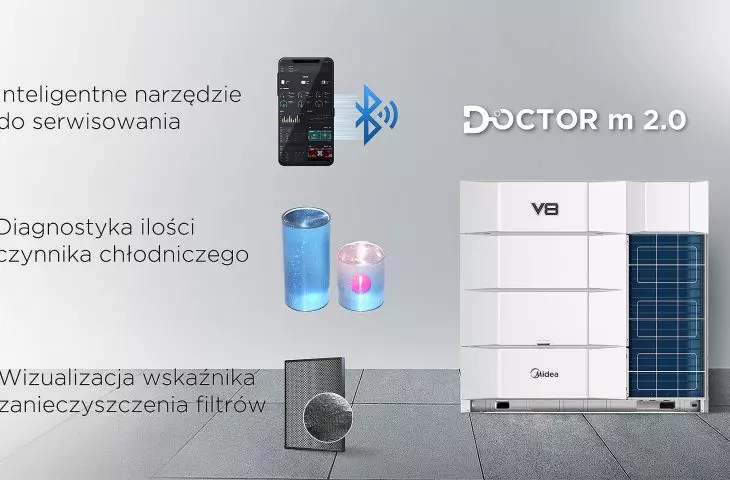

Midea's state-of-the-art V8 systems feature DOCTOR M 2.0 technology, which monitors equipment performance in real time based on artificial intelligence algorithms. By storing the data in the cloud, the service technician can analyze the operating history and take preventive measures before failures occur.
The HyperLink function further simplifies cabling and enables flexible connection topologies such as star, ring and tree. This solution saves installation time and reduces operating costs.

© ZYMETRIC

Comfort and reliability in all conditions

Thanks to advanced technologies such as ShieldBox and EVI technology alternating compressor system, Midea V8guarantees stable operation in extreme conditions - from -30°C in winter to 55°C in summer. Automatic features, such as cleaning units from dust and snow, further increase system durability and reduce service costs.

Bezpieczeństwo w każdych warunkach

Safety in all conditions

© ZYMETRIC

Midea V8 VRF systems offer unparalleled flexibility and innovation, making them ideal for mixed-use projects. With a wide range of indoor units, advanced operating modes and ease of installation and service, the V8 series meets the needs of architects, designers and builders. With these solutions, the HVAC of the future becomes a reality today.

For more information, visit the company's {tag:Manufacturer} page on the A&B portal.
