Pixel window

Take your pick in the world of OKNOPLAST products

When creating a house, we choose its elements with the utmost attention and care to every detail. The detail matters, and we at OKNOPLAST know this well. After all, you can only make a first impression once! Discover the rich palette of window colors, choose the perfect shade for your home and decorate your dream space with us.
Windows from OKNOPLAST Sp. z o.o. are a guarantee of warmth, excellent sound insulation, safety and elegant design.

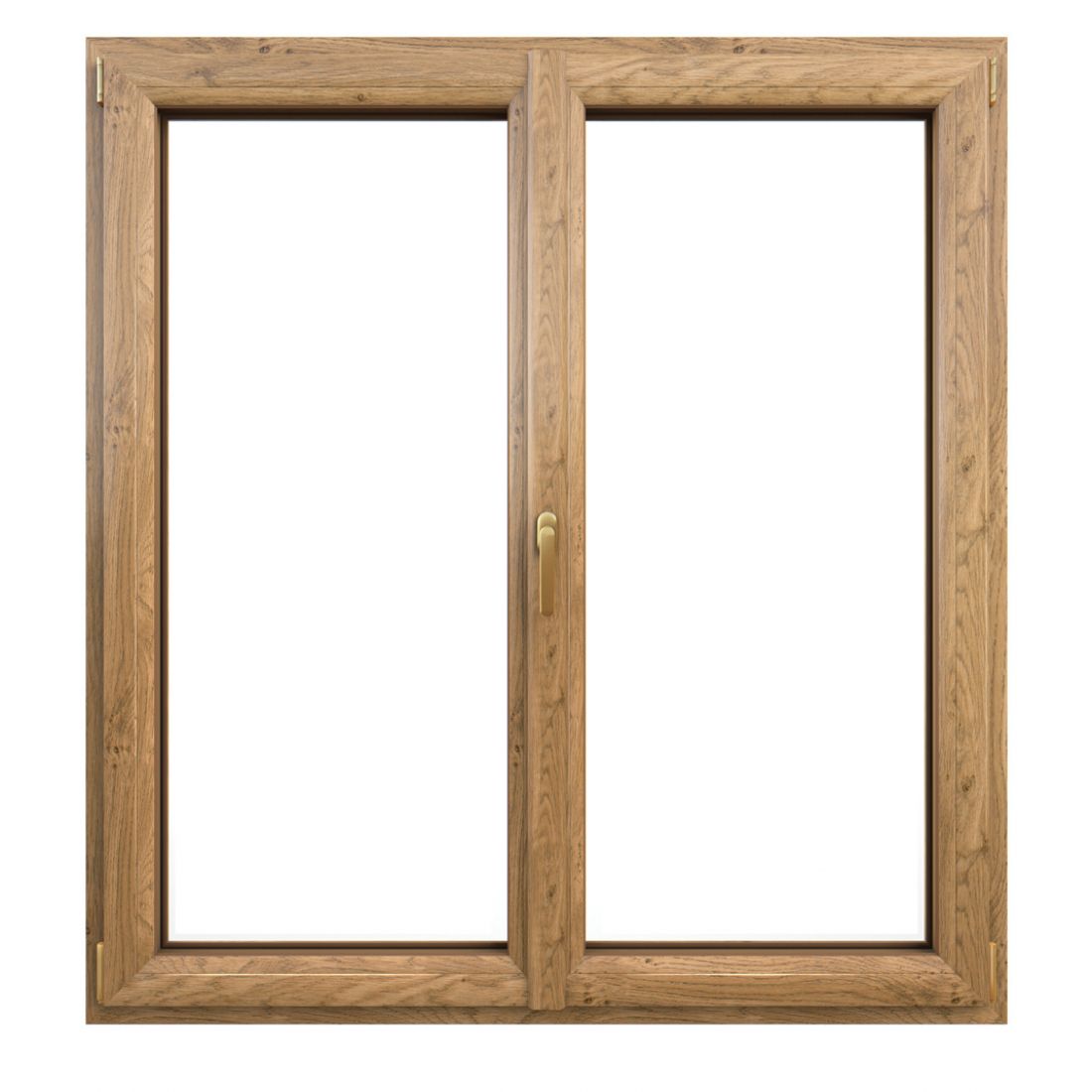

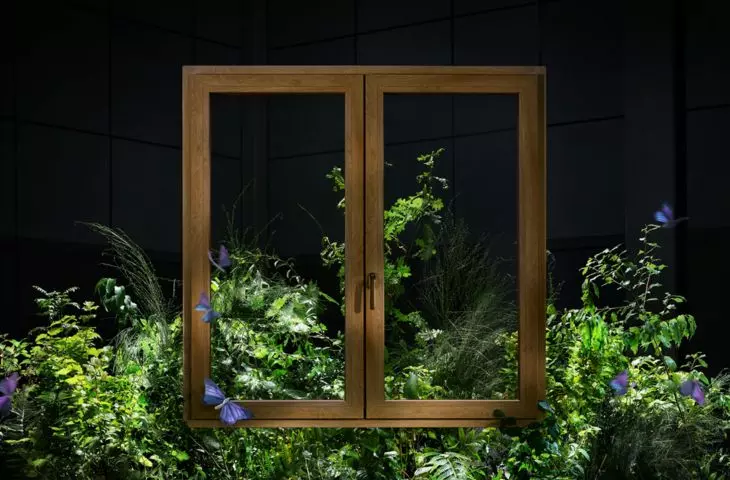

PRISMATIC - created for harmony

A modern window, which in its slim form, high functionality and advanced technologies, provides more warmth, unique design and high ecological properties.

_Uw=0,78 W/(m²K)*| Rw=36 dB**.

Proprietary modernist wing profile design.
5-chamber frame and sash profile with an installation depth of 76 mm (frame) and 80 mm (sash).
Middle gasket in the frame increases thermal and acoustic insulation.
FOUR Seasons tilt graduation (optional).
Perimeter ventilation effiAIR with RC2 security grade hardware (optional).

* For reference window with glazing with_Ug=0.5 W/(m²K) with Warmatec frame.
** For a reference window with 4TF/18/4/18/4TF glass.

PRISMATIC

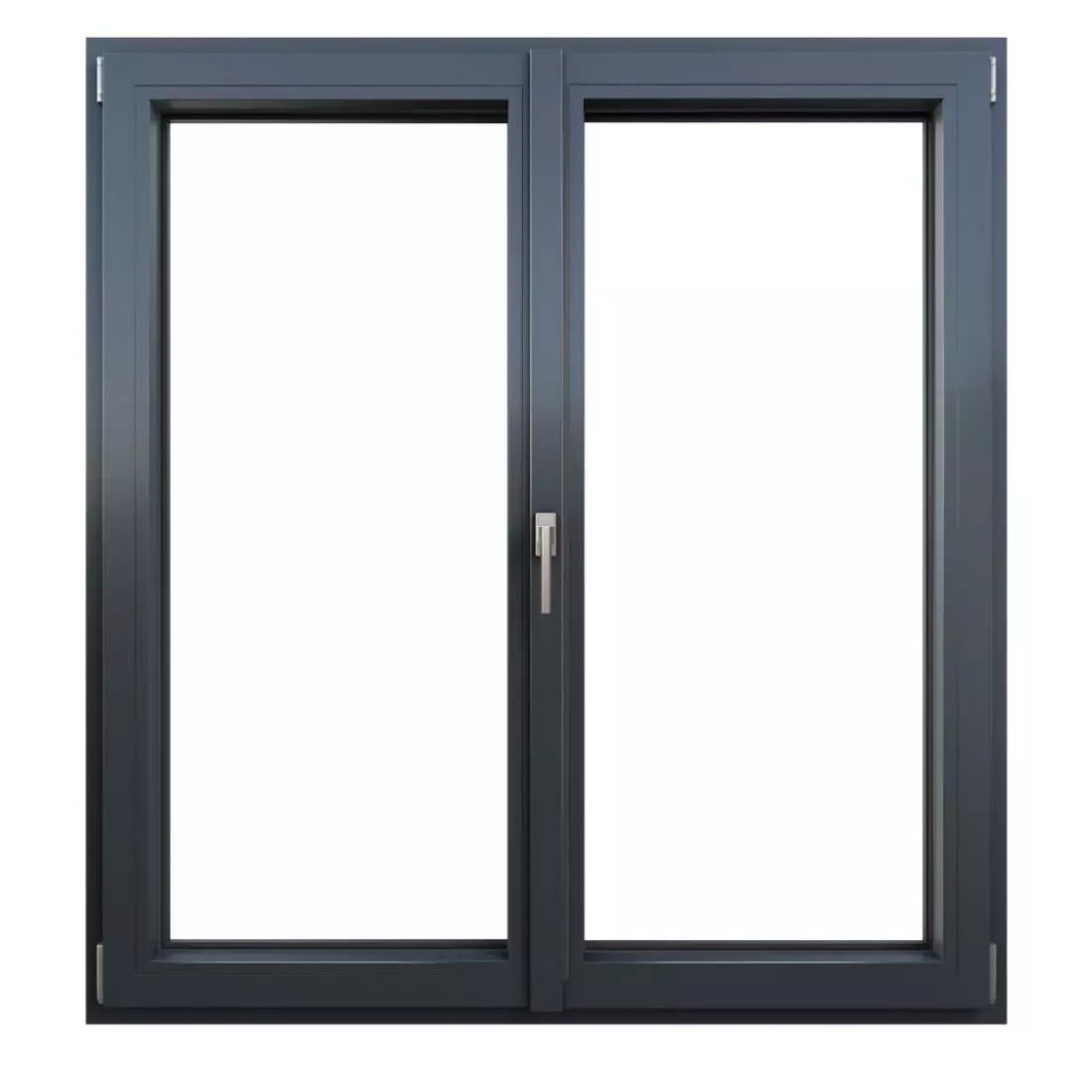

PIXEL - made for design

The perfect combination of elegance, modern aesthetics and innovative technology. Provides up to 22%* more light in the room.

_Uw=0.83 W/(m²K)** | Rw =36 dB***

Rectangular, sharply defined edges of profiles and glazing beads.
Narrow moving mullion with symmetrically placed handle (optional).
Sleek and elegant 6-chamber A-class frame and sash profiles with an installation depth of 74 mm.
FOUR Seasons tilt graduation (optional).
EffiAIR perimeter ventilation with RC2 security grade hardware (optional).
Optional 5 SMART OKNOPLAST control packages.

* Averaged value of glazing light gain for PIXEL window equipped with a movable mullion with a central handle compared to standard window solutions with a movable mullion.
** For a reference window with 4TFO/16/4/16/4TFO glass_Ug=0.5 W/(m²K) with Warmatec warm frame.
*** For the reference window with 4TFO/16/4/16/4TFO glazing.

PIXEL

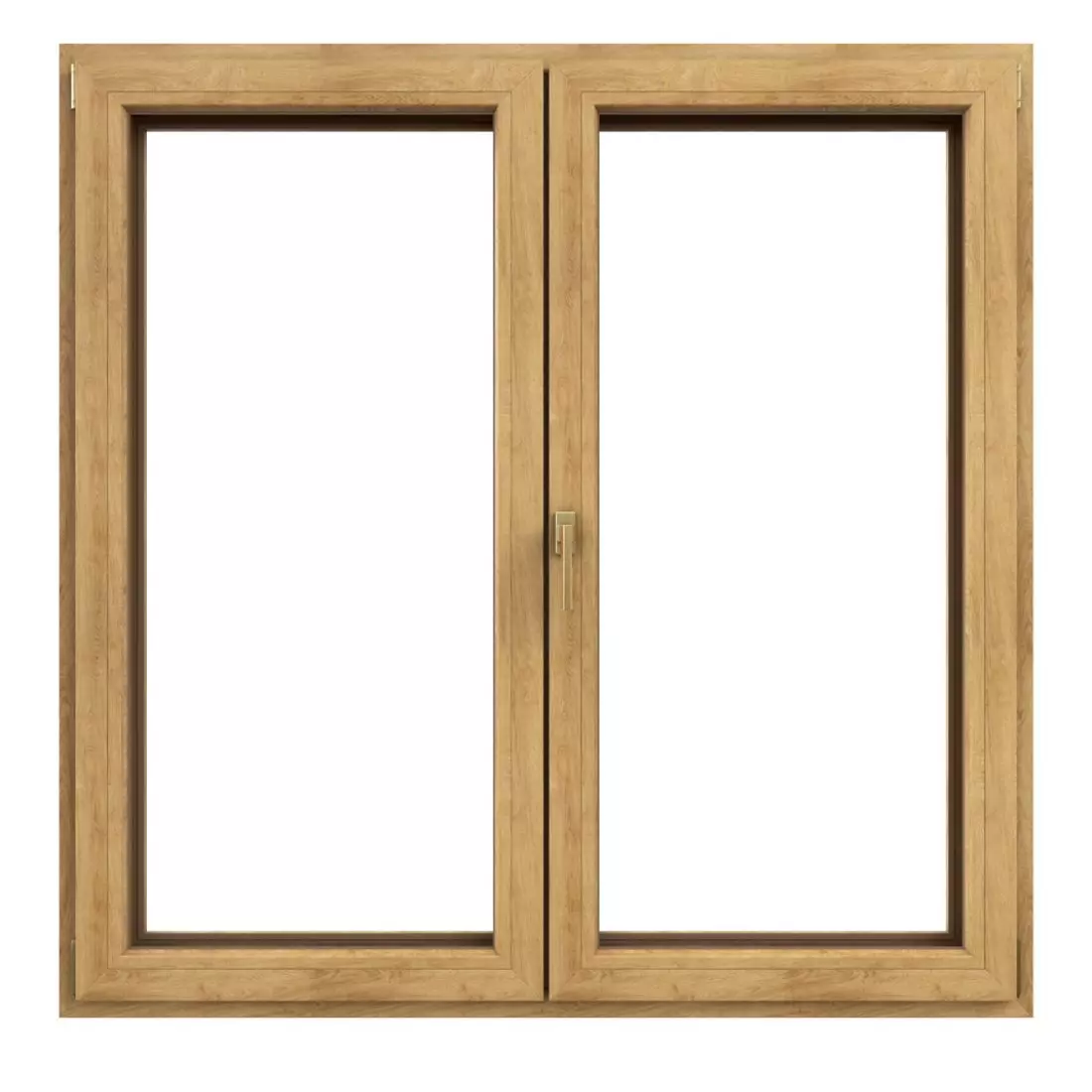

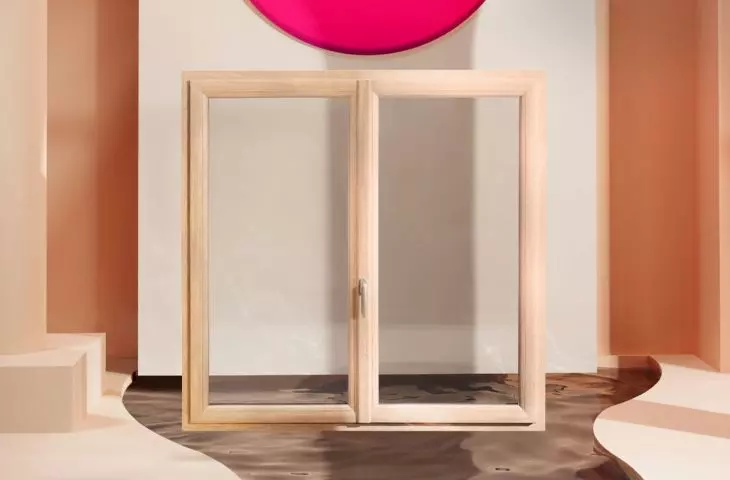

PROLUX - made for light

22%* more light than a standard PVC window. All thanks to the proprietary design of the PVC profile of the frame and sash and a larger area of glass.

_Uw = 0.97 W/(m²K)** | Rw = 35 dB***.

Sash and frame 6-chamber profiles with an installation depth of 70 mm.
Slimmer, more rounded sash profile.
Narrow moving mullion with symmetrically placed handle (optional).
FOUR Seasons tilt stepping (optional).
Optional 5 SMART OKNOPLAST control packages.
Perimeter ventilation effiAIR with hardware in security class RC2 (optional).

* Averaged value of glazing light gain in PROLUX window equipped with a moving mullion with a central handle compared to standard window solutions with a moving mullion.
** For a reference window with 4TF/12/4/12/4TF glass_Ug=0.7 W/(m²K) with Warmatec frame.
*** For reference window with 4TF/12/4/12/4TF glass.

PROLUX

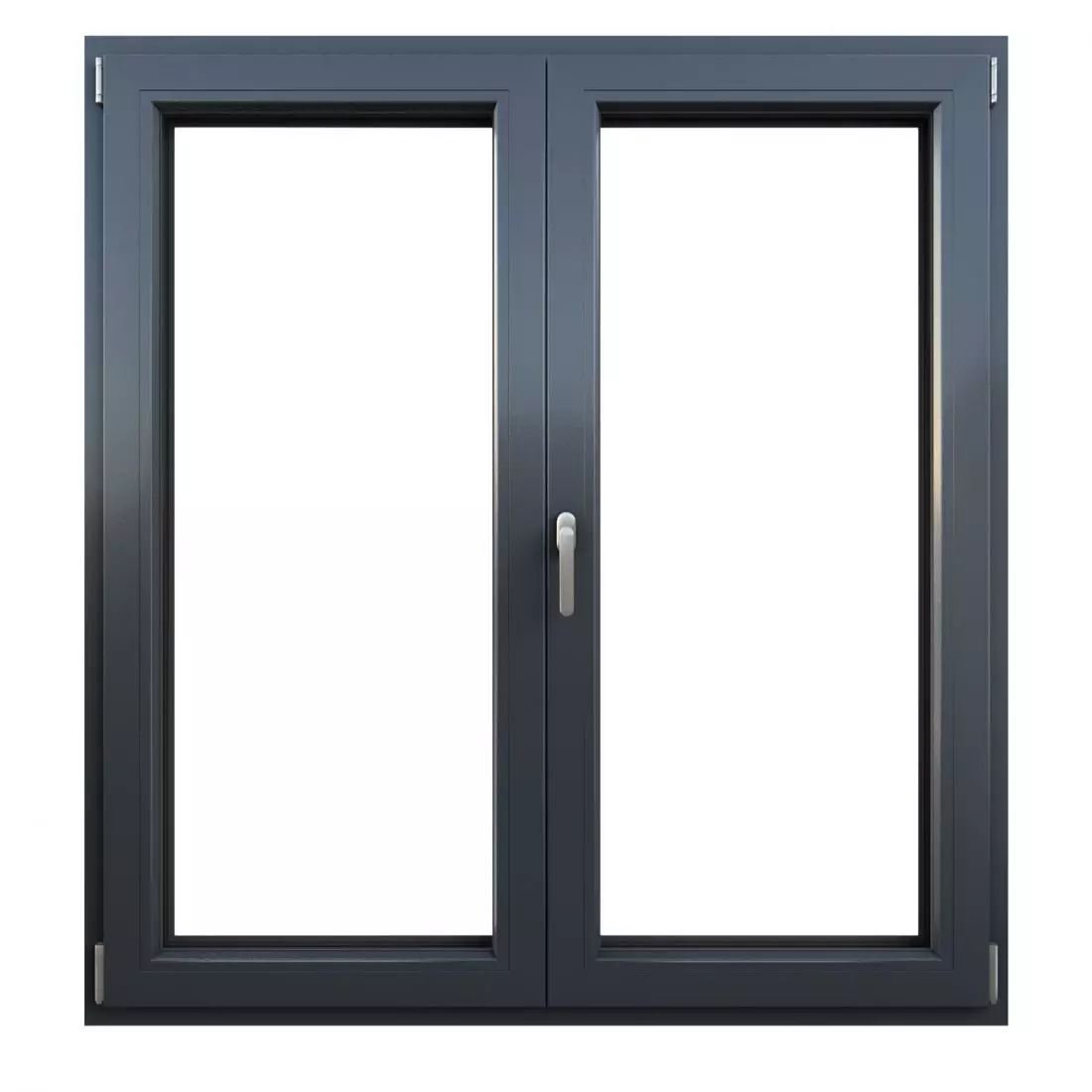

WINERGETIC PREMIUM PASSIVE - made for warmth

Thanks to additional thermal reinforcement and three-chamber glazing packages, they meet the requirements of passive buildings.

_Uw=0,57 W/(m²K)* | Rw=36 dB*

7-chamber frame and sash profiles with an installation depth of 82 mm.
OKNOPLAST's proprietary solution for passive houses with SpaceBlock double thermal reinforcement.
Center gasket in frame and sash.
Rounded from the outside proprietary profile shape.
FOUR Seasons tilt graduation (optional).
Perimeter ventilation effiAIR with hardware in security class RC2 (optional).

* For reference window with 4TFO/18Kr/4/16Kr/4TFO glass with_Ug=0.4 W/(m²K) with Warmatec frame.

WINERGETIC PREMIUM PASSIVE

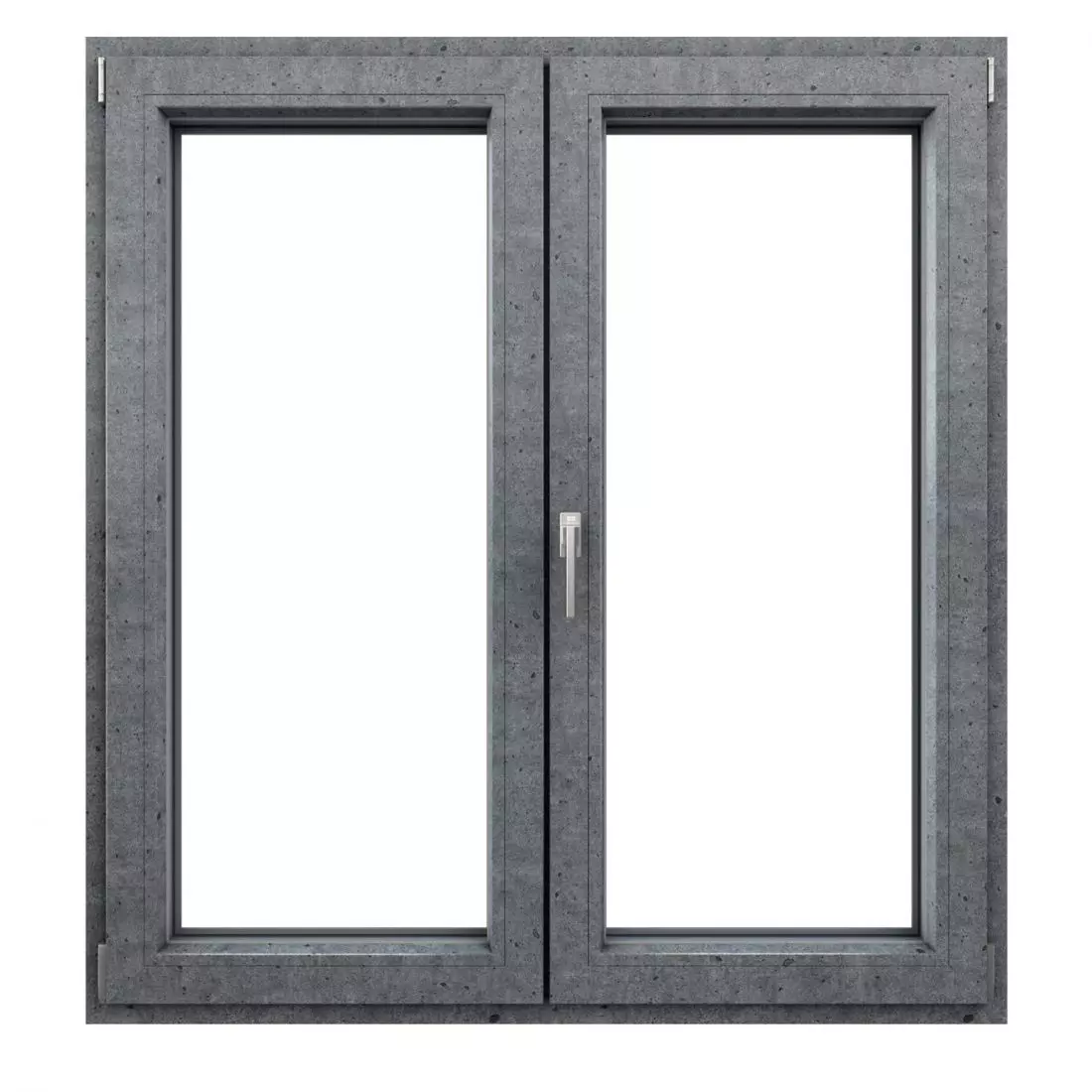

WINERGETIC PREMIUM - made for warmth

Protects your home from heat loss. Thanks to its subtle profile, it increases the aesthetics of the building's facade.

_Uw=0,76 W/(m²K)* | Rw=36 dB**.

7-chamber frame and sash profiles with an installation depth of 82 mm.
Rounded from the outside author's profile shape.
Center gasket in the frame.
FOUR Seasons tilt graduation (optional).
Optional 5 SMART OKNOPLAST control packages.
Perimeter ventilation effiAIR with hardware in security class RC2 (optional).

* For reference window with 4TF/18/4/18/4TF glazing_Ug=0.5 W/(m²K) with Warmatec frame.
** For a reference window with 4TF/18/4/18/4TF glass.

WINERGETIC PREMIUM

WINERGETIC STANDARD - made for warmth

Classic design and comfort of use. Reduced costs of heating the building thanks to low thermal energy losses.

_Uw=0,76 W/(m²K)* | Rw=36 dB**.

7-chamber frame profile and 6-chamber sash profile with an installation depth of 82 mm.
Classic, simple profile shape.
Center seal in the frame.
FOUR Seasons tilt graduation (optional).
Optional 5 SMART OKNOPLAST control packages.
Perimeter ventilation effiAIR with hardware in security class RC2 (optional).

* For reference window with 4TF/18/4/18/4TF glazing_Ug=0.5 W/(m²K) with Warmatec frame.
** For the reference window with 4TF/18/4/18/4TF glass.

WINERGETIC STANDARD

SLIDE - created for comfort

Sliding patio doors that provide easy and intuitive operation thanks to an innovative mechanism.

_Uw=0.802 W/(m²K)*

6-chamber frame profile with an installation depth of 140 mm, 4-chamber sash profile with an installation depth of 70 mm provide a wide range of application possibilities.
The maximum frame dimension in the opening scheme A is 3500×2500 mm.
Available window dimensions: from minimum height: 950 mm and a minimum width of 1570 mm.
Wide range of thickness of possible glazing packages, between 24 mm and 41 mm.

* For a reference door of 3500×2300 mm with a Warmatec framed glazing package with_Ug= 0.6W/(m²K).

SLIDE

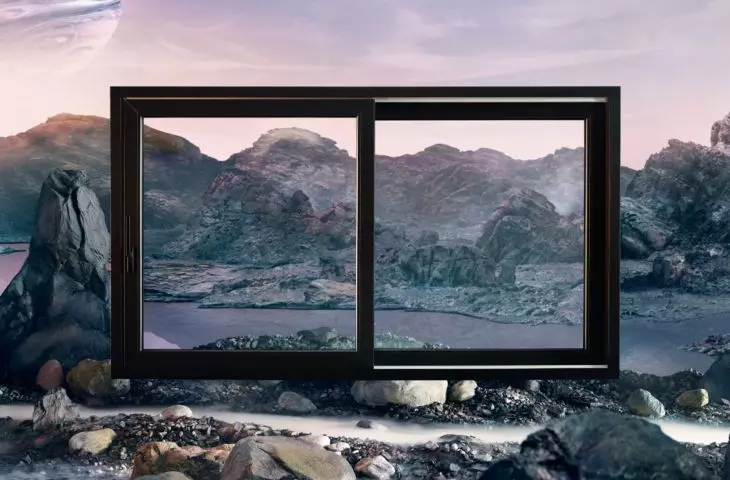

HST PREMIUM - made for space

The perfect combination of modernity, energy efficiency and security. A door created to eliminate architectural barriers, in line with the latest trends in space design.

_Uw=0,83 W/(m²K)**

5-chamber frame profile with an installation depth of 197 mm, 4-chamber sash profile with an installation depth of 85 mm.
Specialized hardware ensures that the sashes move freely and without resistance to each other or to the unopened parts of the structure.
Optional sash brake, low sash*.
Optional 5 SMART OKNOPLAST control packages.

* Low sash - reduced frame width in the fixed sash. A solution in line with the current trend of maximizing glazed areas.
** For structures with glazing with_Ug=0.5 W/(m²K) with Warmatec frame.
