Architectural facade systems and sandwich panels

01 of December '23

ARCHITECTONIC FACADE SYSTEMS AND WARSTING PLATES - Kingspan products are world-class, state-of-the-art building envelope systems that will meet your expectations.


This is a system based on aluminum coffers, which was developed for not only minimalist, but also complex, sophisticated facade designs. It combines ease and speed of installation with durability and very good technical parameters. The cassettes are made of 100% aluminum and retain their shape, structure and excellent appearance for years. In addition, thanks to a highly automated production line, each Dri-Design cassette is characterized by high quality and precision. All products in this series have achieved the A2-s1,d0 fire reaction class in accordance with EN13501-1. In addition, they are 100% recyclable.

The system is available in a wide range of colors, structural finishes, sizes and textures. Thanks to the different shapes of the coffers (Flat, Shadow, Tapered), it enables the creation of three-dimensional facades. Dri-Design Flat are flat elements and can be used interchangeably with Shadow and Tapered coffers. Each Shadow coffer can be designed with different depths relative to the facade face, creating rich texture or dynamic patterns on the building facade. Their use will add depth and character to any architectural project. Dri-Design Tapered coffers, on the other hand, can be tilted in different directions, with different depths and angles.

The ability to custom design each element allows you to create dynamic surfaces. In addition, perforations can be made on each coffer, as an additional and paid service. Thanks to the ability to change the size, density and location of perforations, Perforated type coffers allow the free play of light and shadow and the reproduction of any drawing or photo on the facade.

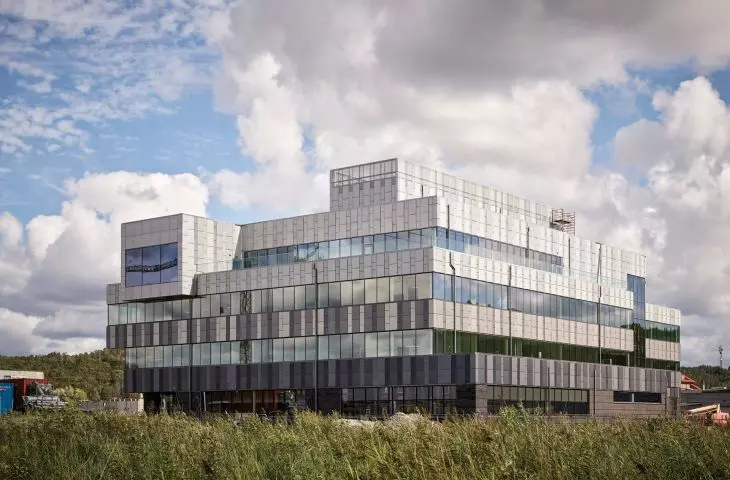

Dri-Design, Budynek biurowy i laboratoryjny Fujirebio GoCo w Mölndal (Szwecja)

Dri-Design, Fujirebio GoCo office and laboratory building in Mölndal, Sweden.

© Kingspan

Matrix and Evolution

These are unique modular systems that effectively combine structural, insulation and finishing functions in a single panel. The panels consist of two metal surfaces placed on either side of an insulating core. All internal parts are interconnected and form one cohesive element. Both have an integrated insulation core and a super-smooth surface.

Both systems feature an organic coating finish on a Spectrum alloy substrate (50 μm thick) as standard, with exceptional aesthetic qualities and guaranteed performance. Other finish variants, such as PES or PVDF, are available on request. Evolution and Matrix modular facade systems can be purchased in a wide range of RAL system colors, as well as custom colors offered by Kingspan.

Matrix panels are an advanced facade system with an integrated K-Roc® mineral wool insulation core. The Evolution system, on the other hand, is available in two insulation cores with QuadCore® and IPN. They can be installed vertically or horizontally, and can be easily combined with other Kingspan products for complete design freedom.

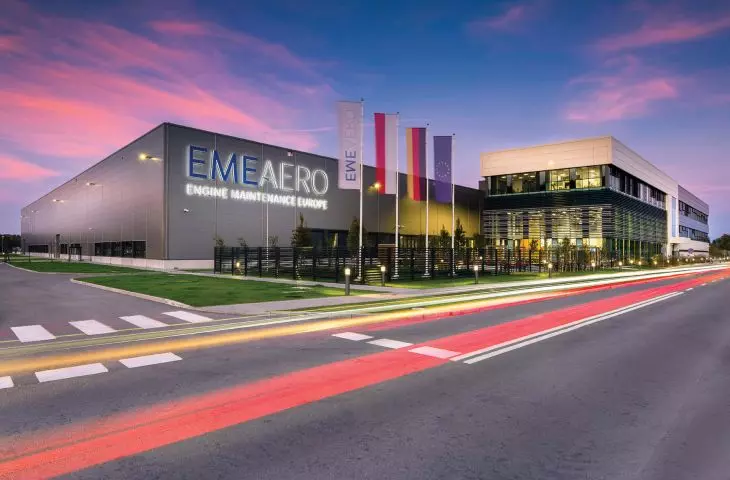

Matrix, Centrum serwisowe EME AERO w Jesionce (Polska)

Matrix, EME AERO service center in Jesionka, Poland.

© Kingspan


QuadCore® insulated sandwich panels characterized by a very good thermal insulation coefficient. Since recently, these panels are also available with increased air tightness - products from the Kingspan AIR line, allowing to achieve a very high level of air tightness of the entire building and meet the requirements of the relevant energy class, such as NF15. The use of QuadCore® AIR sandwich panels also makes it possible to significantly reduce a building's utility costs and its operational carbon footprint.

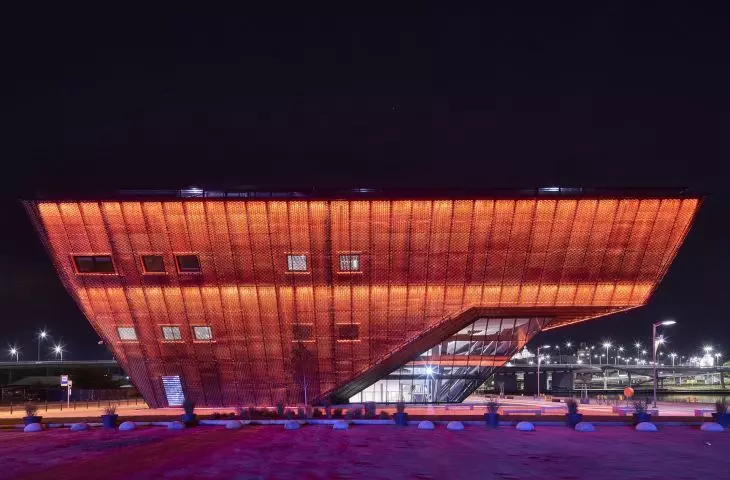

KS RF, Morskie Centrum Nauki w Szczecinie (Polska)

KS RF, Maritime Science Center in Szczecin, Poland.

© Kingspan

X-dek™ roof panels

X-dek™ roof sandwich panels are designed primarily for flat roofs with large support spacing and slopes as low as 1%. X-dek™ panels are lightweight, ready to be installed as soon as they are delivered to the construction site on spans of up to 6 m or more, which, combined with highly efficient QuadCore® insulation, reduces building operating costs and CO₂ emissions.

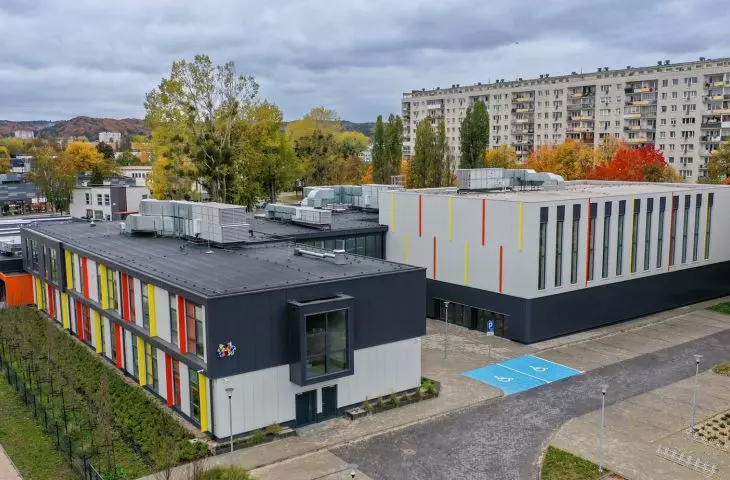

Karrier BK, X-dek™, Podstawowa Szkoła Społeczna „Niedźwiednik” w Gdańsku (Polska)

Karrier BK, X-dek™, Elementary Social School "Niedźwiednik" in Gdansk, Poland.

© Kingspan

Kingspan Planet Passionate - on the road to global change

In an effort to combat ongoing climate change and environmental degradation, Kingspan developed and began implementing its 10-year global sustainability strategy in 2020. A series of changes and improvements implemented under four spheres of interest have been introduced at all Kingspan Group sites:

  • Energy: aiming for net zero energy consumption, increasing the share of renewable energy across the Group to 60%, installing state-of-the-art photovoltaic systems,

  • CO₂ emissions: zero CO₂ emissions by 2030, reducing emissions associated with the delivery of our products by 50% by 2030, zero-emission company fleet by 2025,

  • Recycling: 1 billion PET bottles recycled in our manufacturing processes, zero-waste manufacturing processes by 2030,

  • Water: 5 active ocean cleanup processes by 2025, 100 million liters of rainwater collected by 2030.

At Kingspan, we believe that by implementing these commitments we will be able to improve the environment and minimize the impact of our plants on their surroundings.

For more information, visit the company's {tag:Manufacturer} page on the PdA portal.
