Working simultaneously in plan and 3D space? That's what ZWCAD Architecture 2021 offers.

01 of February '21

Programs and applications for the architect - overview 2021

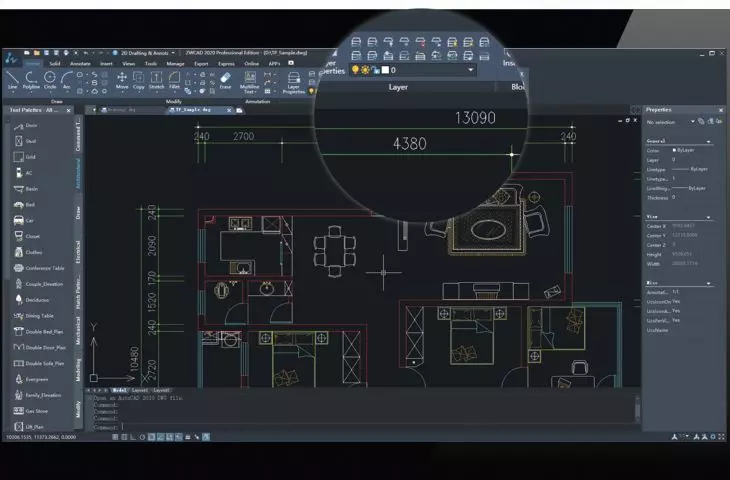

ZWCAD Architecture 2021 is a version of the program dedicated to the architectural industry, it includes the functionality of ZWCAD 2021 Professional version and enrichment in the form of dedicated tools and libraries. The program, through work automation tools, significantly speeds up design, especially at the conceptual stage, when changes to the project are most numerous.

© ZWCAD

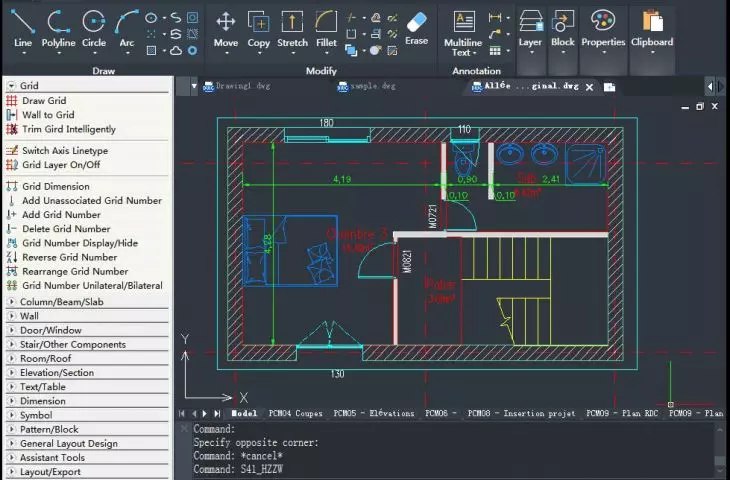

Starting work, we define the number of floors of the designed object and set the axes, then determine the cross-section of walls, foundations and ceilings - we draw the outline of the building structure. Using the staircase generator, we determine their flights. Drawing from libraries, we insert ready blocks of window and door carpentry, and finally we create the roof slope with the help of the wizard. The program, taking the geometry of the objects of the drawn projection, generates a 3D model, and on its basis, further projections, sections and elevations. The design concept is ready, now consultation with the Investor and changes - an inherent twist in the design process.

In ZWCAD Architecture 2021, design revisions are a pleasure. Composite dimensioning follows changes made in the plan or elevation. The program's structure is parametric, so all changes are automated and greatly reduce drafting time. At the technical design stage, ZWCAD Architecture 2021 makes work easier with tools such as creating lists of windows and doors and generating area lists of rooms. You can also use a library of architectural symbols and a database of architectural dimensioning, describing projections or sections.

© ZWCAD

Users of older versions of ZWCAD Architecture will encounter the following new features in the 2021 version:

  • The ability to set the transparency of objects in properties or for the entire layer - a useful feature when creating a Land Development Project or Local Area Plans to illustrate even more diversity of data in a specific area.
  • XRefs Manager - a window for managing all DWG, DXF, PDF, JPG, etc. type underlays.
  • Formulas in table - for creating additional tabular statements, we have the ability to add mathematical formulas in the table da calculate sum, difference, etc.
  • Support for 4K monitors - possible to work on high resolution monitors.


For more information, visit the ZWCAD Opportunity page on the A&B portal, as well as https://www.zwcad.pl and https://www.programy-cad.pl
